Cirris CH2 - EBox Required Parts and Setup

Energization Box 51

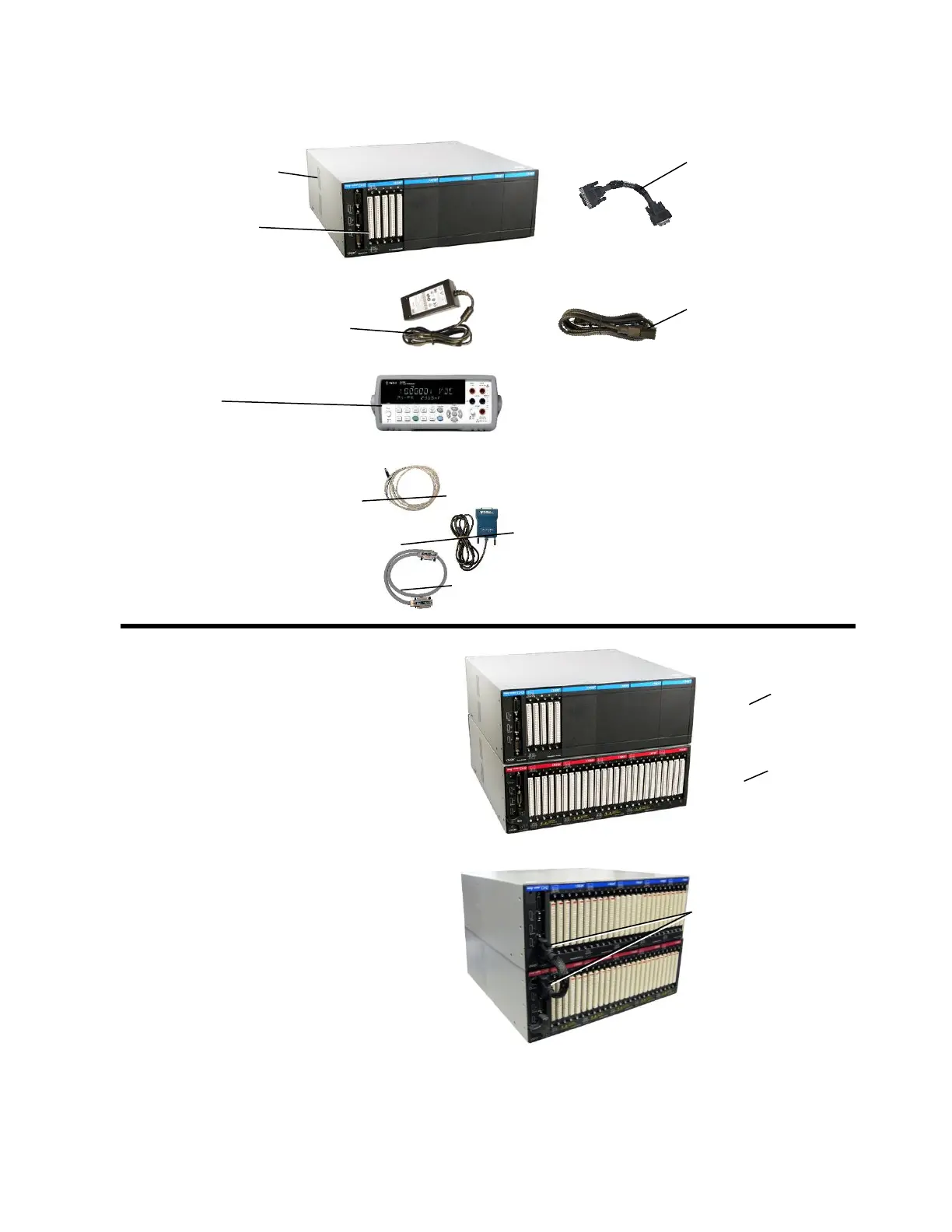

Required Parts
Set Up
1. Put the CH2 EBox on top of the
CH2 Base, ensuring that each side
is aligned.
2. Attach the CH2 Base to the CH2
EBox using the box-to-box cable.
 One or more EBox
chassis loaded with
the number of 160
point E-modules
that you ordered.
 One “Box to Box Cable”
per EBox Chassis
 One Power Cable
per EBox Chassis
 The Fixed Voltage Power
Supplies you ordered (optional)
OR
Variable Power Supplies
(optional).
EBox
IN and OUT connectors
CH2 base
Note: The extension cables
come in 3 lengths: ½ meter,
1 meter, and 2 meters.
Required Parts for Variable
Power Supplies include:
• One External EBox Cable
per power supply
• One GPIB Converter cable
or RS-232 Serial Cable
• One extension cable per
additional power supply
