Cirris CH2 - Required Parts for External Instruments; Attaching External Instruments to CH2

Energization Box 44
External instruments have their own custom categories and instructions. The examples below
display the currently supported instruments.
Supported Keithley Instruments
Keithley 2400
Keithley 2400LV
Keithley 2410
Keithley 2420
Keithley 2425
Keithley 2430
Keithley 2440
Keithley 2450
Keithley 6487
Supported Keysight Instruments
Keysight E4980
Supported Agilent Instruments
Agilent 34401
Agilent 34410
Agilent 34411
Agilent 34420
Agilent 34450
Agilent 34460
Agilent 34461
Agilent U3401
Agilent U3402
Agilent 3645
Agilent 4263

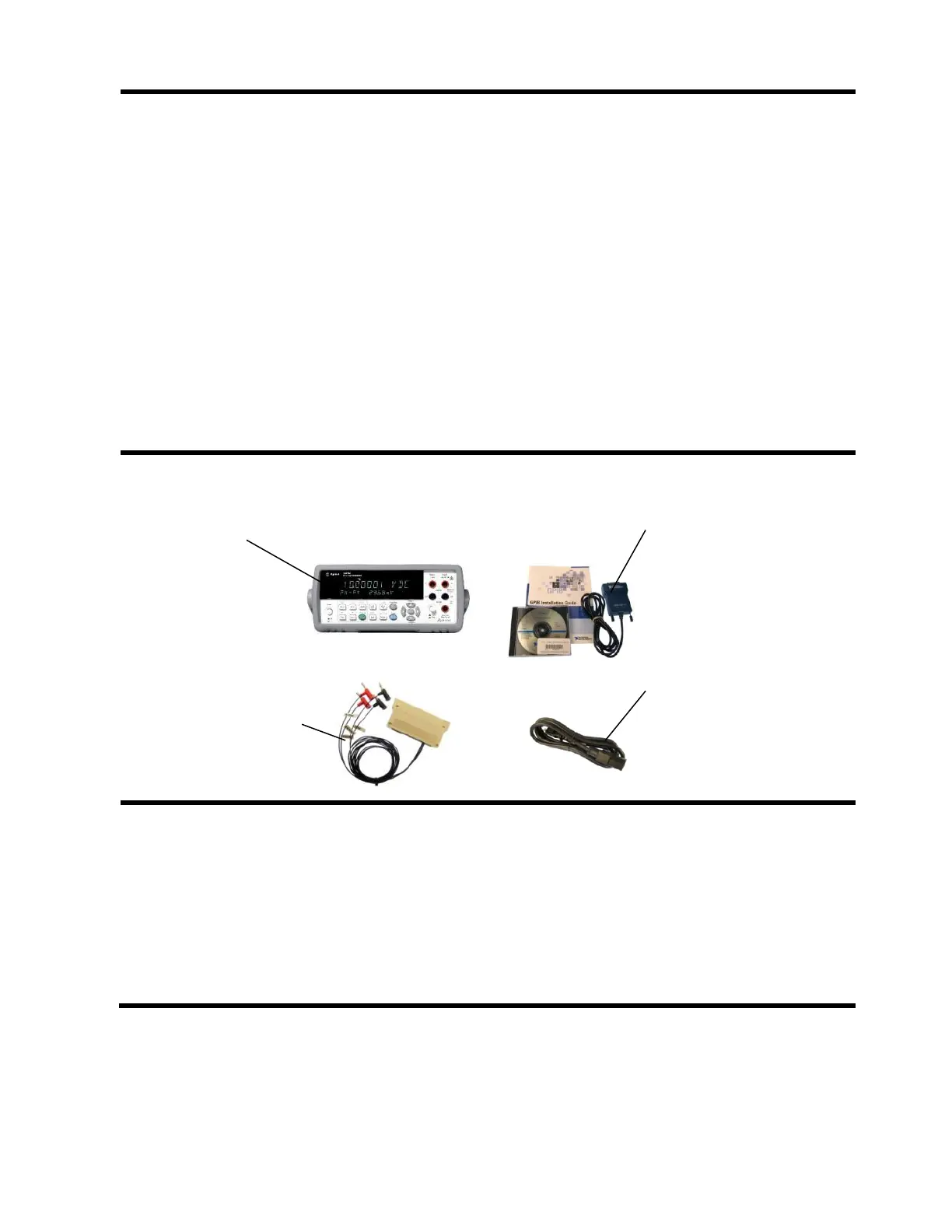

Required Parts for Measuring Devices
Attaching External Instruments
You can expand connections in a test by attaching multiple external instruments. The required
cable for attaching external instruments is a GPIB Interface Converter. If you are only
attaching one external instrument, you can attach the external instrument using an RS-232
Serial cable instead of a GPIB Converter, which is a less expensive option. However, for
maximum capability, Cirris recommends using a GPIB Converter. GPIB Interface Converters
can be purchased from National Instruments (ni.com). RS-232 Serial Cables can be
purchased from any computer supply company.
 A GPIB Converter or
RS-232 Serial Cable
(see “Attaching External
Instruments below)
 An External
Instrument Interface
Cable (from Cirris)
 The external
instrument
 A Power Cable
(comes with instrument)
