Wiring the Interlock Safety Switches
The safety switch signals can be wired to single pole or double pole switches. Choose the
diagram below that matches your switch type and wire the switch as shown. If you are not
using Cirris safety switches, assure that your safety switch has normally open contacts. When
the operator wants to prevent hipot, the switch contacts must be open. To allow hipot, the
switch contacts must be closed. If the contacts open during a hipot test, the test will abort.

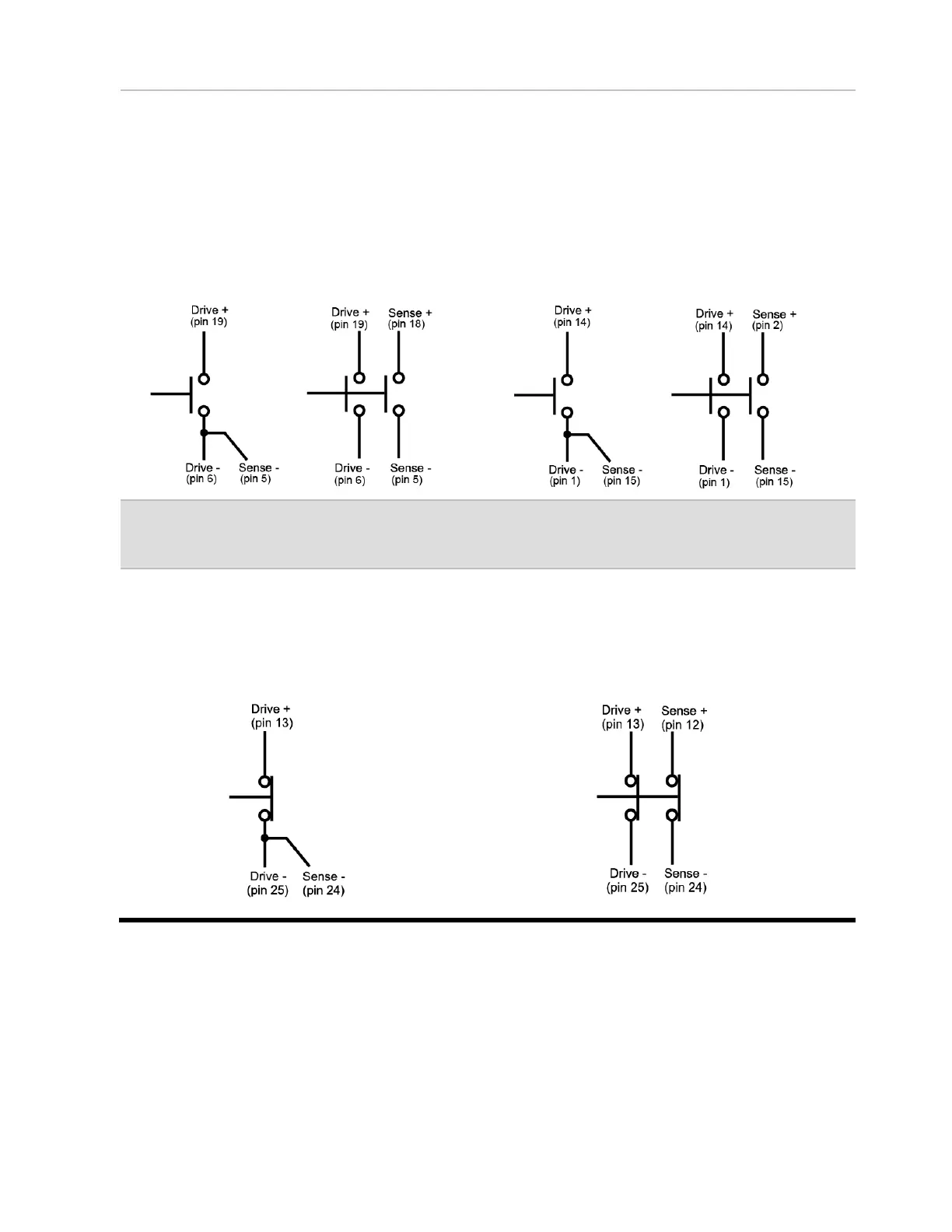

Wire Interlock Safety Switch 1 like this:
Wire Interlock Safety Switch 2 like this:
Note: If you have a double pole interlock device that requires only one switch, connect the
unused Drive + to the unused Drive - and the unused Sense + to the unused Sense -.
Wiring the Emergency Shutoff Switch
Wire the pins to the emergency switch using one of the following diagrams. To allow hipot, the
e-stop switch contacts must be closed. To abort hipot, the contacts must be open.
Wire a Single Pole emergency shutoff switch
like this:
Wire a Double Pole emergency shutoff switch
like this:
