Cisco 8851 Guide

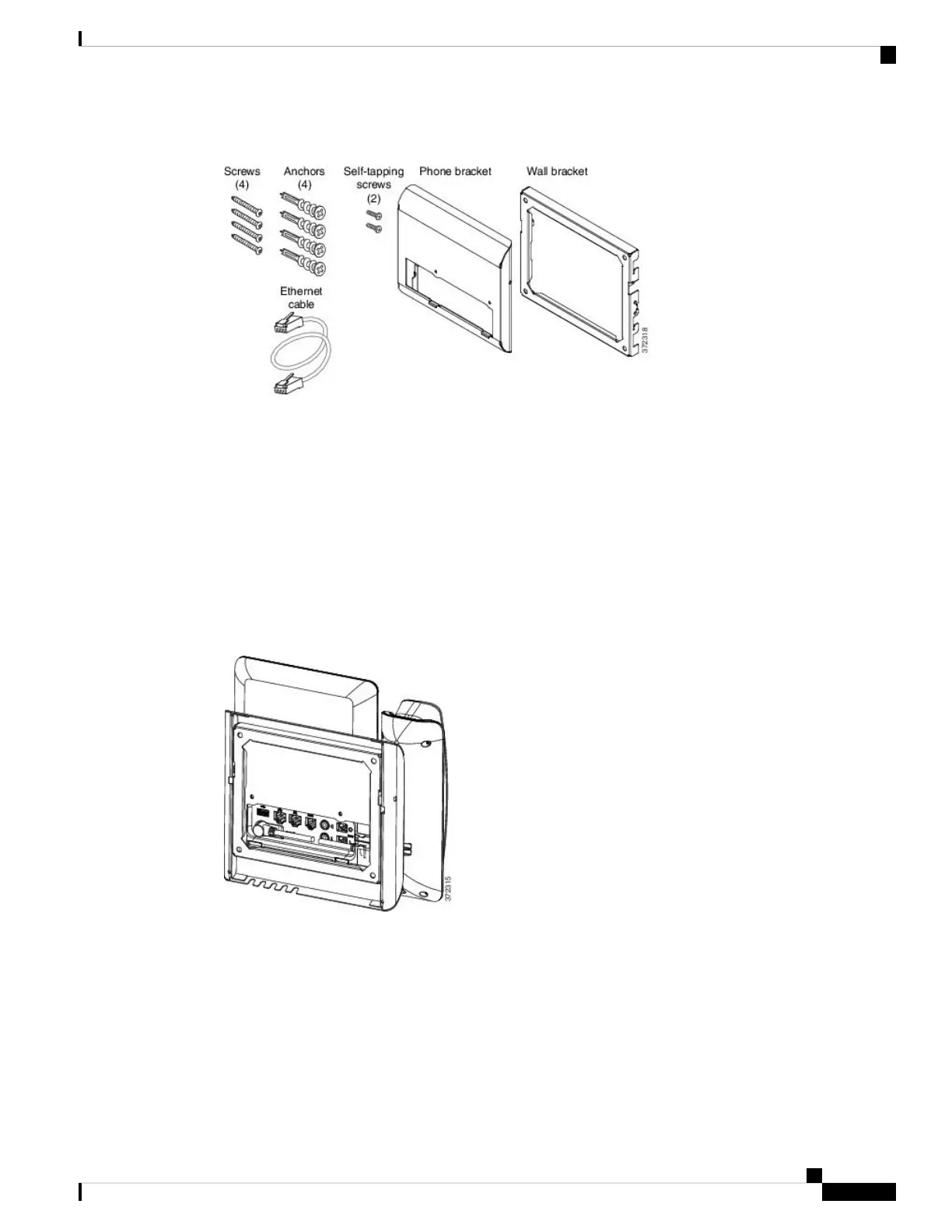

Figure 8: Components
The package contains the following items:
• One phone bracket
• One wall bracket
• Four #8-18 x 1.25-inch Phillips-head screws with four anchors
• Two K30x8mm self-tapping screws
• One 6-inch Ethernet cable
The following figure shows the wall mount kit installed on the phone.
Figure 9: Back view of Wall Mount Kit Installed on Phone
The following figure shows the phone with the wall mount kit from the side.
Cisco IP Phone 8800 Series Multiplatform Phone Administration Guide for Release 11.3(1) and Later
493
Cisco IP Phone Accessories
Cisco IP Phone Accessories

Cisco 8851 Specifications

General

Resolution	800 x 480 pixels
Network Interfaces	Dual Gigabit Ethernet ports
Headset Port	Yes
Audio	Wideband audio
Ethernet	10/100/1000 Mbps
USB	Yes, USB 2.0
Power	IEEE 802.3af/at Power over Ethernet (PoE)
Protocols	SIP
PoE	Yes
Codec Support	G.711, G.722, G.729, iLBC
Headset Connector	RJ9
Lines	Up to 5 lines
Dimensions	229 x 256 x 41 mm (excluding foot stand)
Weight	1.2 kg
