Connecting
CRICOS No. 00114A
Phone Connections for Cisco Unified IP Phone 9971

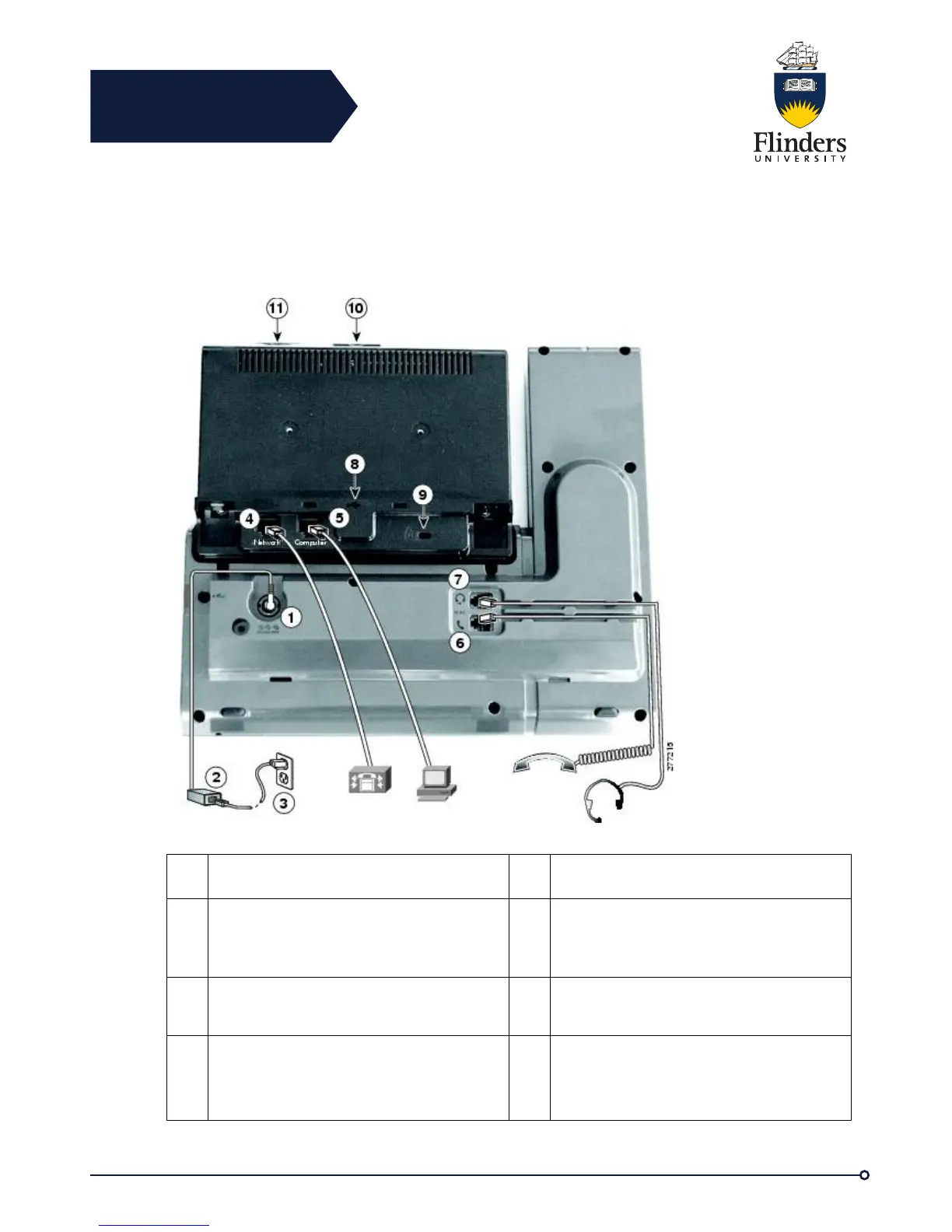

Connect your phone to the Flinders IP telephony network, using the following
diagram.
1
DC adapter port (DC48V)
7
Analog headset connection (optional)
2
AC-to-DC power supply (optional for the
network port connection but required for
a Wi-Fi connection)
8
USB port
3
AC power wall plug (optional)
9
Anti-theft security lock connector (lock
optional)
4
Network port (10/100/1000 SW) with
IEEE 802.3af and 802.3at power
enabled
10
Camera pin holes (for Cisco Unified
Video Camera)

Cisco 9971 Specifications

General

Resolution	640 x 480 pixels
Programmable Line Keys	5
Protocols	SIP, SCCP
Wi-Fi	802.11a/b/g
Weight	3.5 lbs
Display	5-inch color LCD
Audio	Wideband audio, G.722 codec support
USB Ports	2 x USB 2.0
Ethernet Ports	2
PoE	Yes (802.3af)
Video	H.264
Network Interfaces	10/100/1000 Ethernet
Codecs	G.711, G.722, G.729a, G.729ab, iLBC
Power Options	PoE
Headset Port	Dedicated headset port
Speakerphone	Full-duplex speakerphone
