Chapter 4 Cisco ASR 1006 Router Overview and Installation
Equipment Shelf or Tabletop Installation
Step 5 Obtain the two cable-management brackets and screws shipped with your chassis. Figure 4-4 shows
attached cable-management brackets on the front of the Cisco ASR 1006 Router. when the chassis is
placed on a table top or equipment shelf.
Note Make certain that the cable-management ‘U’ feature device has the open end pointing upwards
when you attach it to the chassis

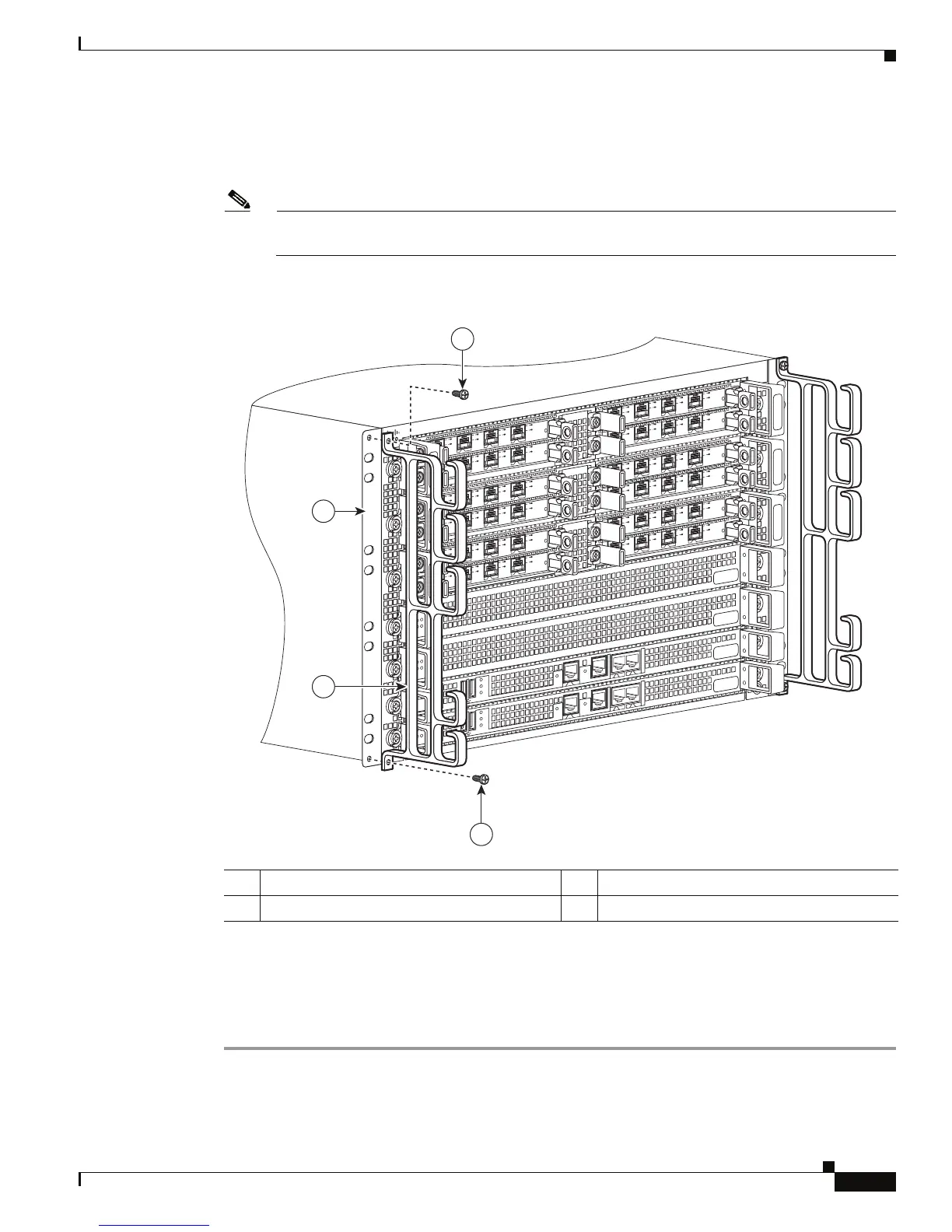

Figure 4-4 Attaching the Cable-Management Brackets to the Cisco ASR 1006 Router
Step 6 Screw the cable-management bracket to each side of the rack-mount brackets already attached to the
chassis. Use two screws for each cable-management bracket. Use the package of four screws.
Step 7 Check that all screws are securely tightened.
Step 8 Go to the “Attaching a Chassis Ground Connection” section on page 4-17 to continue the installation.
1 Cable-management screws 3 Chassis front rack-mount bracket
2 Cable-management bracket
280036
