Chapter 5 Cisco ASR 1004 Router Overview and Installation
Connecting Power to Cisco ASR 1004 Router

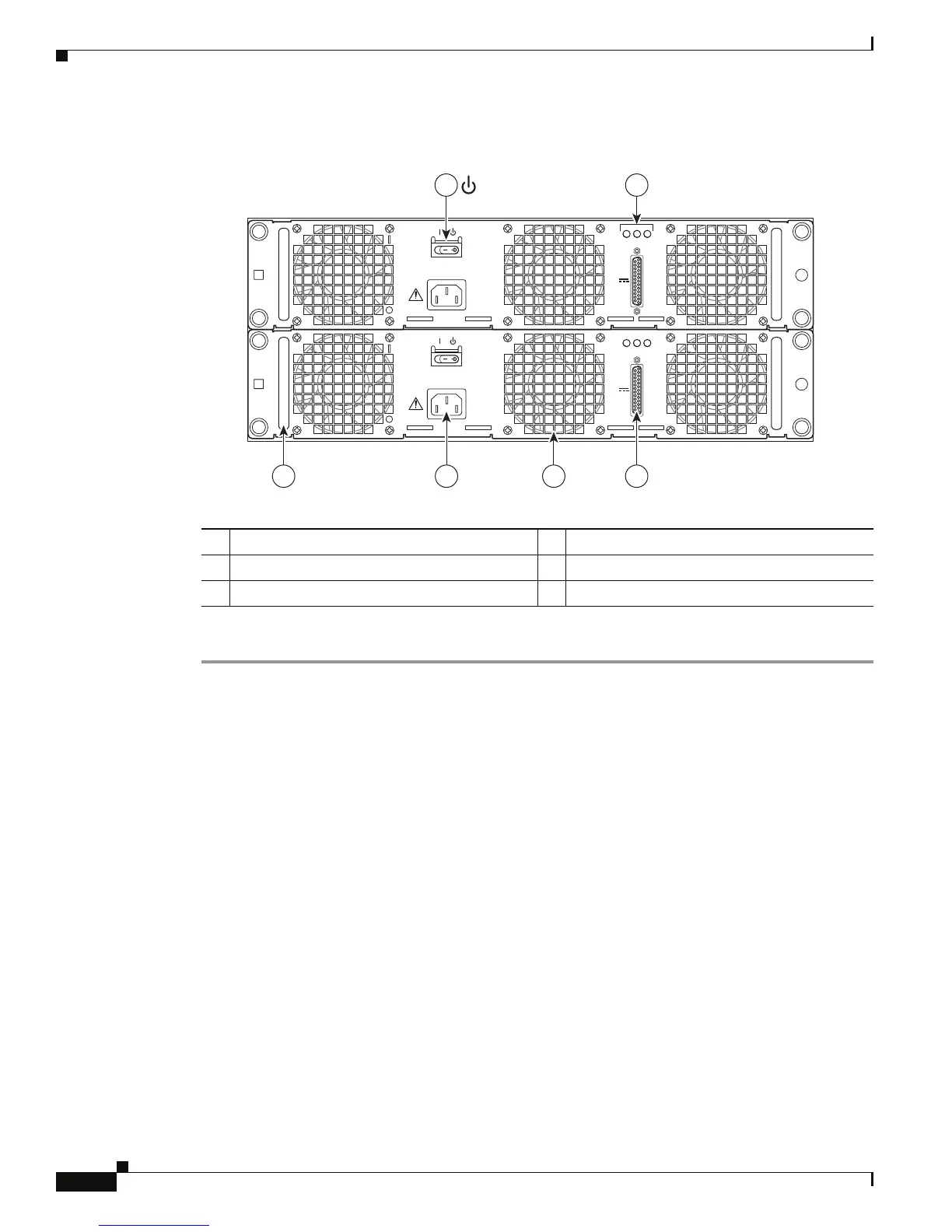

Figure 5-16 Cisco ASR 1004 Router AC Power Supply
Step 5 Turn the power supply switch to On (|) position.
This completes the procedure for connecting AC-input power.
Connecting DC-Input Power to Cisco ASR 1004 Router
This section describes how to connect the DC power supply in the Cisco ASR 1004 Router.
1 AC power supply Standby switch 4 AC power supply fan
2 AC power supply LEDs 5 AC power inlet
3 DB-25 alarm connector 6 AC power supply handle
280184
OUTPUT INPUT
FAIL
OK OK
FAN
100V-240V~ 12A-5A
50-60Hz
ALARMS
60V
1A MAX
OUTPUT INPUT
FAIL
OK OK
FAN
100V-240V~ 12A-5A
50-60Hz
ALARMS
60V
1A MAX
1 2
34
6
5

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
