Cisco ASR 1000 Series Installation And Configuration Guide

8-17
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation and Initial Configuration Guide
OL-13208-03
Chapter 8 Replacing Cisco ASR 1000 Series Routers Field-Replaceable Units
Removing and Replacing the Cisco ASR 1000 Series Embedded Service Processors

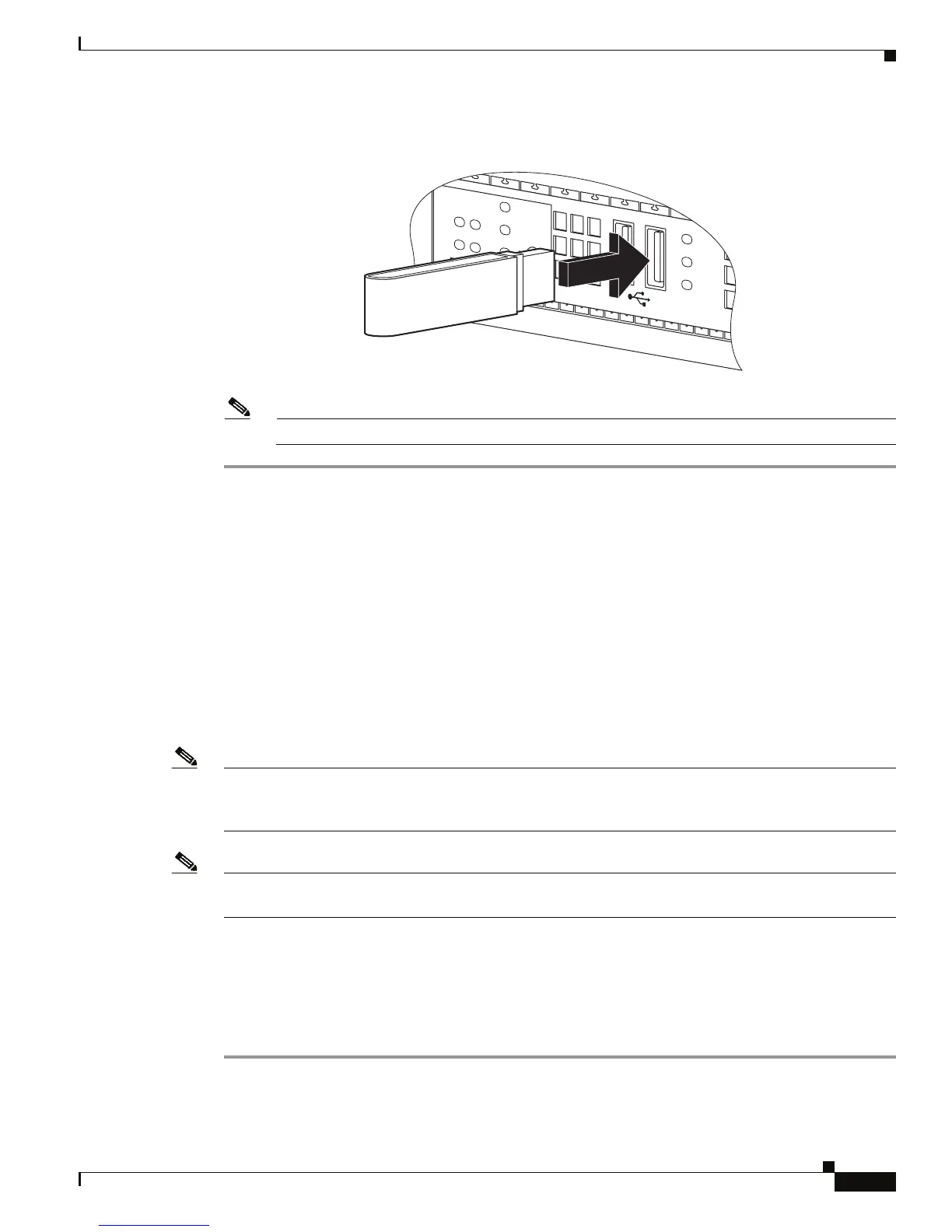

Figure 8-14 Cisco ASR 1000 Series Route Processor 1 Flash Token Memory Stick
Note You can insert or remove the memory stick whether the router is powered on or not.
This completes the USB Flash memory installation procedure.
Removing and Replacing the Cisco ASR 1000 Series Embedded
Service Processors
The following sections describe the procedures for replacing a Cisco ASR 1000 Series Embedded
Service Processors (Cisco ASR1000-ESP5, Cisco ASR1000-ESP10, or Cisco ASR1000-ESP20) in your
system. The module also contains card handles to assist in insertion and removal of the module and
retention of the module into the chassis. The Cisco ASR 1000 Series Embedded Services Processors
have no front panel I/O connectors.
Note The Cisco ASR 1000 Series Embedded Services Processor is a field-replaceable unit in the Cisco ASR
1002 Router and the Cisco
ASR 1002 Router supports only the Cisco ASR1000-ESP5 and Cisco
ASR1000-ESP10, not the Cisco ASR1000-ESP20.
Note Before beginning the procedure, verify that your system meets the minimum requirements as described
in Chapter 2, “Cisco ASR 1000 Series Routers Components.”
Removing a Cisco ASR1000-ESP
To remove the Cisco ASR1000-ESP5, Cisco ASR1000-ESP10, or Cisco ASR1000-ESP20 from the
Cisco ASR 1000 Series Routers, follow this procedure:
Step 1 Slip on the ESD-preventative wrist strap that was included in the accessory kit. Loosen the captive
screws on the Cisco ASR 1000 Series Embedded Services Processor.
01
DISK
BF
USB
HD
MIN
ACO
MAJ
STBY
ACTV
STAT
ASR1000-RP1
PWR
CRIT
280382
