Cisco ASR 1000 Series Installation And Configuration Guide

6-5
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation and Initial Configuration Guide
OL-13208-03
Chapter 6 Cisco ASR 1002 Router Overview and Installation
Cisco ASR 1002 Router Description
• Only supports three removable half-height SPAs on Bay 1, 2, and 3. The fourth SPA is a built-in
4xGE SPA on Bay 0, which is located on the Cisco embedded ASR1000-RP1.
• Is not a field-replaceable unit (FRU) and does not support online insertion and removal (OIR).
Note The shared port adapters (SPAs) on the Cisco embedded ASR1000-SIP10 in the Cisco
ASR 1002 Router do support online insertion and removal.
The Cisco ASR1002 Router embedded ASR1000-RP1 also provides the circuitry for the built-in 4xGE
SPA. Some configurations of the Cisco ASR1002 Router will not populate the built-in 4xGE SPA and
will have only three SPA bays available for interface cards.
Cisco ASR1000-ESP5 or ASR1000-ESP10 Description
The Cisco ASR 1002 Router supports the Cisco ASR1000-ESP5 or Cisco ASR1000-ESP10 embedded
services processors. The Cisco ASR 1002 does not support the Cisco ASR1000-ESP20.

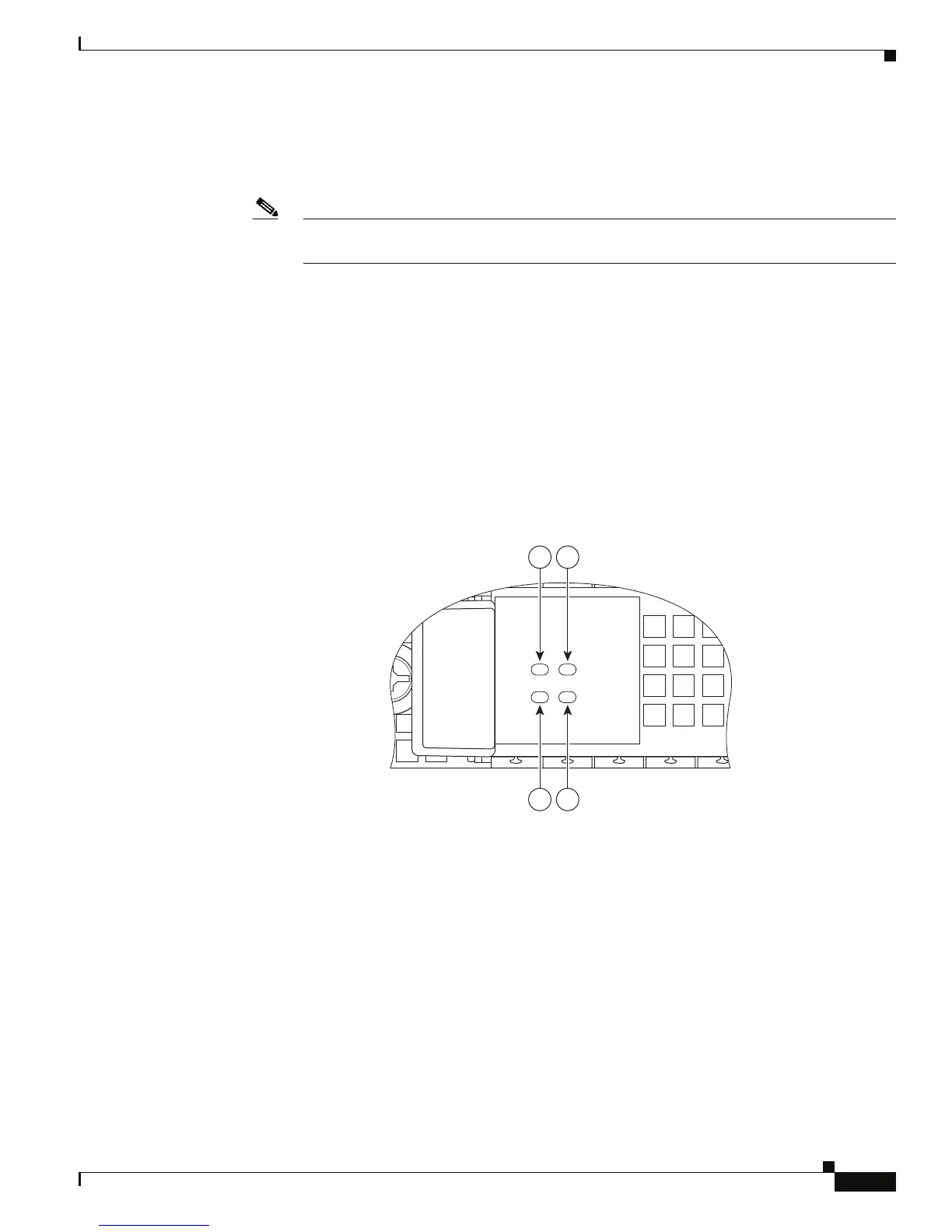

Figure 6-4 shows the Cisco ASR1000-ESP10 faceplate.
Figure 6-4 Cisco ASR1000-ESP10 LEDs
STBY
ACTV
STAT
ASR1000-ESP10
PWR
280080
4
3
2
1
