Cisco ASR 1000 Series Installation And Configuration Guide

8-15
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation and Initial Configuration Guide
OL-13208-03
Chapter 8 Replacing Cisco ASR 1000 Series Routers Field-Replaceable Units
Removing and Replacing the 1GB USB Flash Token Memory Stick
j. Align the replacement eUSB device over the connector and standoff. The device fits over the
threaded post that sticks up off the board and accepts a screw to hold the eUSB firmly to the Cisco
ASR 1000
RP1 board.
k. Gently insert the new eUSB device by pressing it into the connector keeping aligned with the
standoff and secure the eUSB device with the small Phillips screw as displayed in
Figure 8-12.

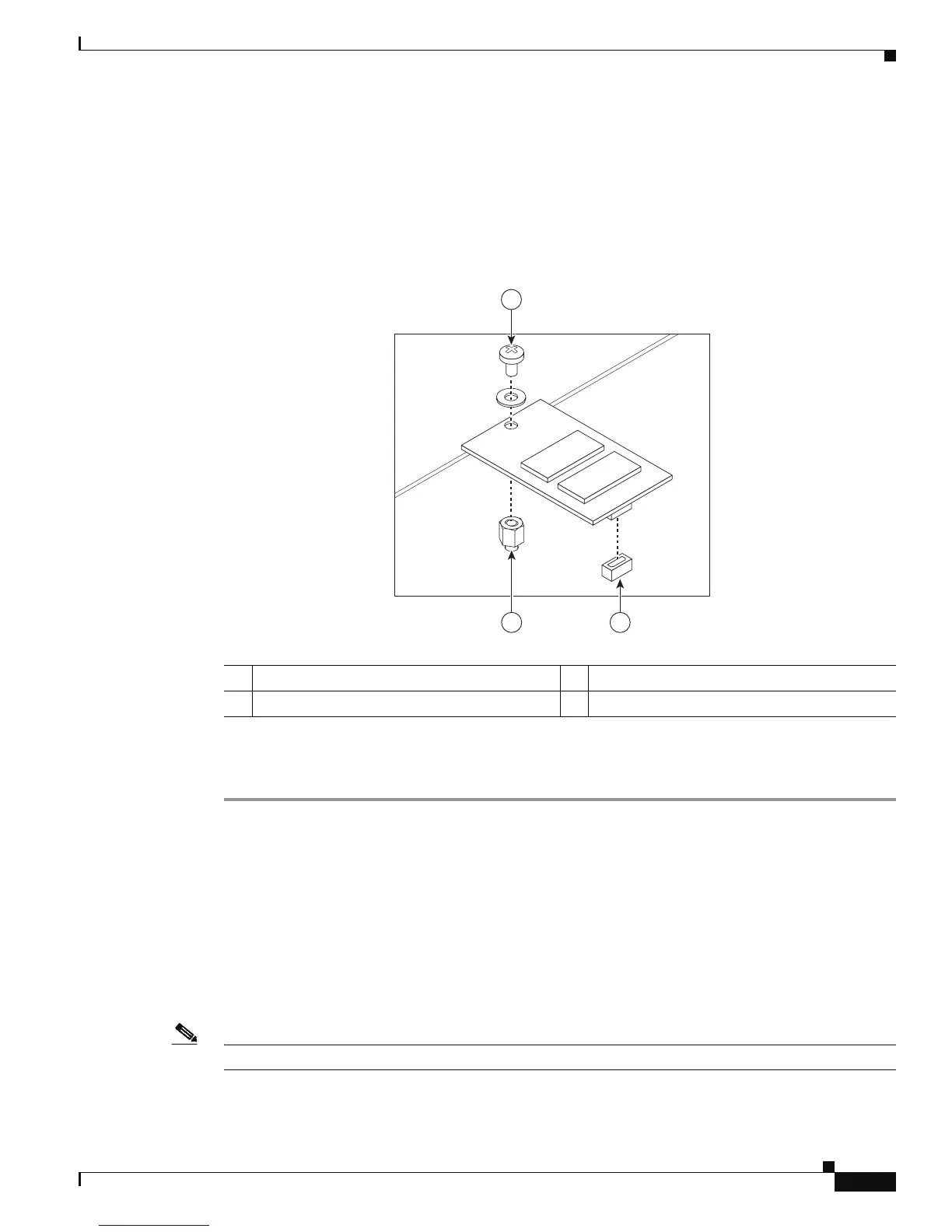

Figure 8-12 Cisco ASR1000-RP1 eUSB Device Removal and Replacement
Step 3 Replace the Cisco ADR1000-RP into chassis.
Step 4 Restore files to bootflash and startup-config
This completes the removal and replacement of the eUSB flash device on a Cisco ASR1000-RP1.
Removing and Replacing the 1GB USB Flash Token Memory
Stick
The Cisco ASR 1000 Series Route Processor 1 contains ports for a 1GB flash token memory stick to
store configurations or Cisco IOS XE consolidated packages.
Note Only Cisco USB Flash memory modules are supported by Cisco routers.
1 Phillips screw 3 Standoff
2 eUSB connector
232373
1
23
