Removing and Replacing an eUSB Device

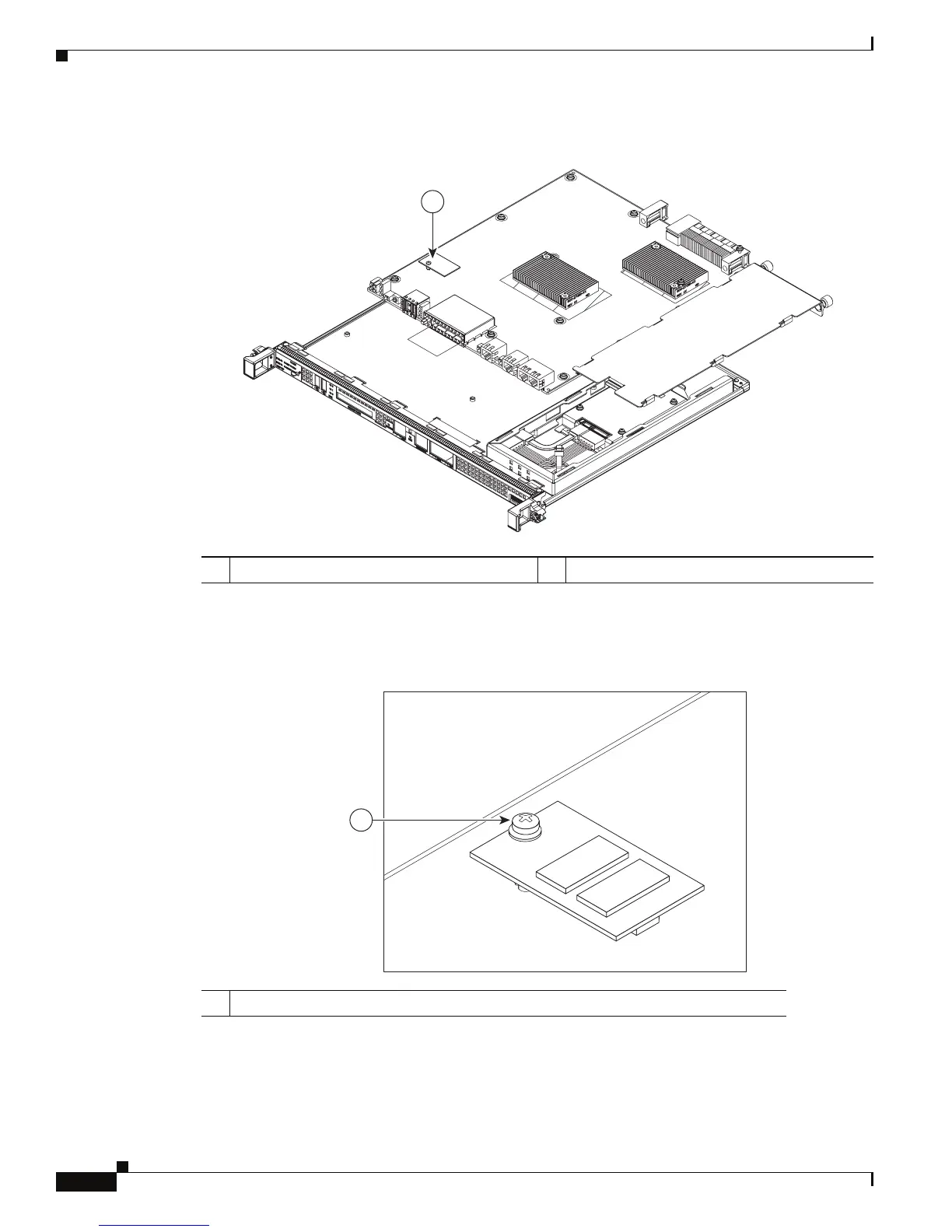

Figure 8-10 Cisco ASR1000-RP1 eUSB Location
g. Remove the small Phillips screw holding the eUSB board in-place.
Figure 8-11 Cisco ASR1000-RP1 eUSB Device
h. Gently pull the eUSB device up from its connector and remove it.
i. Place the eUSB device in an anti-static bag.
1 Cisco ASR1000-RP1 eUSB device location
272371
1
1 Cisco ASR1000-RP1 eUSB device Phillips screw
232372
1
