Cisco ASR 1000 Series Installation And Configuration Guide

4-27
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation and Initial Configuration Guide
OL-13208-03
Chapter 4 Cisco ASR 1006 Router Overview and Installation
Connecting a Terminal to the Cisco ASR 1000 Series RP1 Console Port

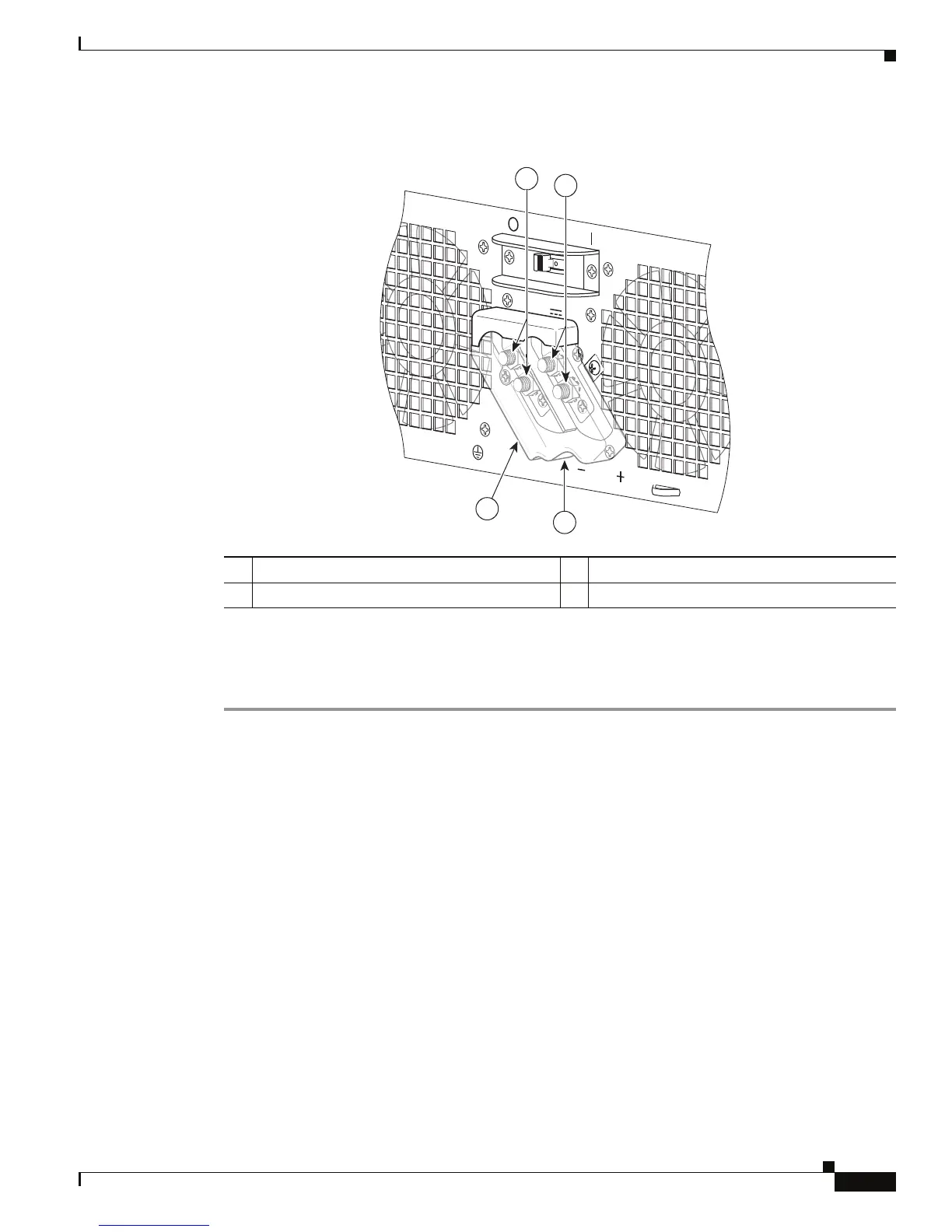

Figure 4-18 Cisco ASR 1006 Router DC Power Supply Terminal Block Plastic Cover
Step 10 Remove the tape from the circuit-breaker switch handle and move the circuit-breaker handle to the
on
position.
Step 11 Switch the circuit breaker switch to the On (|) position.
This completes the procedure for connecting the DC power supply in the Cisco ASR 1006 Router.
Connecting a Terminal to the Cisco ASR 1000 Series RP1
Console Port
The Cisco ASR 1006 router processor has an asynchronous serial (EIA/TIA-232) RJ-45 console port
labeled CON on its front panel. You can connect this port to most types of video terminals through use
of the console cable kit that is included with your Cisco
ASR 1006 Router. The console cable kit
contains:
• One RJ-45 to RJ-45 crossover cable
• One RJ-45 to DB-25 (female) adapter
• One RJ-45 to DB-9 (female) adapter
1 Negative lead 3 Plastic cover slotted area
2 Positive lead 4 Terminal block plastic cover
This unit might have mo
re than one power su
pply connection. All connections must be
remov
OFF
55
-48/-60V 40A
280027
3
4
1
2

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
