Cisco ASR 1000 Series Installation And Configuration Guide

4-11
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation and Initial Configuration Guide
OL-13208-03
Chapter 4 Cisco ASR 1006 Router Overview and Installation
Attaching the Chassis Rack-Mount Brackets

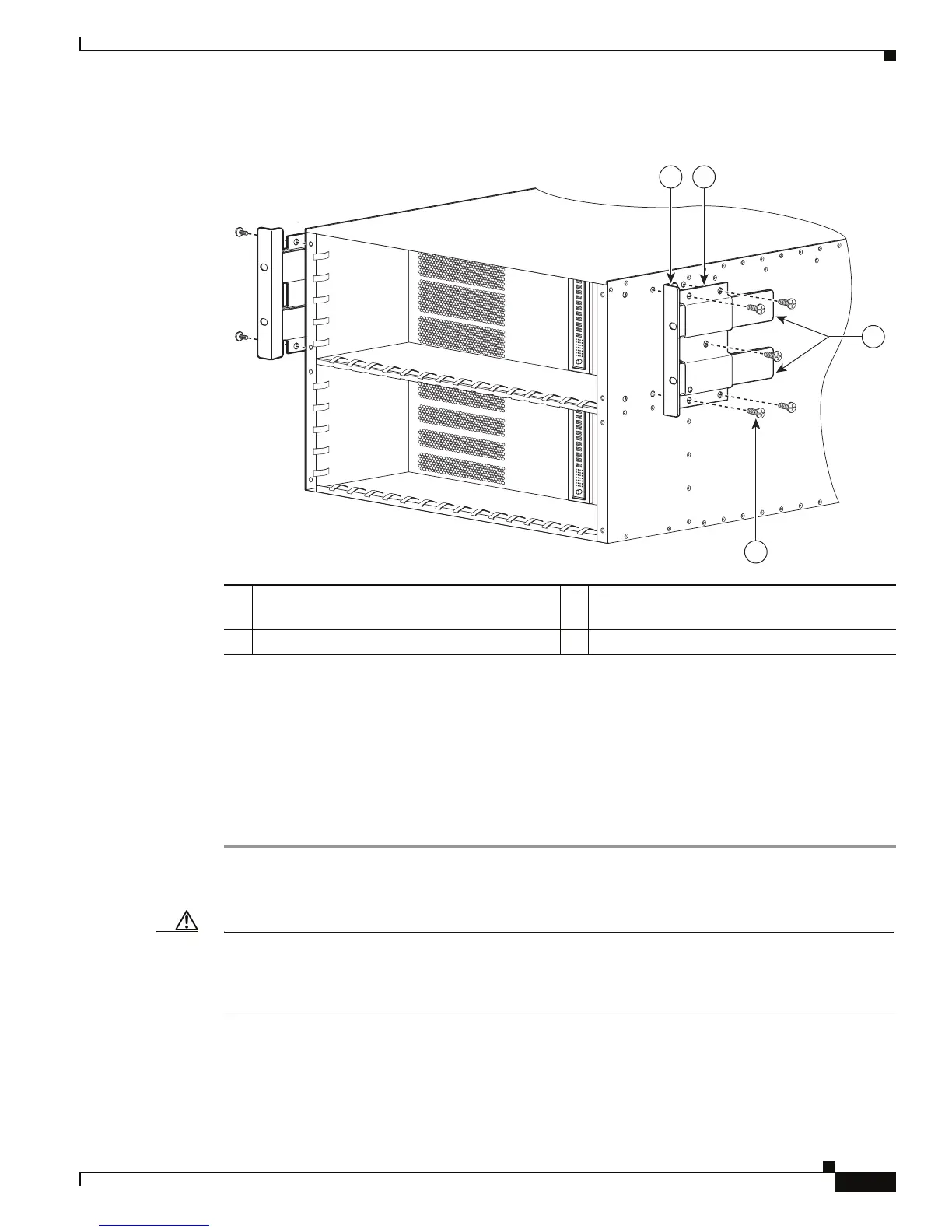

Figure 4-7 Attaching the Rear Rack-Mount Brackets to the Cisco ASR 1006 Router
Step 2 Position the rear rack-mount bracket top hole with the chassis second top hole from the back (See
Figure 4-7).
Step 3 Insert and tighten the screws on one side.
Step 4 After the bracket is secured to the side of the chassis, slide the two remaining components into the side
rack-mount bracket.
Step 5 Repeat Step 1 through Step 3 on the other side of the chassis. Use all the screws to secure the rear
rack-mount brackets to the chassis.
This completes the steps for attaching the rear rack-mount brackets to the Cisco ASR 1006 Router.
Caution Before you mount the ASR 1006 Router in a rack, make certain you read which rack-mount bracket ear
holes to use when positioning the chassis in the rack. As a result of using the designated ear holes on the
rack-mount bracket, the cable-management bracket installation will be made easier. For
cable-management installation instructions, go to Attaching the Cable-Management Bracket, page 4-16.
1 Rear rack-mount bracket ear and holes 3 Rear rack-mount bracket components that
slide into rear bracket attached to the chassis
2 Rear rack-mount bracket 4 Rear rack-mount bracket screws
280038
0
0
1
1
1 2
3
4

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
