4-18
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation and Initial Configuration Guide
OL-13208-03
Chapter 4 Cisco ASR 1006 Router Overview and Installation
Attaching a Chassis Ground Connection
Caution The dual-lug chassis stud must be installed, the SIP and SPA must be fully inserted and screwed in and
earthed to prevent a potential hazard in a telecom line.
Have the recommended tools and supplies available before you begin this procedure.
Figure 4-11 shows the cable-management brackets attached to the chassis in a rack.

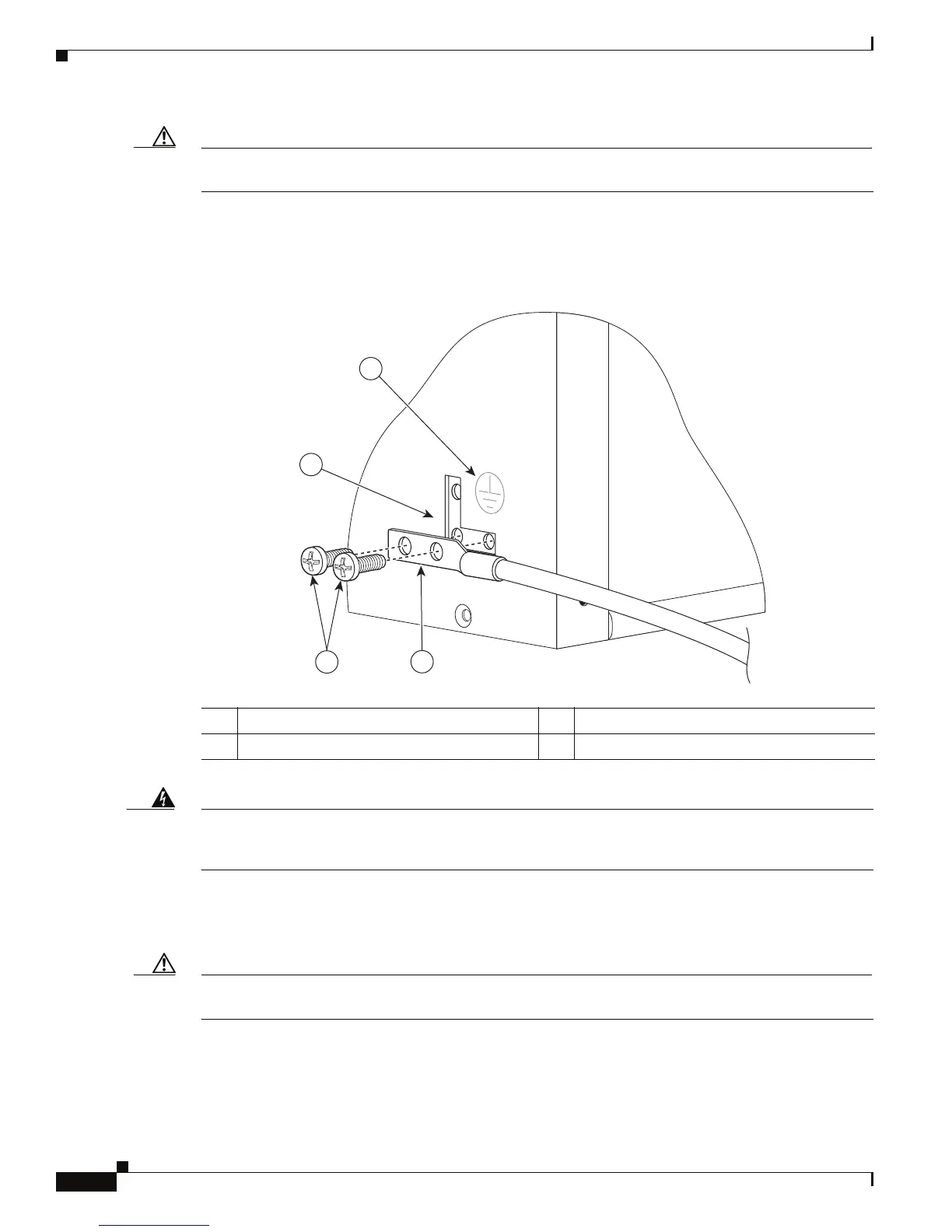

Figure 4-11 Installing the Cisco ASR 1006 Router Ground Connection
Warning
This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection
authority or an electrician if you are uncertain that suitable grounding is available.
Statement 1024
Before you connect power or turn on power to your chassis, you must provide an adequate chassis ground
(earth) connection for the chassis. A chassis ground connector is provided on each Cisco ASR 1006
Router. There is a stud on the side of the chassis and on the DC power supply (primary grounding stud).
Caution The grounding wire is always the first to be installed or connected and the last to be removed or
disconnected.
280034
3
4
2
1
1 Chassis earth ground studs and lead wire 3 Earth ground connector on the chassis
2 Grounding screws 4 Earth ground symbol
