Chapter 5 Cisco ASR 1004 Router Overview and Installation
Equipment Shelf or Tabletop Installation
Step 4 Repeat Step 2 through Step 3 on the other side of the chassis. Use all the screws to secure the rack-mount
brackets to the chassis.
Note The cable-management brackets are installed on the chassis after you install the chassis rack-mount
brackets and mount the chassis in the rack.
Step 5 Obtain the two cable-management brackets and screws shipped with your chassis. Figure 5-5 shows
attached cable-management brackets on the front of the Cisco ASR 1004 Router.
Note Make certain that the cable-management ‘U’ feature device has the open end pointing upwards
when you attach it to the chassis after the chassis is installed in a rack.

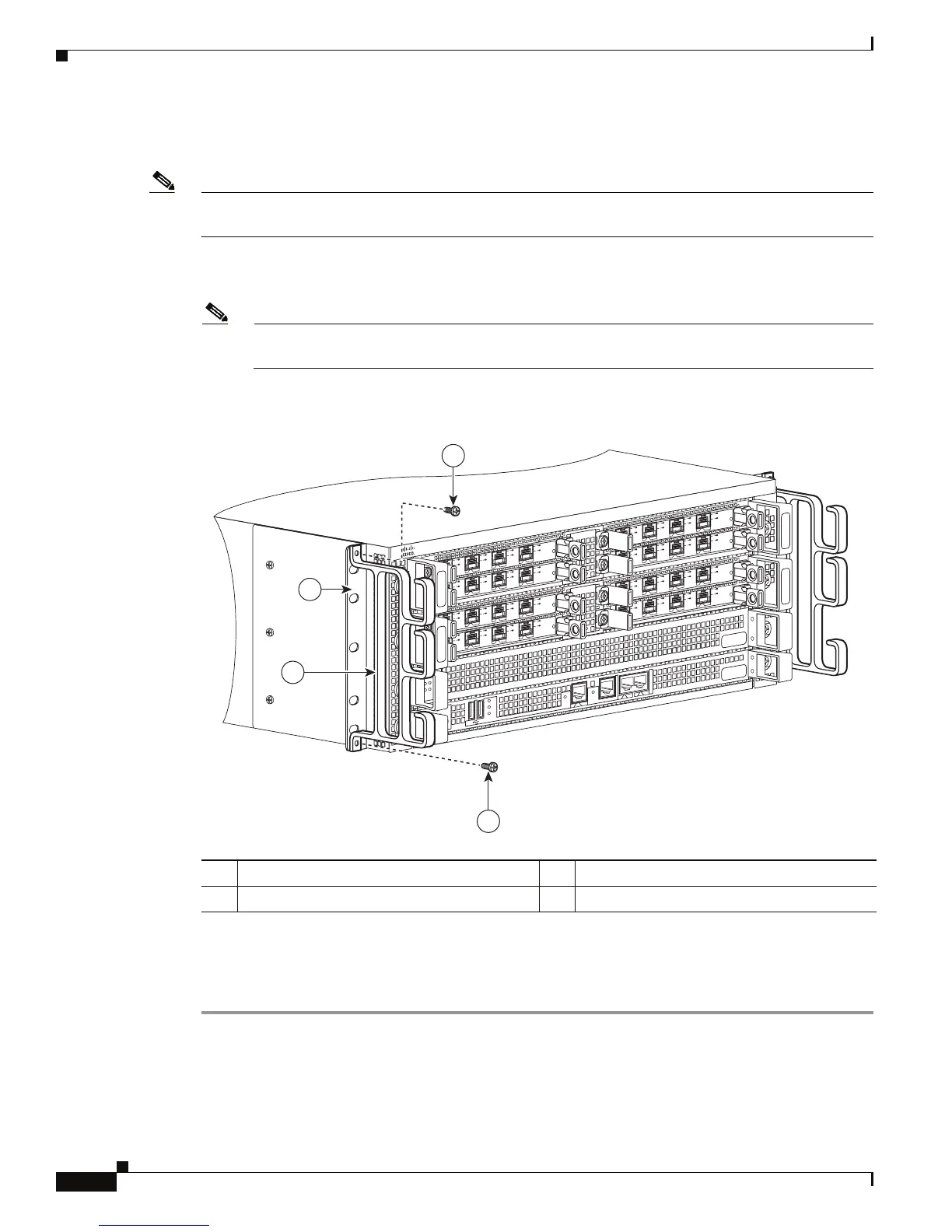

Figure 5-5 Attaching the Cable-Management Brackets to the Cisco ASR 1004 Router
Step 6 Screw the cable-management bracket to each side of the rack-mount brackets already attached to the
chassis. Use two screws for each cable-management bracket. Use the package of four screws.
Step 7 Check that all screws are securely tightened.
You have completed a tabletop or equipment shelf chassis installation. Go to the “Attaching a Chassis
Ground Connection” section on page 5-16 to continue the installation
1 Cable-management bracket screws 3 Chassis front rack-mount bracket ear
2 Cable-management bracket
280176
