Chapter 5 Cisco ASR 1004 Router Overview and Installation
Attaching a Chassis Ground Connection
Step 4 Attach the grounding lug with the wire on the left to avoid having the grounding wire overlapping the
power supply.
Figure 5-12 shows how to attach the grounding screws.

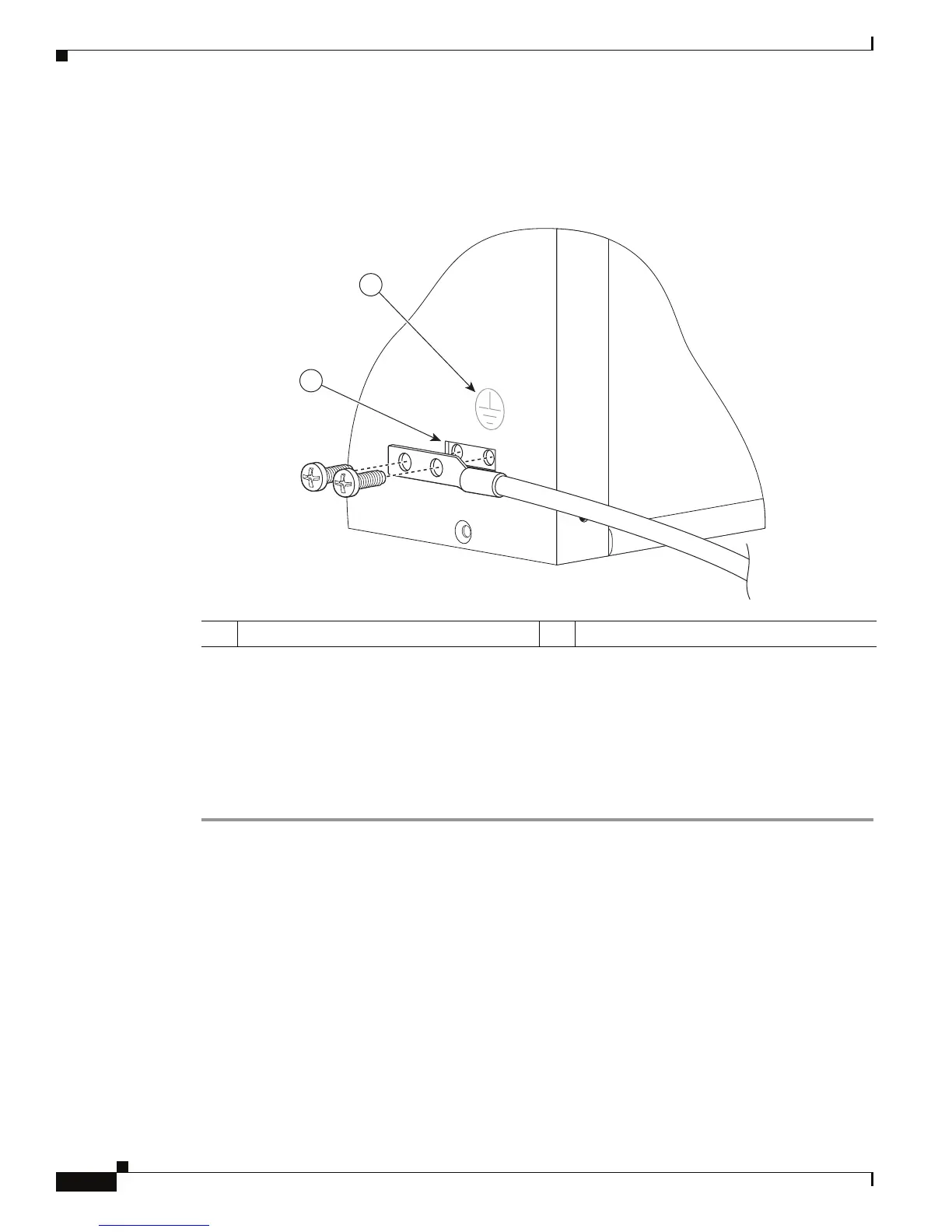

Figure 5-12 Attaching a Grounding Lug to the Chassis Ground Connector
Step 5 Locate the chassis ground connector on the side of your chassis.
Step 6 Insert the two screws through the holes in the grounding lug as shown in Figure 5-12.
Step 7 Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held
firmly to the chassis. Do not overtighten the screws.
Step 8 Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure
an adequate chassis ground.
This completes the procedure for attaching a chassis ground connection. To continue on, go to Attaching
the Cable-Management Bracket, page 5-19.
1 Chassis ground connector 2 Ground symbol
280180
1
2
