Chapter 2 Cisco ASR 1000 Series Routers Components
Cisco ASR 1000 Series Route Processor

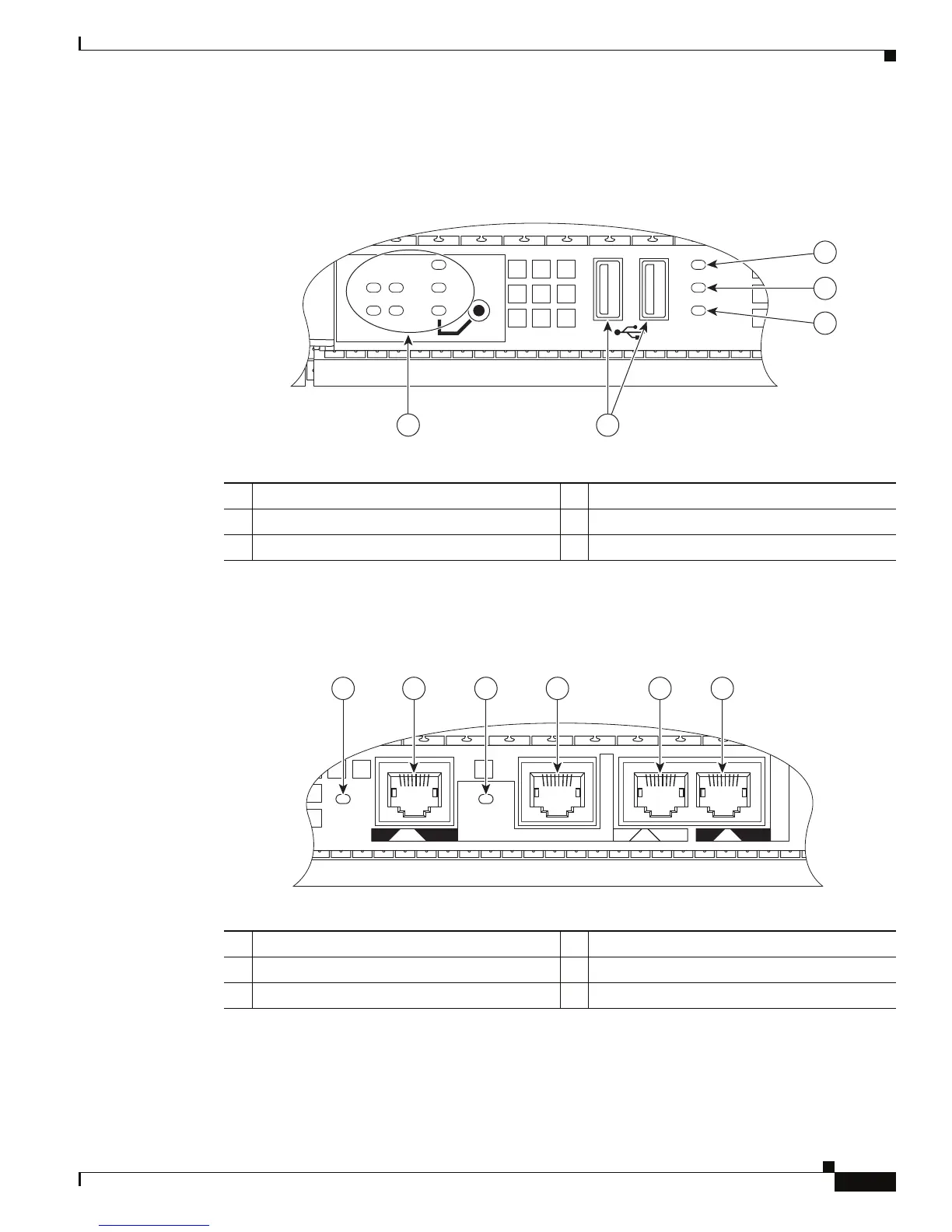

Figure 2-1 shows the Cisco ASR 1000 Series Route Processor faceplate.
Figure 2-1 Cisco ASR Series 1000 Route Processor Faceplate LEDs and Connectors
Figure 2-2 shows the Cisco ASR1000-RP1 with faceplate connectors.
Figure 2-2 Cisco ASR Series 1000 Route Processor Connectors
1 Internal hard drive LED 4 USB 0, USB 1 connector
2 External USB Flash LED 5 ASR1000 RP1 LEDs
3 Internal USB bootflash LED
01 DISK
BF
USB
HD
MIN
ACO
MAJ
STBY
ACTV
STAT
ASR1000-RP1
PWR
CRIT
280078
5
4
1
2
3
1 CARRIER LED 4 MGMT Ethernet connector
2 BITS connector 5 CON connector
3 LINK LED 6 AUX connector
CARRIER
LINK
MGMT ETHERNET BITS CON AUX
280079
1 2 3 4 5 6
