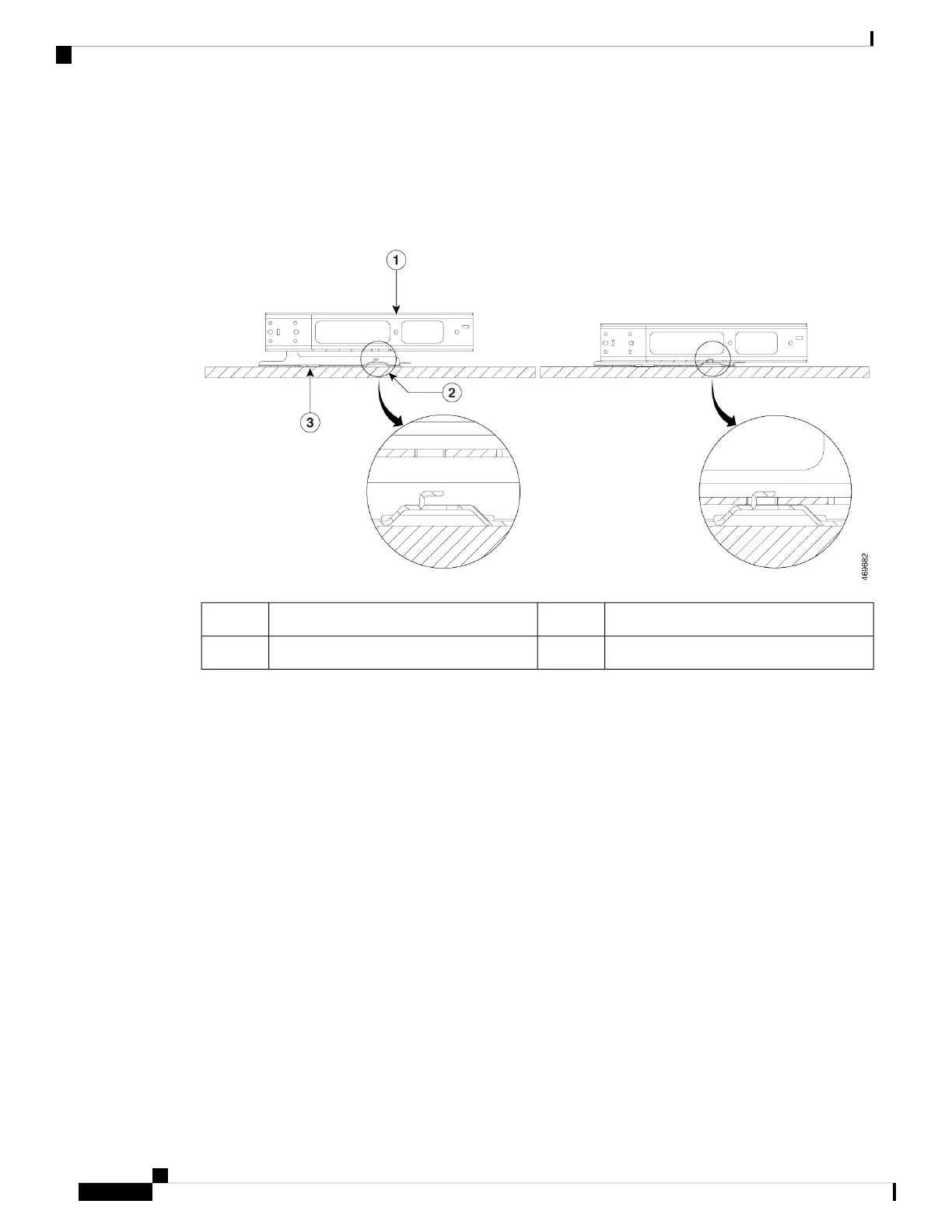

Figure 24: Aligning the Mounting Tray Hooks with the Switch
Mounting tray3Switch1
--Mounting tray hook2
To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in.
(7.6 cm) Statement 1076
Warning
Step 5 Secure the switch to the mounting tray using the screws provided.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
54
Installing a Compact Switch
Mounting using the Mounting Tray and Screws
