12-22

Cisco IOS Software Configuration Guide for Cisco Aironet Access Points

OL-14209-01

Chapter 12 Configuring WDS, Fast Secure Roaming, Radio Management, and Wireless Intrusion Detection

Configuring Fast Secure Roaming

Configuring Access Points to Support Fast Secure Roaming

To support fast, secure roaming, the access points on your wireless LAN must be configured to

participate in WDS and they must allow CCKM authenticated key management for at least one SSID.

Follow these steps to configure CCKM for an SSID:

Step 1 Browse to the Encryption Manager page on the access point GUI. Figure 12-14 shows the top section of

the Encryption Manager page.

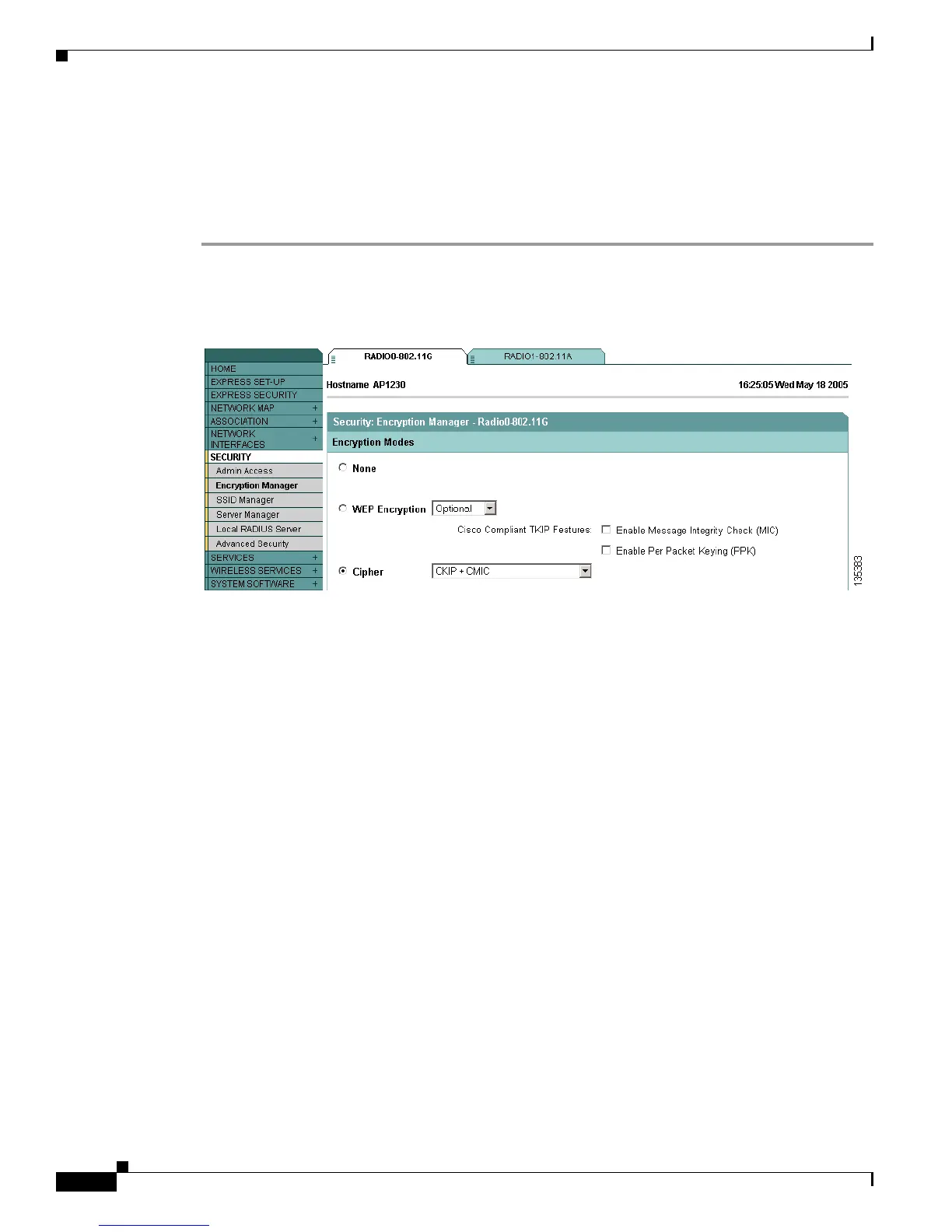

Figure 12-14 Encryption Manager Page

Step 2

Click the Cipher button.

Step 3 Select CKIP + CMIC from the Cipher drop-down menu.

Step 4 Click Apply.

Step 5 Browse to the Global SSID Manager page. Figure 12-15 shows the top sections of the Global SSID

Manager page.
