6-38
Cisco IOS Software Configuration Guide for Cisco Aironet Access Points
OL-14209-01
Chapter 6 Configuring Radio Settings
Viewing VoWLAN Metrics
Viewing Voice Fault Summary
The Faults > Voice Summary page in WLSE displays a summary of the faults detected with the following
voice fault types:
• Excessive Voice Bandwidth (CAC)
• Degraded Voice QOS (TSM)
To view a summary of voice faults, follow these steps:
Step 1 Log in to a WLSE.
Step 2 Click the Faults tab.
Step 3 Click Voice Summary.
For both fault types, the screen lists the number of faults detected as shown in the example in Figure 6-8.

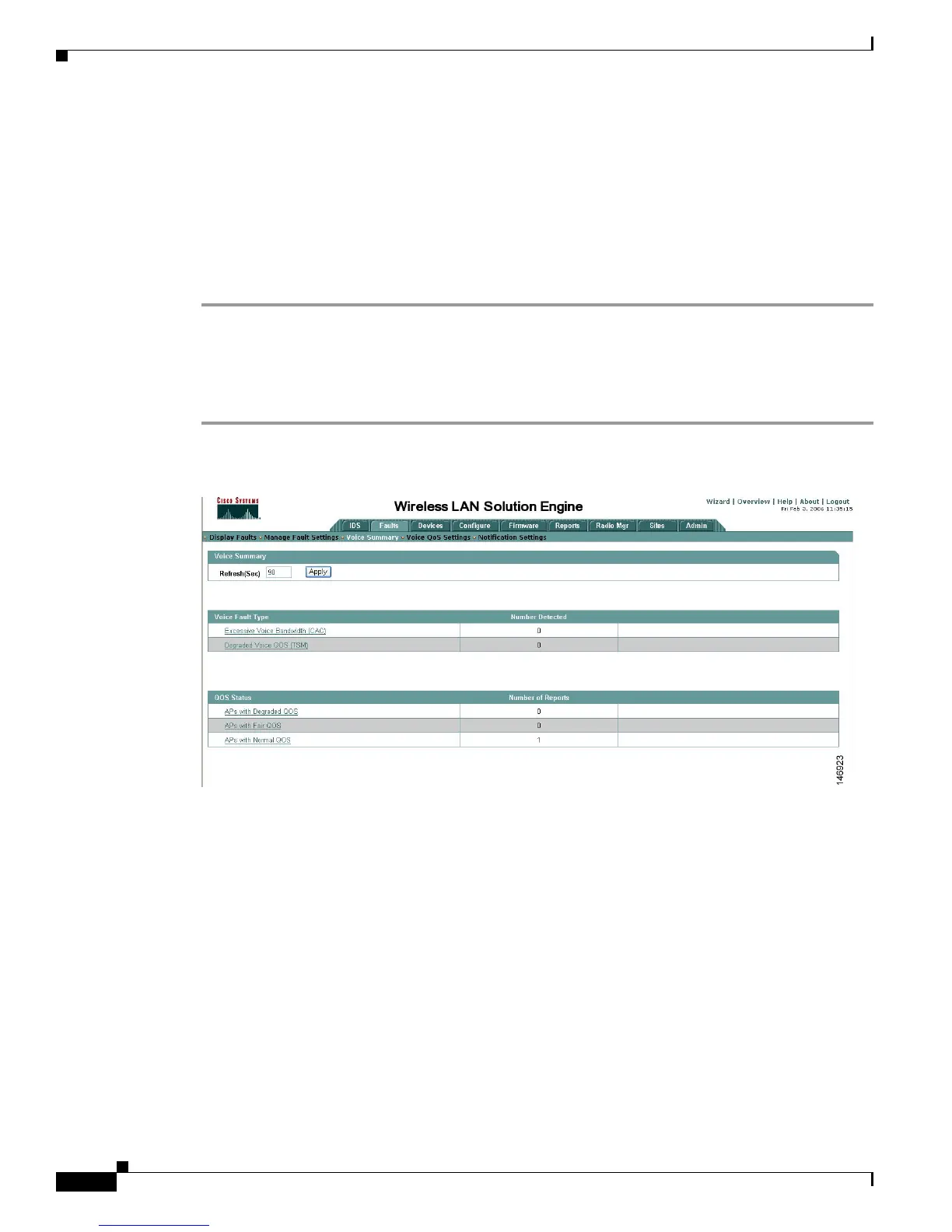

Figure 6-8 Voice Fault Summary
Configuring Voice QoS Settings
You can use WLSE’s Faults > Voice QoS Settings screen to define the voice QoS thresholds for the
following parameters:
• Downstream Delay with U-ASPD not used
• Downstream Delay with U-ASPD used
• Upstream Delay
• Downstream Packet Loss Rate
• Upstream Packet Loss Rate
• Roaming Time
To view a summary of voice faults, follow these steps:
