15-15
Cisco IOS Software Configuration Guide for Cisco Aironet Access Points
OL-14209-01
Chapter 15 Configuring QoS
QoS Configuration Examples

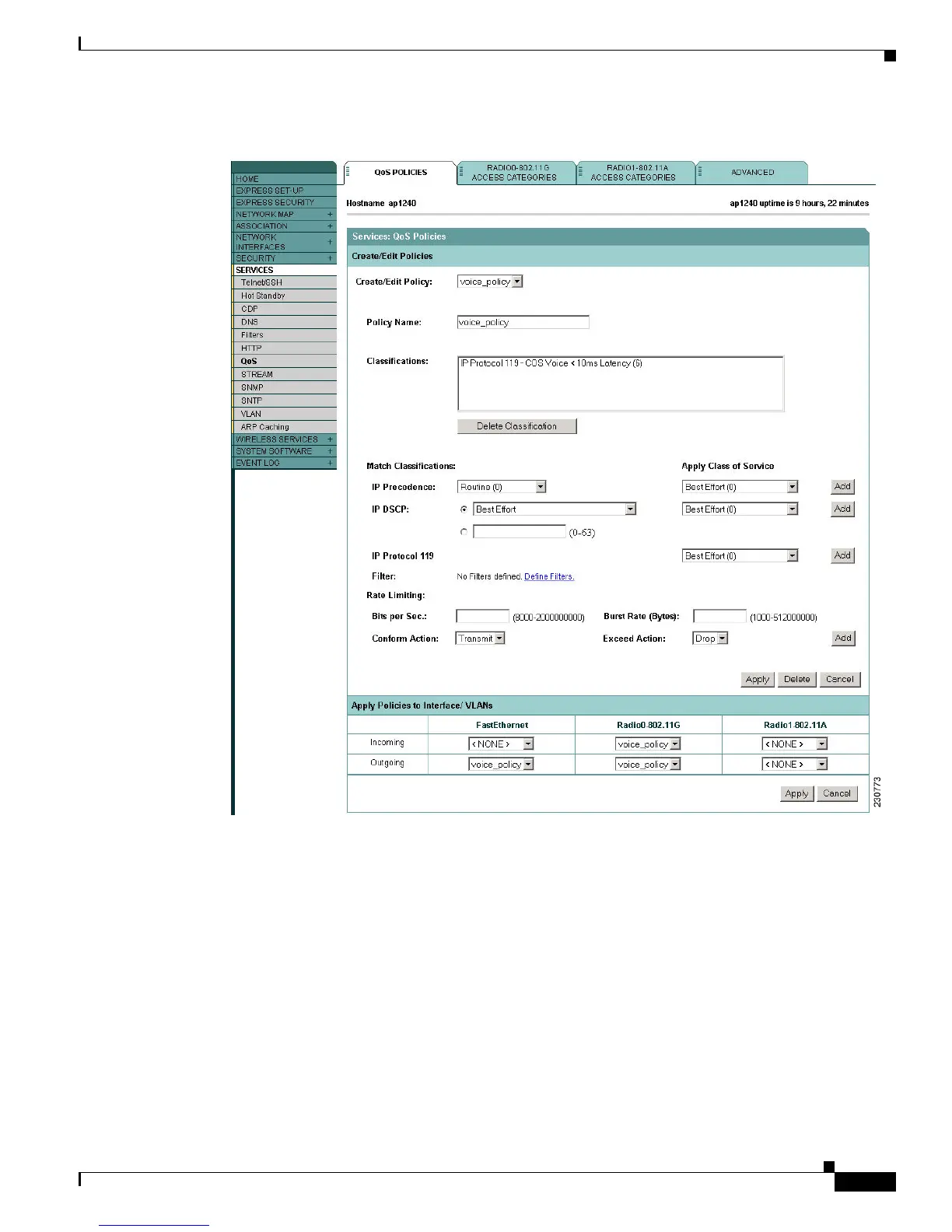

Figure 15-5 QoS Policies Page for Voice Example
The network administrator also enables the QoS element for wireless phones setting on the QoS
Policies - Advanced page. This setting gives priority to all voice traffic regardless of VLAN.
Giving Priority to Video Traffic
This section demonstrates how you could apply a QoS policy to a VLAN on your network dedicated to
video traffic.
In this example, the network administrator creates a policy named video_policy that applies video class
of service to video traffic. The user applies the video_policy to the incoming and outgoing radio ports
and to the outgoing Ethernet port. Figure 15-6 shows the administrator’s QoS Policies page.
