Cisco IOS Software Configuration Guide for Cisco Aironet Access Points

OL-14209-01

Chapter 15 Configuring QoS

Configuring QoS

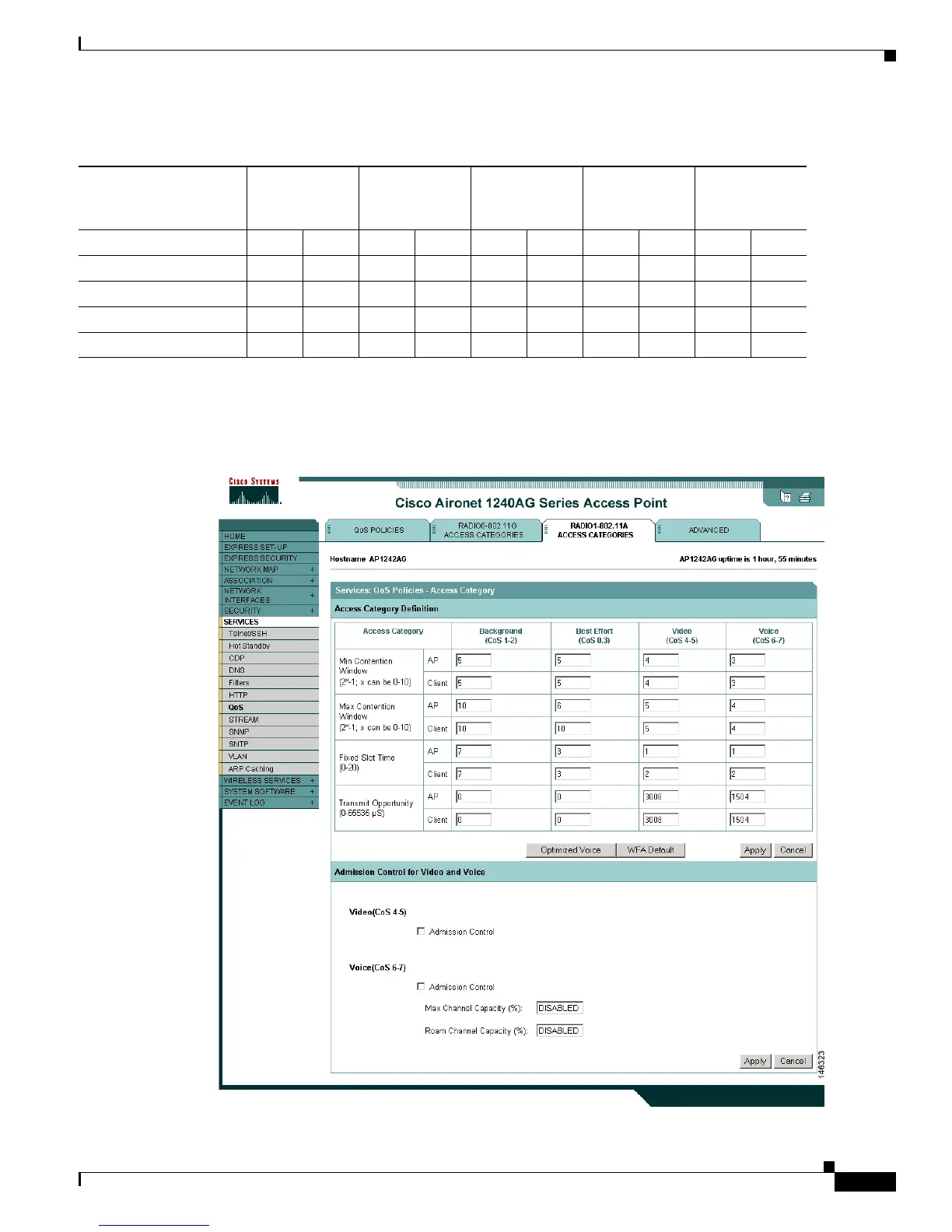

Figure 15-4 shows the Radio Access Categories page. Dual-radio access points have a Radio Access

Categories page for each radio.

Figure 15-4 Radio Access Categories Page

Table 15-1 Default QoS Radio Access Categories

Class of Service

Min

Contention

Window

Max

Contention

Window

Fixed

Slot

Time

Transmit

Opportunity

Admission

Control

Local Cell Local Cell Local Cell Local Cell Local Cell

Background 4 10 6 0

Best Effort 4 10 2 0

Video <100ms Latency 3 2 1 3008

Voice <100ms Latency 2 3 1 1504

Default Chapter3
