ARES 506-606 - 02.2005 - GB
B.2

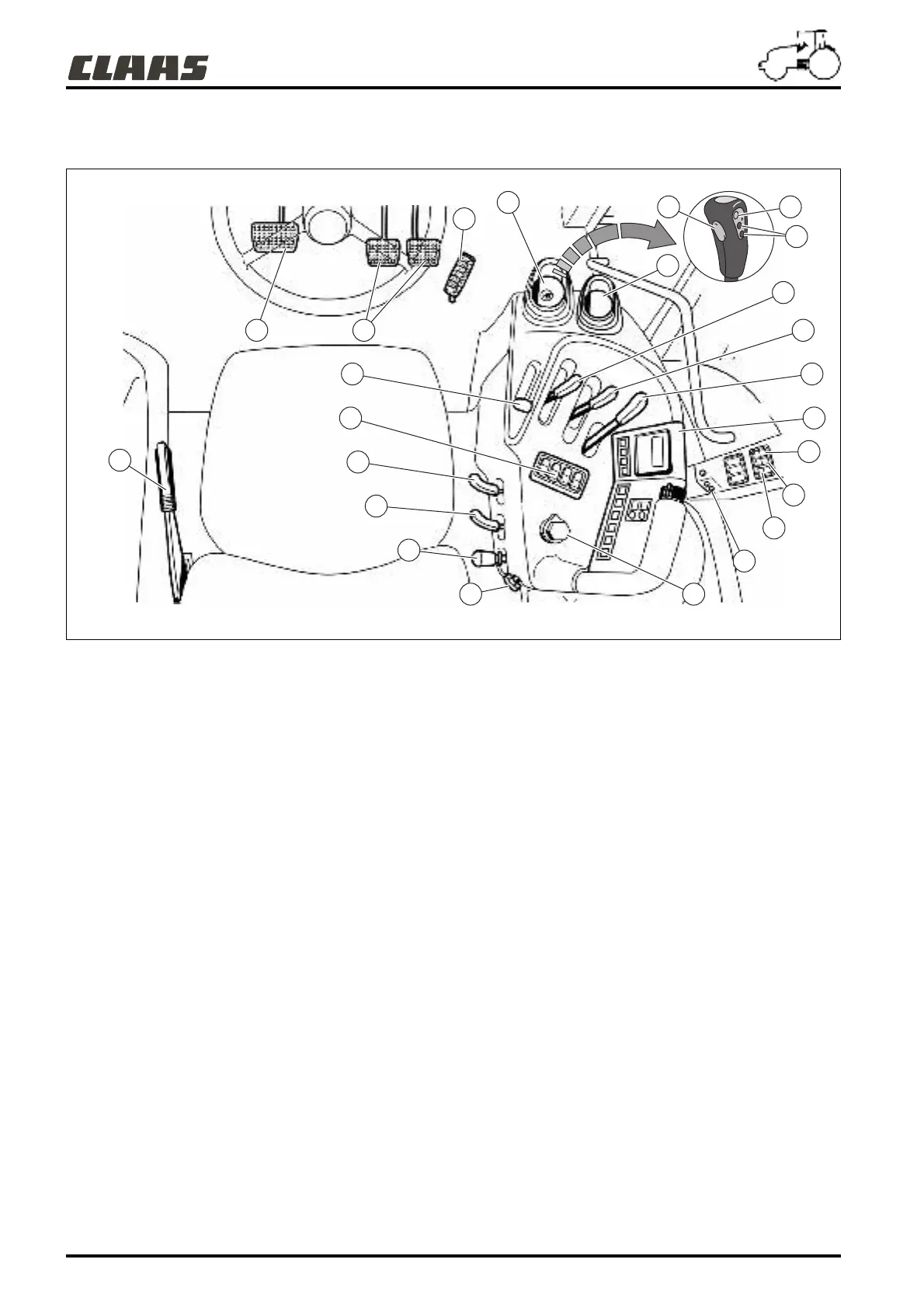

INSTRUMENTS AND CONTROLS (DRIVING POSITION)
761msn02
1 - Hand brake lever.
2 - Clutch pedal.
3 - Brake pedals.
4 - Accelerator pedal.
5 - Gear and range lever.
6 - Quadrupler impulse switches.
7 - Range switch.
8 - Clutch switch.
9 - Auxiliary distributor 1.
10 - Auxiliary distributor 2.
11 - Auxiliary distributor 3.
12 - Configuration spool valve control.
13 - Control box for electro-hydraulic linkage.
14 - Quadractiv switch.
15 - Rear power take-off engagement button.
16 - Manual accelerator lever.
17 - Set of switches:
- Front axle engagement.
- Engagement of rear axle differential lock (front and
rear axles only on ARES 696).
- Suspended front axle.
18 - Crawler range selection lever.
19 - Economy power take-off speed selector lever.
20 - Power take-off lever speed selection lever
540/1000 rpm.
21 - Electric socket for connecting implements (12V/25 A).
22 - Quadrishift switch II (with its warning light.
23 - Front power take-off engagement switch.
2
21
20
19
18
17
16
9
4
5
12
10
11
13
14
23
22
15
7
6
8
3
6
1
