ARES 506-606 - 02.2005 - GB
E.7
GEARBOX
REVERSER LEVER UNDER TORQUE

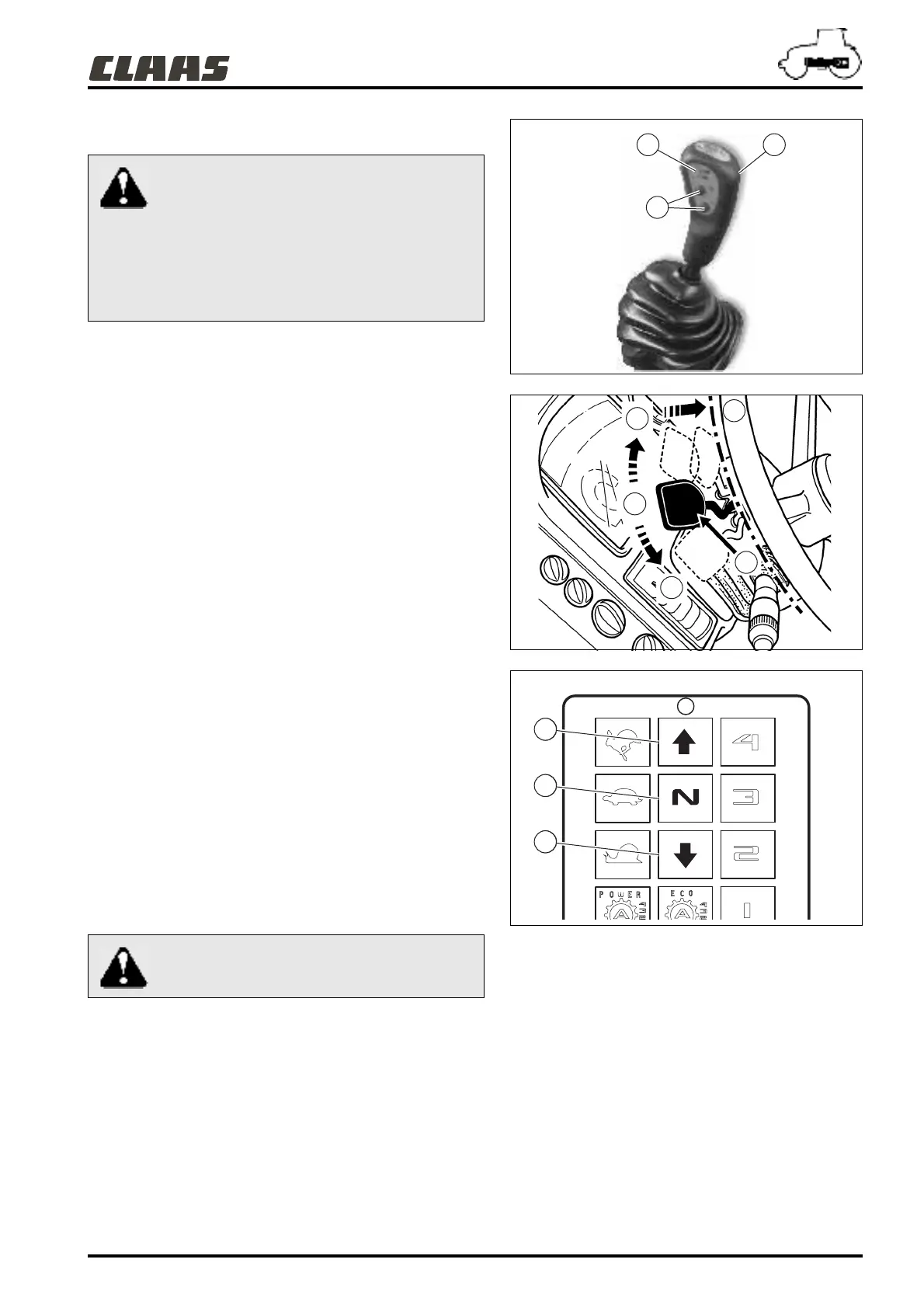

OPERATION OF HYDRAULIC REVERSER (REVERSHIFT) (F)
It has 4 positions. The direction of operation is indicated on the
display by three indicators:
I - Forward gear (indicator 1 on).
II - Neutral (indicator 2 on).
III - Reverse gear (indicator 3 on).
IV - De-clutched.
To shift from forward to reverse, move lever (F) directly from
position (I) to position (III).
To shift from reverse to forward, do the opposite: move lever (F)
directly from position (III) to position (I).
When in positions positions I and III, if the reverser lever is pulled
towards the steering wheel (position IV), the tractor drive is
declutched.
Important: When the load being towed is heavy or for
manoeuvres requiring a rapid reaction time (e.g. : on the
road when setting off again from a STOP sign), it is
preferable to use the clutch pedal instead of the reverser
lever to engage the clutch. If operating direction reversal is
requested when the tractor is running at high speed (for
example, 30 km/h), the electronic processor (DRIVETRONIC)
accepts the request and engages reverse. Reversal of the
operating direction under these conditions is not normal
and entails an engine stall. Therefore, it is necessary to
reduce the tractor speed sufficiently (speed less than
10 km/h) before reversing.
601hsn18
601hsn24
601hpn09
If you have to leave the driving seat leaving the
engine running:
- Apply the hand brake ;
- Move the accelerator lever to the idle position ;
- The reverser lever (F) in neutral ;
- Move the gear lever (A) to neutral.
On a downhill slope, always keep in gear and
never declutch.
B A
C
II
III
I
IV
F
11
12
13
