TABLES OF FORWARD SPEEDS
The forward speeds indicated are theoretical speeds.
The calculations assume "standardized" tyre diameters. The rear
ratios are more or less equal to the front ratios.
Note: These values are given as an indication only. They are
dependent on 3 parameters:
- Tyre inflation pressure ;
- Tyre wear ;
- Wheelspin coefficient.
Only a measurement in the field under working conditions
can give an accurate value. The speeds are expressed in
km/h, to convert them into mph proceed as follows:
• 1 km/h = 0,621 mph ;
• 1 mph = 1,609 km/h.

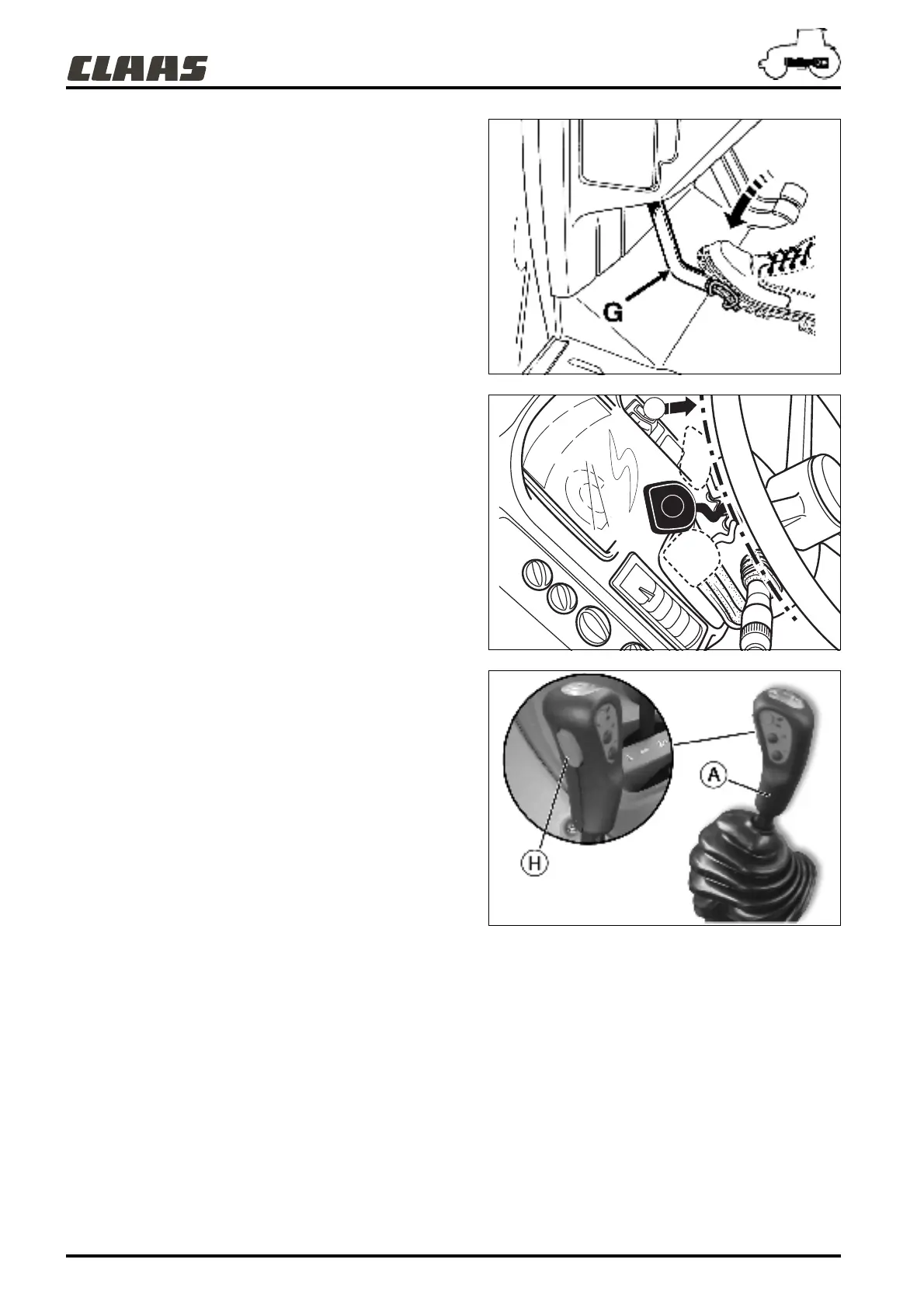

CLUTCH ( 3 POSSIBILITIES)
1. THE PEDAL (G)
Press the pedal fully down to disengage. The pedal enables
greater control when attaching a tool or during a difficult
maneuver.
Important: With the exception of approach manoeuvres,
when depressing the clutch, we advise you to release the
pedal completely (excessive slipping risks causing serious
wear to the clutch).
2. LEVER (K)
To release the clutch, raise lever (K) of the reverser under torque
in position (IV). Engage the desired gear holding the lever in this
position, then release it to engage the clutch.
3. THE BUTTON (H)
To release the clutch, press button (H) located on the knob of the
gear lever (A). Engage the desired gear holding down the button,
then release it to engage the clutch.
302hsn01
601hsn31
322hsn01
IV
K
