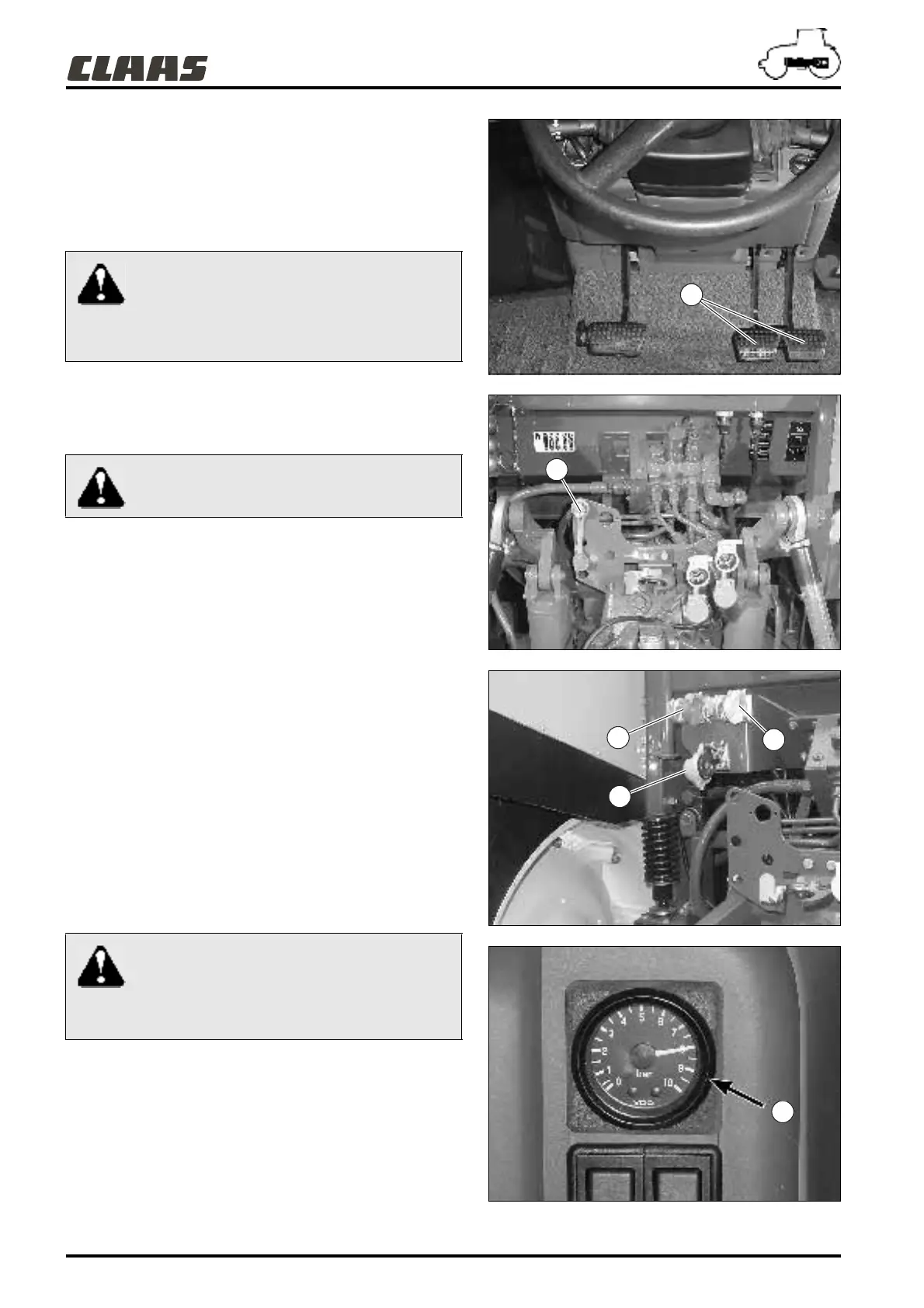

ARES 506-606 - 02.2005 - GB
E.14
PERMANENT DISENGAGEMENT
- When the forward speed exceeds 14 km/h.
- When either of the brake pedals is used, (F) the differential
lock disengages permanently unless temporary
disengagement by the linkage has already been already
activated.
BRAKE PEDALS
TRAILER BRAKE
HYDRAULIC BRAKING (1)
Connect the trailer flexible hose to the pressure connector (1).
Trailer braking is proportional to the effort on the brake pedals
(pedals coupled together).
PNEUMATIC BRAKING
Connect the trailer flexible hoses according to the colours on the
coupling heads:
For trailers with only one flexible hose, use the black coupling (3).
For trailers with two flexible hoses, use the yellow 4 and red 2
couplings.
The pressure gauge (5) located on the right of the dashboard
indicates air pressure inside the reservoir. Trailer braking is
proportional to the effort on the brake pedals (pedals coupled
together).
362msn01
394msn01
373msn01
371hsn01
Rear and front differential blocking is only to be
used when running in a straight line. It must be
cancelled before any movement of the steering
wheel (in continuous engagement).
Never lock the differential when operating on the road
On the road, the 2 brake pedals (F) must be
coupled together.
Connect the trailor hitching heads to free the
trailor brakes. It is only after the service
pressure is obtained that the trailor braking
system is operational. When stationary, apply the hand
brake to brake the trailor.
F
1
2
3
4
5
