Claas ARES 656 - Rear Linkage Tce 15 T (Electronic Tracto Control)

ARES 506-606 - 02.2005 - GB
G.10
REAR LINKAGE TCE 15 T (ELECTRONIC TRACTO CONTROL)

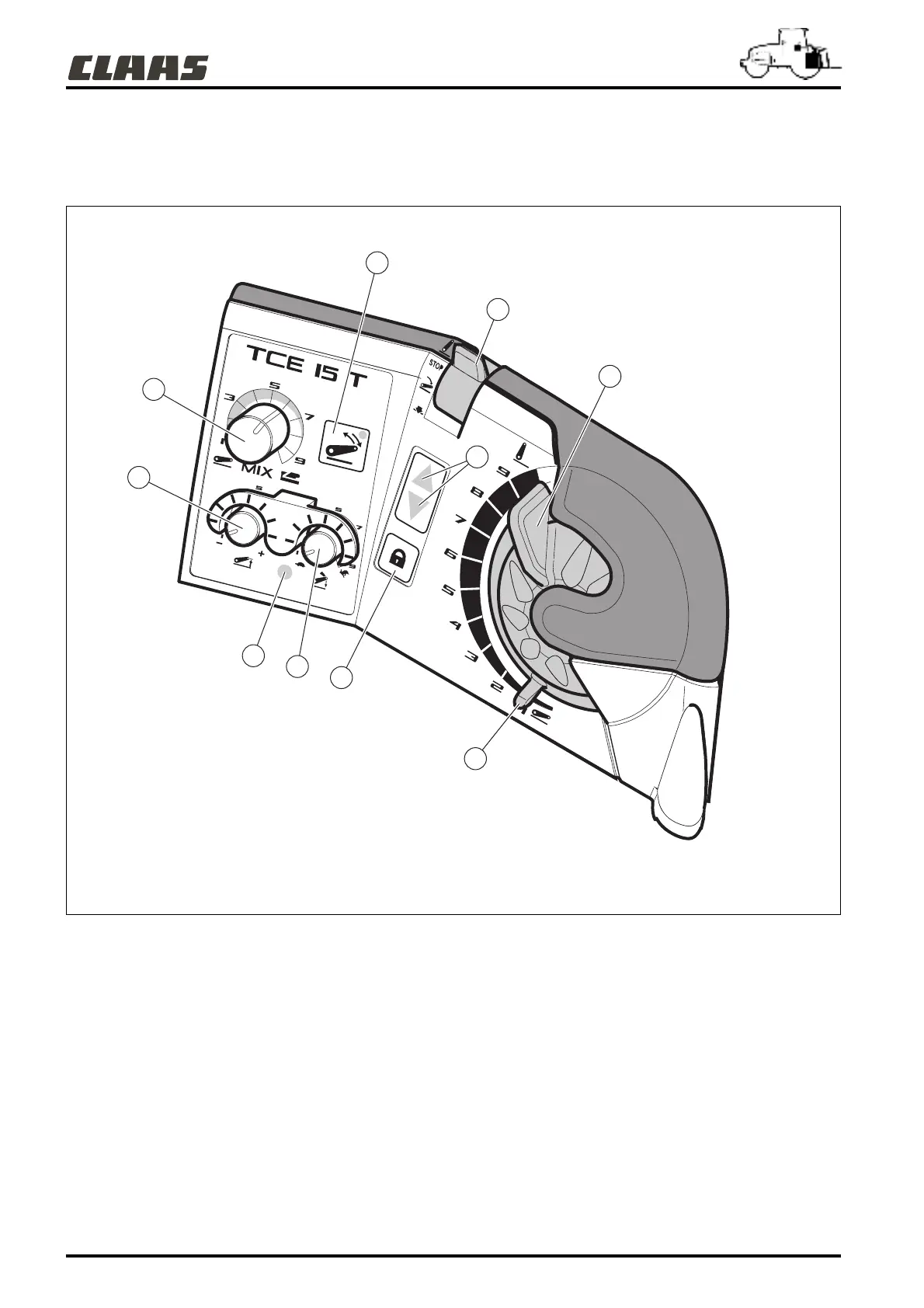

DESCRIPTION OF CONTROL PANEL
382hsn19
1 - Mode selector.
2 - Position adjustment control (work depth adjustment).
3 - Linkage motion indicator lights (up - down).
4 - Transport lock button.
5 - Descent speed adjuster.
6 - Control box safety indicator light.
7 - Upper limit adjuster.
8 - Effort/position control sensitivity adjustment button.
9 - Key to activate transport damping mode.
10 - Mechanical stop identifying the "low limit" position.
2
1
9
8
7
6
5
4
3
10
