WARNING LIGHTS
601hsn20

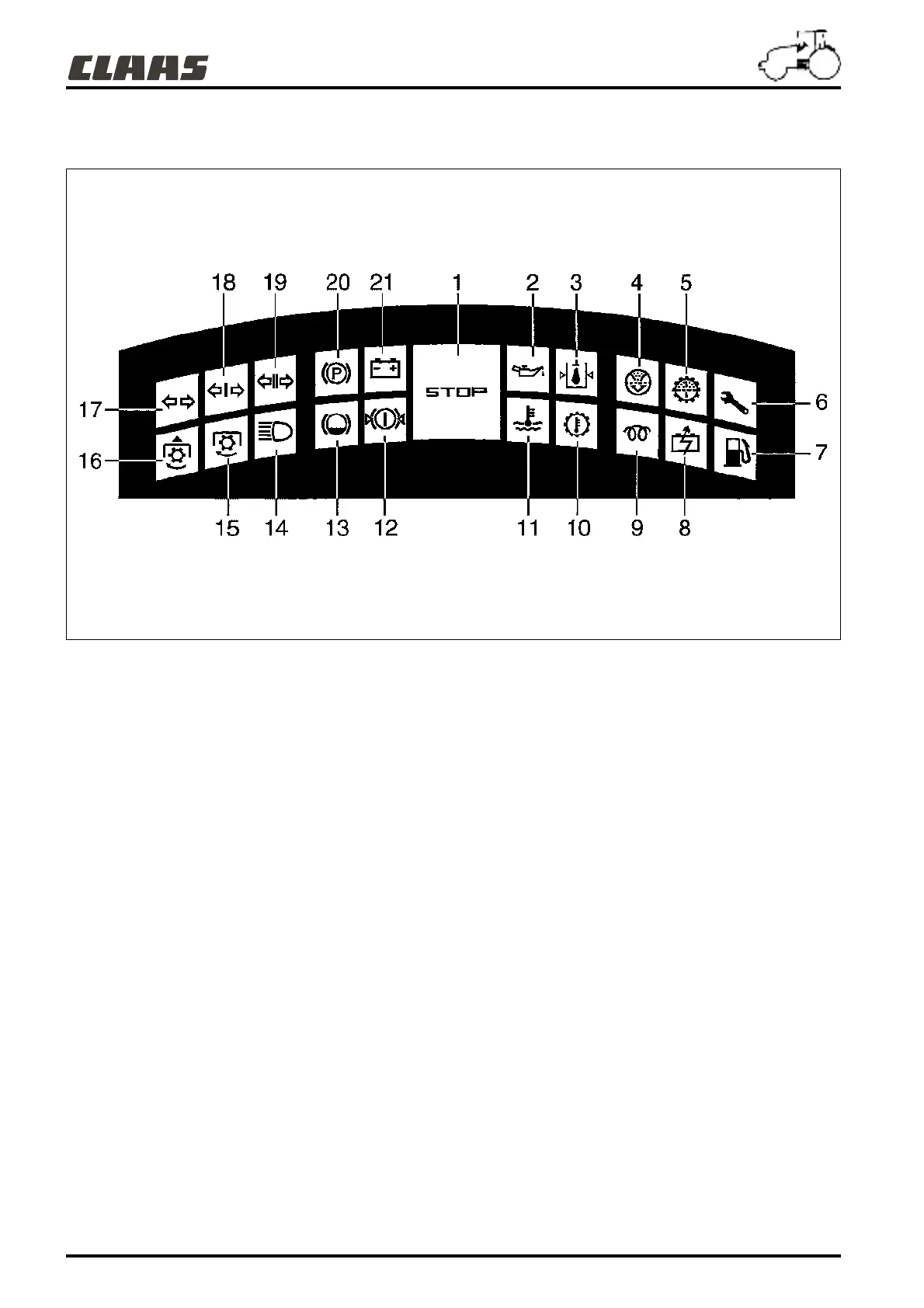

1 - STOP warning light (emergency stop).
2 - Oil pressure warning light.
3 - Hydraulic circuit and rear axle lubrication low pressure
warning light.
4 - Blocked dry type air filter warning light.
5 - Blocked hydraulic circuit filter elements warning light.
6 - Service due warning light.
7 - Fuel level warning light.
8 - Battery state warning light and transmission diagnosis
light.
9 - Preheat warning light.
10 - Transmission oil temperature warning light.
11 - Engine coolant temperature warning light.
12 - Spare warning light.
13 - Brake fluid level warning light.
14 - Main beam warning light.
15 - Rear power take-off warning light.
16 - Front power take-off warning light.
17 - Tractor direction indicators warning light.
18 - 1st trailer direction indicators warning light.
19 - 2nd trailer direction indicators warning light.
20 - Hand brake warning light.
21 - Battery charge warning light.
