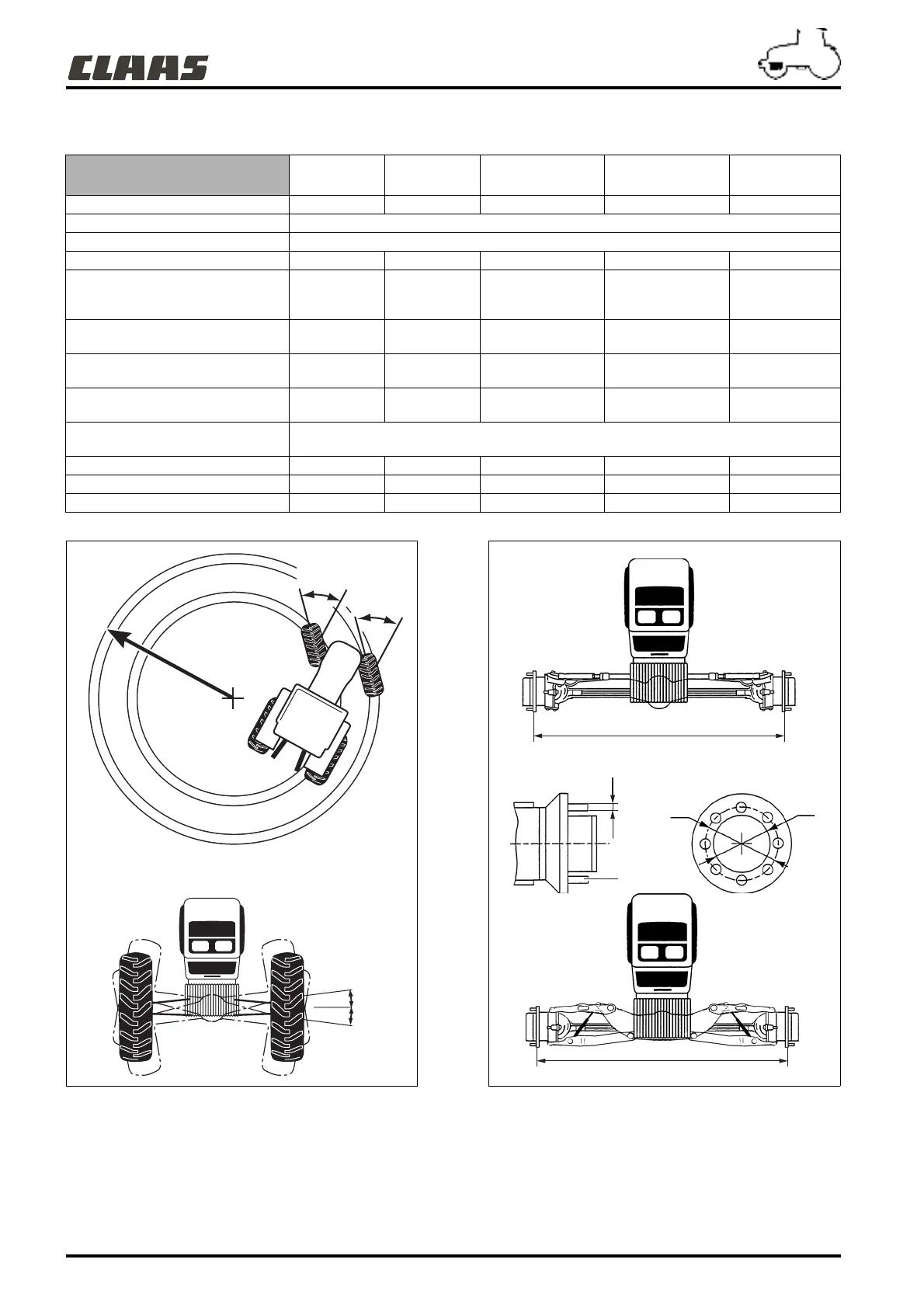

Claas ARES 656 - CHARACTERISTICS

ARES 506-606 - 02.2005 - GB
F.2
CHARACTERISTICS
451hsn01 451hsn02
Ares
546 - 556
Ares 566
616 - 656
Ares 696 Ares 696
Ares 546 - 556
566 - 616 - 656
Type 20.19-1 Rigid 20.22-1 Rigid 20.29-3 Rigid 20.29-6 Proactiv 20.29-10 Proactiv
Inner steering angle Y1 55°
Outer steering angle Y2 42°
Swing angle Y3 10 10 10 8° 8°
Steering radius (mesured in mm at the
centre of the tyre) (A)
4,2
4,6
(4,2- 566)
4,6 4,85
4,85
(616 - 656)
4,51
Between wheel face plates
(in mm) (B)
1900 1900 1850 1900 1900
Diameter of stud ring
(in mm) (C)
275 335 335 335 335
Diameter of wheel alignment boss
(in mm) (D)
220,8 280 280 280 280
Stud diameter
(in mm) (E)
M20 x 1.5
Number of studs (F) 8 8 10 10 10
Front/Rear inter-axle ratio 1,3323 1,31148 1,31941 1,31941 1,3471
Differential locking Self-locking Self-locking Electrohydraulic Electrohydraulic Self-locking
(+) Y3
(–) Y3
Y1
Y2
A
B
B
F
E
C
D
