DRIVER'S SEAT
COMFORT SEAT

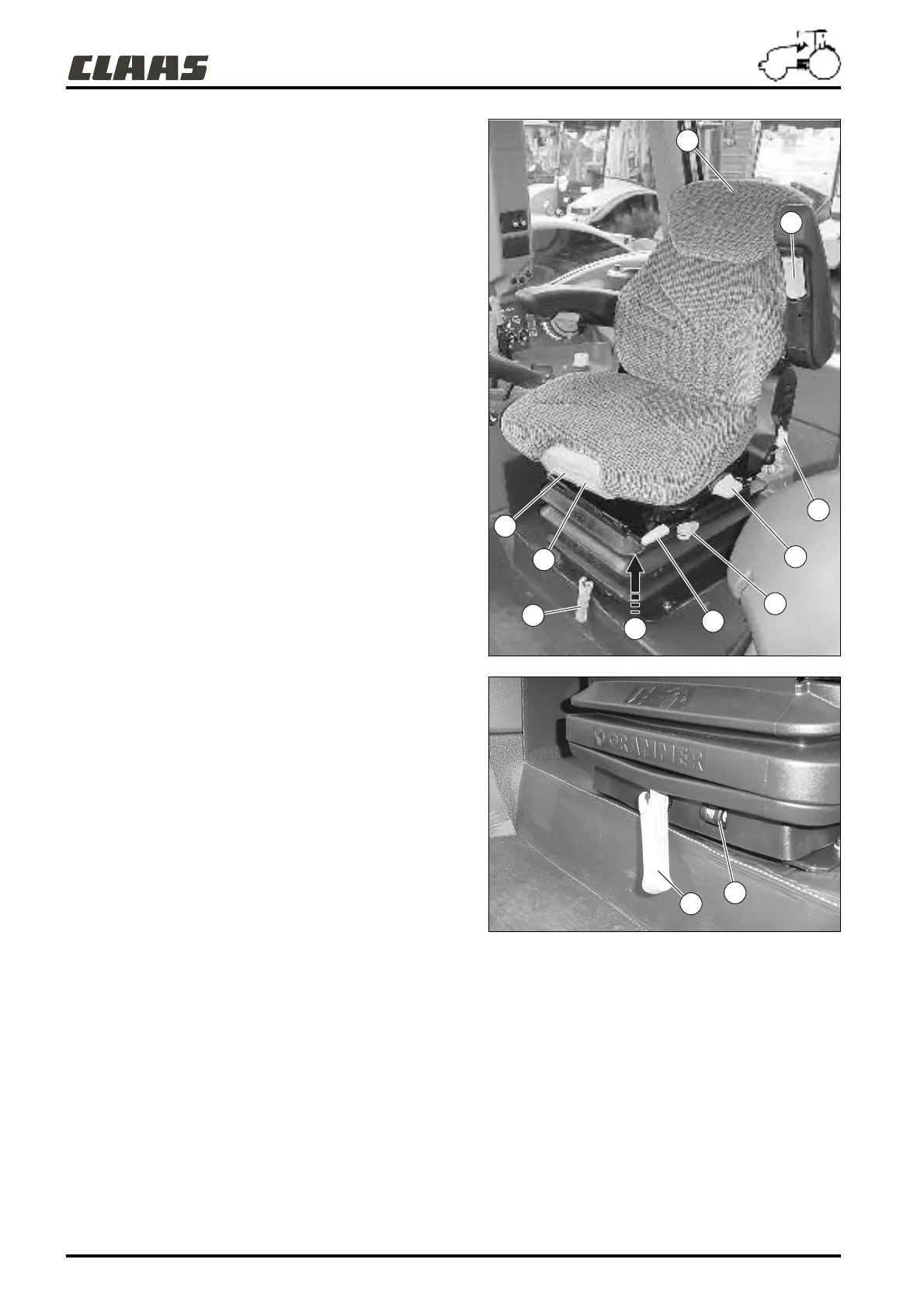

1 - Longitudinal adjustment: Lift lever (1) to release the lock. At
the chosen position, release the lever and check the lock is
engaged.
2 - Horizontal damper: To be used to absorb longitudinal
accelerations due to the use of the tractor on tracks and,
generally, for all work at more than 7 Km/h.
3 - Seat swivelling adjustment: Pull the handle (3) up to allow
seat rotation around its vertical axis.
4 - Backrest angle adjustment.
5 - Adjustable headrest.
6 - Armrest angle adjustment.
7 - Seat depth adjustment.
8 - Seat angle adjustment.
9 - Seat height adjustment. To adjust the height, turn the
handle (9) clockwise to move the seat up, and
counterclockwise to move it down.
10 - Indicator for the seat adjustment according to the driver's
weight.
11 - Seat height setting (3 positions). Pull the seat upwards.
