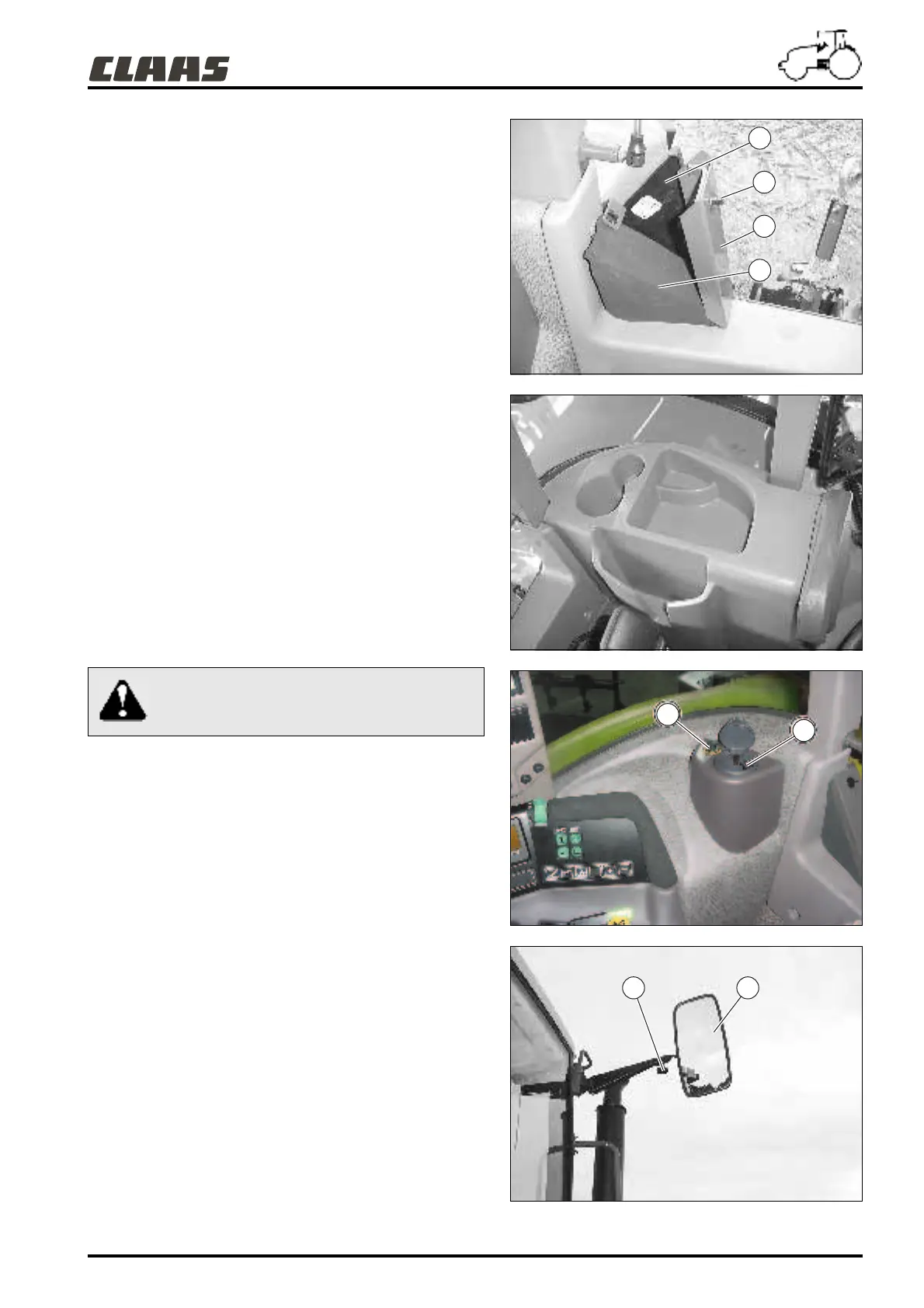

CABLE WAYS
- A panel (1) for cables to pass through is fitted in the lower part
of the rear hatch.
- Open the rear hatch.
- Turn the quick-release fastener (4) through 1/4.
- Swing the crossbar (2) away.
- Remove foam (3).
- Fit the control box wiring harnesses and replace parts (1) and
(2). If the harness does not take up much room, replace the
block of foam (3).
- Close the rear hatch.
STORAGE BIN
Positioned to the left of the seat, it is used for storing papers,
objects and bottles.
CIGAR LIGHTER AND ASHTRAY
Cigar lighter (5) and ashtray (6) are positioned on the right-hand
cabin console.
TELESCOPIC REAR VIEW MIRRORS
ADJUSTMENT
To extend the telescopic arm of the mirror (7), unscrew wheel (8).
