Claas ARES 656 - Instruments

ARES 506-606 - 02.2005 - GB
B.9

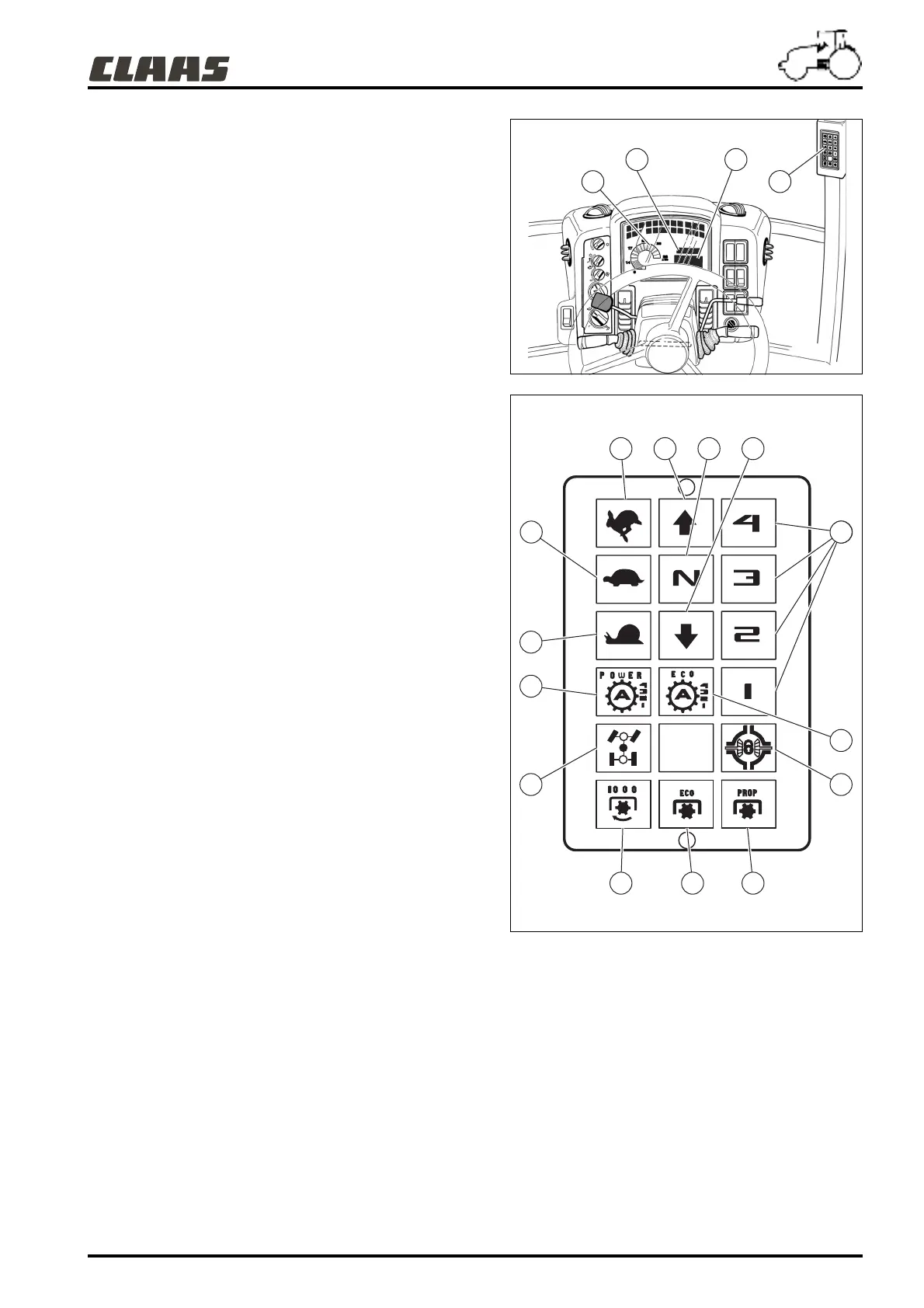

INSTRUMENTS
A - TACHOMETER
B - DIGITAL DISPLAY
- Real or theoretical forward speed.
- Coolant temperature indicator.
- Fuel level indicator.
C - DIGITAL DISPLAY
- Engine speed (rpm).
- Rear power take-off speed (rpm).
- Front power take-off speed (rpm).
- Total hour meter.
- Trip hour meter.
D - TRANSMISSION DISPLAY
1 - Road range selected.
2 - Field range selected.
3 - Crawling range selected.
4 - Forward gear indication.
5 - Neutral position indication.
6 - Reverse gear indication.
7 - Engagement of selected torque ratio.
8 - Engagement of POWER mode of Quadractiv.
9 - Engagement of economical mode of Quadractiv.
10 - Front axle engagement.
11 - Engagement of differential(s).
12 - Engagement of 1000 rpm power take-off.
13 - Engagement of economy power take-off.
14 - Engagement of power take-off proportional to advance.
601msn09
601msn01
D
A
C B
41
2
3
8
10
17
9
11
12 1413
5 6
