Claas ARES 656 - FRONT LINKAGE; FRONT POWER TAKE-OFF

ARES 506-606 - 02.2005 - GB
H.2

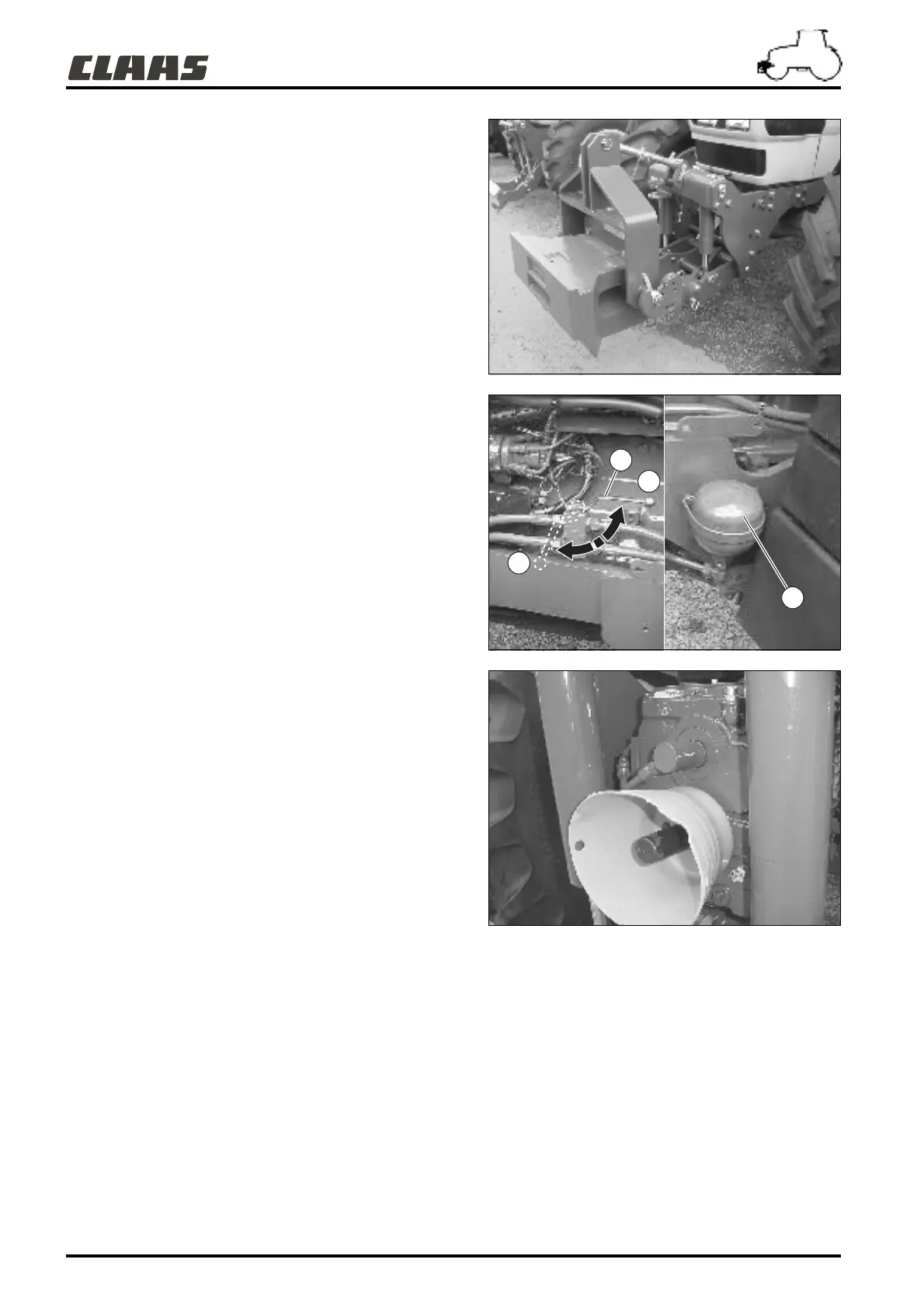

CHARACTERISTICS
FRONT LINKAGE
- 2 double-acting cylinders, controlled by the double-acting
auxiliary distributor located in the cab.
- Blocking the circuit by the external valve.
CAPACITY 2800 KG
- Automatic hooks, standard 3 (3/2 swivel).
- Foldable arms (Fixed or transport arm position).
CAPACITY 3800 KG
- Automatic hooks, standard 3 (3/2 swivel).
- Foldable arms (Fixed or transport arm position).
- Top thrust rod and nitrogen ball.
DAMPER
On the 3800 versions, a nitrogen ball damper (2) is adapted on
the "upwards" linkage supply circuit. This damper protects the
tractor beam when travelling with heavy loads on the road.
FRONT POWER TAKE-OFF
- Drive by direct connection to crankshaft.
- Electro-hydraulic clutch.
- Single-speed gear reducer.
- Power take-off rpm at engine rated rpm:
1100 rpm for 2200 engine rpm.
- 1" 3/8 inch output shaft, 6 splines.
- Continuous admissible power: 88,3 kW (120 hp).
- Direction of rotation: Clockwise or counterclockwise.
- Electric control with switch on right panel.
- Operating indicator and power takeoff rotation speed display
on instrument panel.
411msn02
411msn03
411hpn06
2
R
F
O
