ARES 506-606 - 02.2005 - GB
B.18

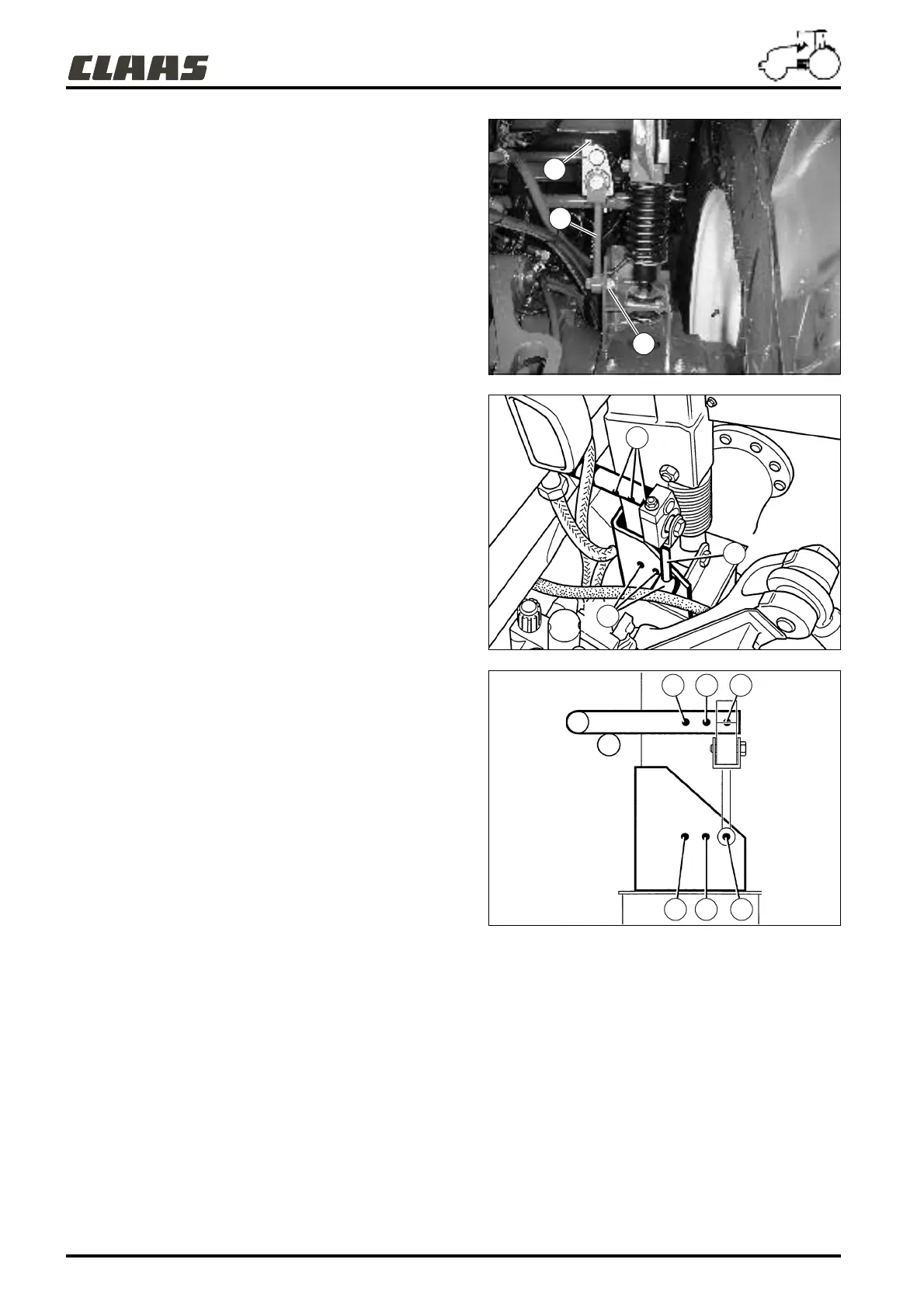

SUSPENSION ADJUSTMENT
ADJUSTMENT
- Put the tractor on flat and level ground.
- Undo screws (1) on both sides by several turns.
- Undo nuts (2) on both sides.
- Move the suspension arm (3) in parallel so that each of its
ends line up with holes and slots (4), (5).
- Each position corresponds to a suspension setting:
- Position A: Soft setting.
- Position B: Intermediate setting.
- Position C: Firm setting.
When the adjustment has been completed, retighten the
screws (1) and nuts (2) to 15 daN.m.
841msn07
841hsn13
841hsn14
1
2
3
3
4
5
C B
C B A
A
