ARES 506-606 - 02.2005 - GB
B.17

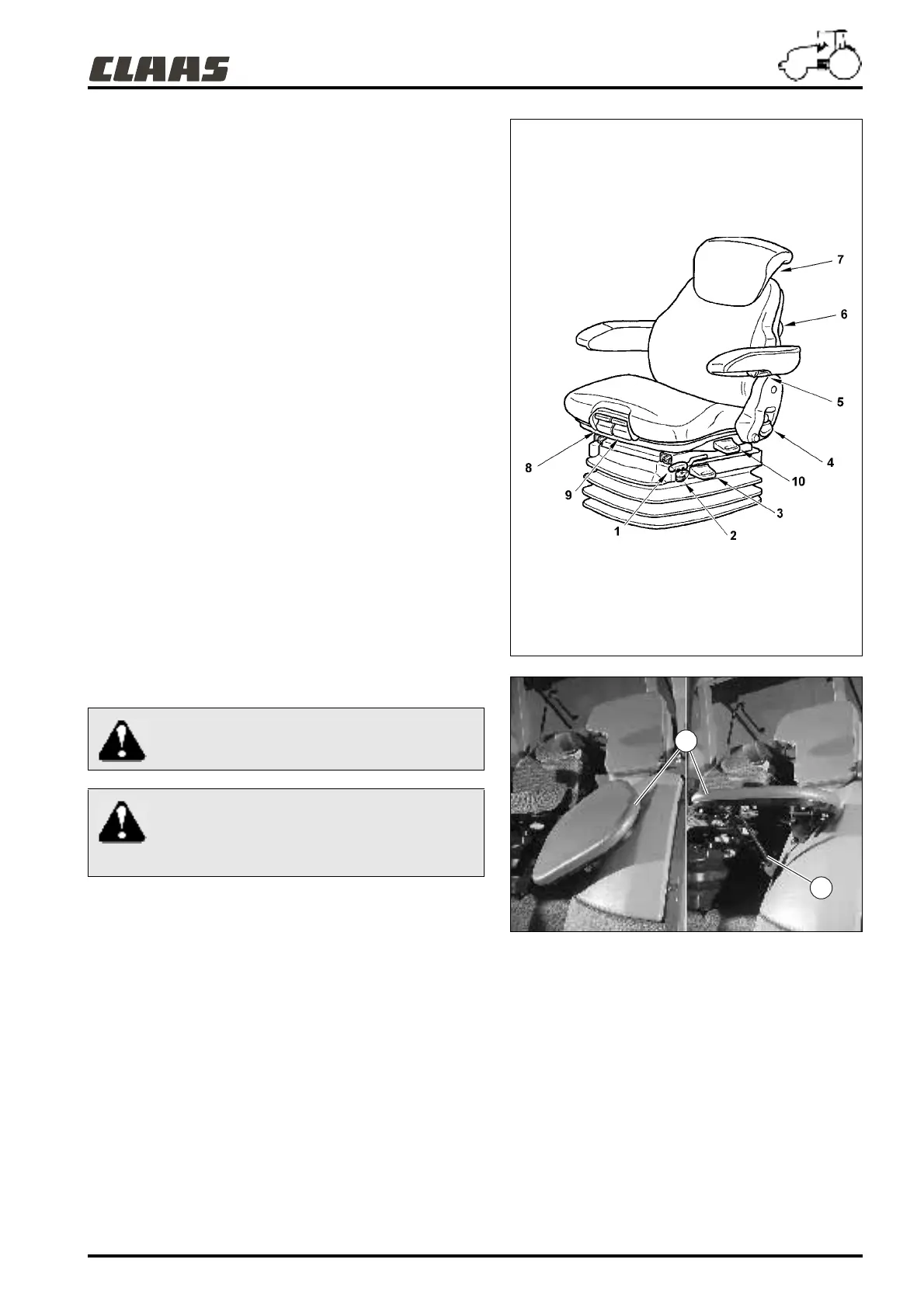

PNEUMATIC SEAT
1 - Longitudinal adjustment: Lift lever (1) to release the lock. At
the chosen position, release the lever and check the lock is
engaged.
2 - Horizontal damper: To be used to absorb longitudinal
accelerations due to the use of the tractor on tracks and,
generally, for all work at more than 7 Km/h.
3 - Height adjustment: Pull the handle (3) once to adjust the
weight. Wait for calibration to be completed, then pull the
handle up or down to adjust the seat height.
4 - Backrest angle adjustment.
5 - Armrest angle adjustment.
6 - Low backrest adjustment: Turn the handle to the left or to the
right to obtain low back support in height or depth.
7 - Adjustable headrest.
8 - Seat depth adjustment.
9 - Seat angle adjustment.
10 - Seat swivelling adjustment: Pull the handle (10) up to allow
seat rotation around its vertical axis.
PASSENGER SEAT
Positioned on the left of the driver it is essential for carrying a
passenger.
To unfold the passenger seat:
1 - Raise seat (B).
2 - Position the holding rod (A) on its support.
791hsn05
841hsn11
When carrying a passenger it is obligatory to
travel with the doors correctly closed.
Never leave a child (or animal) in your vehicle
with the key in the ignition. A child or animal
could start the engine or operate electrical or
hydraulic equipment.
B
A
