Claas ARES 656 - INSTRUMENTS AND CONTROLS (DASHBOARD)

ARES 506-606 - 02.2005 - GB
B.3

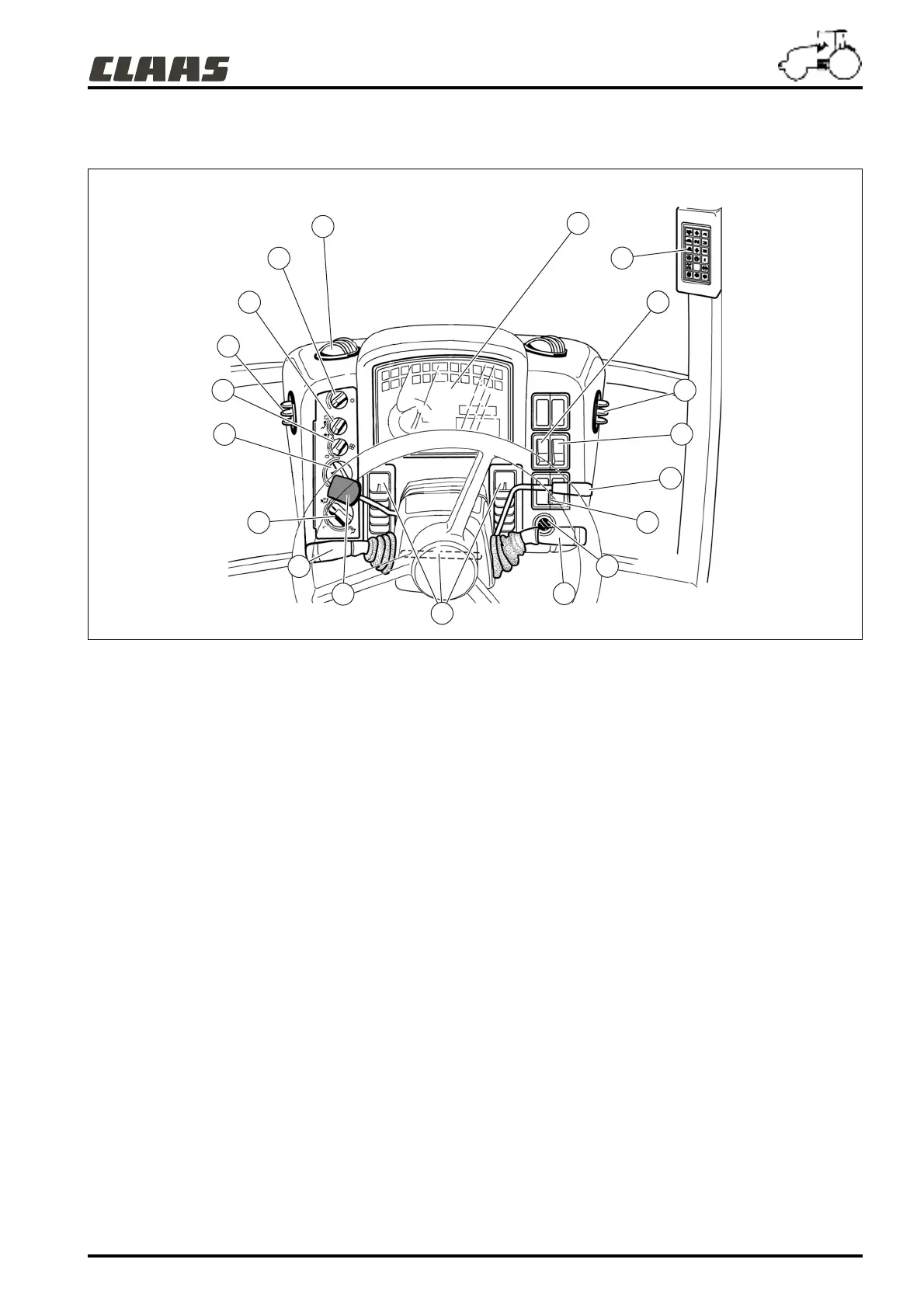

INSTRUMENTS AND CONTROLS (DASHBOARD)
761msn01
1 - Reverser lever under torque.
2 - Multifunction control:
- Direction indicators.
- Lights.
- Horn.
3 - Air distribution adjustment knob.
4 - Heating temperature adjustment knob.
5 - Fan speed adjustment knob.
6 - Heating, ventilation and air conditioning functions
selector knob.
7 - Cooling temperature adjusting knob.
8 - Heating vents.
9 - Windscreen defrosting vents.
10 - Rotating beacon control switch.
11 - Hazard flasher switch.
12 - Instrument panel.
13 - Spare position.
14 - Main switch (key operated).
15 - Multifunction control:
- Front screen wiper.
- Front screen washer.
- Digital display (instrument panel).
16 - Steering wheel adjuster.
17 - Transmission display.
17
11
910
12
1
9
7
9
5
4
3
6
2
9
16
13
14
15
8
