ARES 506-606 - 02.2005 - GB
B.7

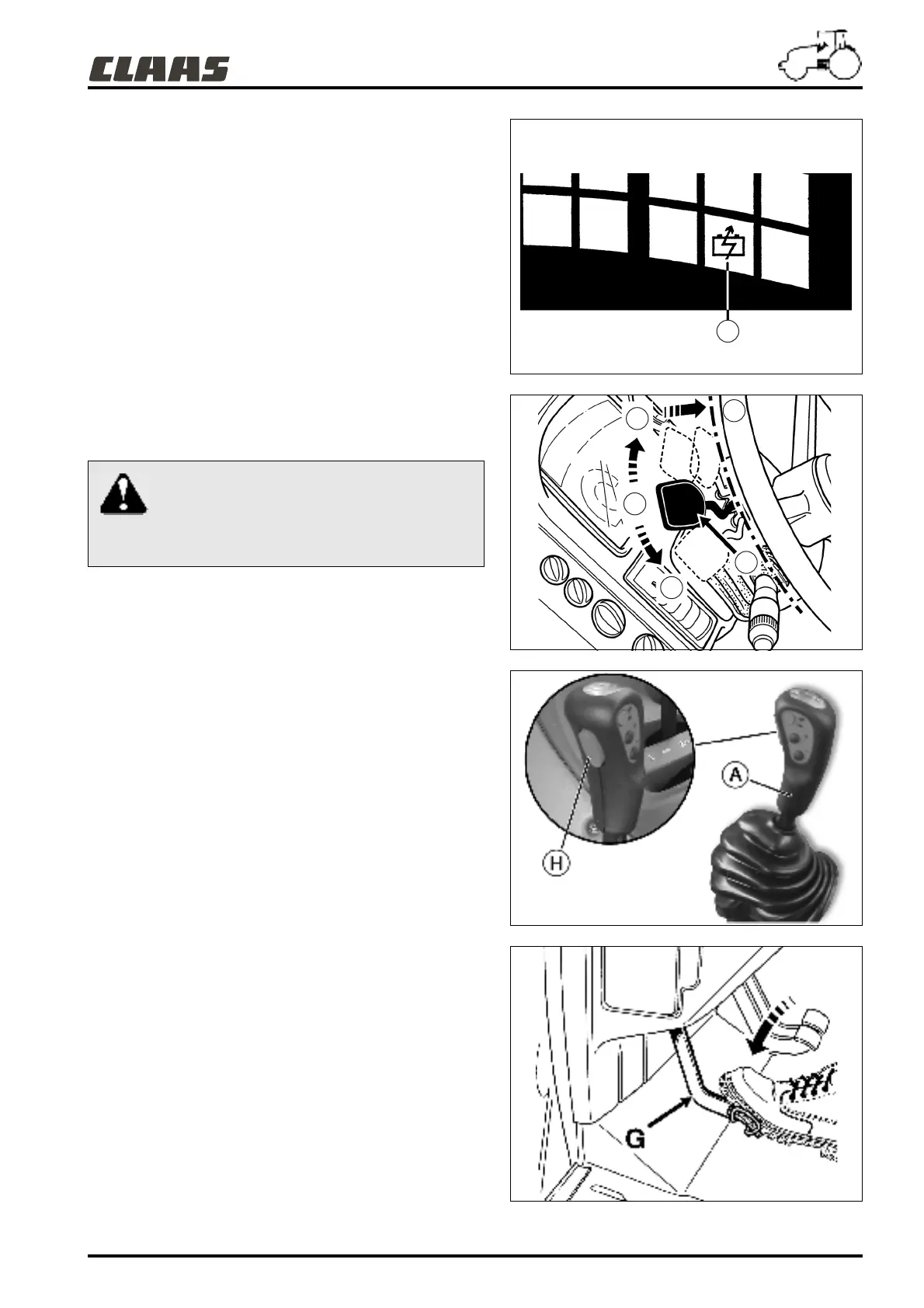

BATTERY STATE WARNING LIGHT (8)
This light comes on when the battery voltage is below 10,5. Low
voltage causes some malfunctions. Have the battery and the
electrical circuit checked by your approved CLAAS dealer. The
Drivetronic controls the correct operation of the transmission.
The state of the diagnostic indicator (8) can indicate 3 cases of
anomalies:
1.
Diagnostic indicator flashes slowly
When the defect appears, the tractor reacts jerkily during
operations. In spite of this, work can continue. This defect can
make it impossible to change direction.
2.
Diagnostic indicator flashes rapidly + alarm
In this situation, do not place the reverser lever (F) in neutral (II),
or declutch to change gear with the lever (F) or switch (H) located
on the gear lever (A) because you risk completely immobilising
the tractor. If you have to stop, use only the clutch pedal (G).
3.
Diagnostic indicator on permanently + alarm
In this situation, the tractor is immobilized and the neutral
indicator is steady on. This state is the transmission being placed
in safety by the Drivetonic.
Important: If one of the defects described above occurs
during tractor operation, consult your CLAAS approved
repair agant.
601hsn23
601hsn24
322hsn01
322hsn02
You can only travel in one direction, the one
engaged when the defect appeared. If you have
to move the tractor, take all necessary
precautions, remembering that no reversal of direction
will be possible.
8
II
III
I
IV
F
