ARES 506-606 - 02.2005 - GB
C.6

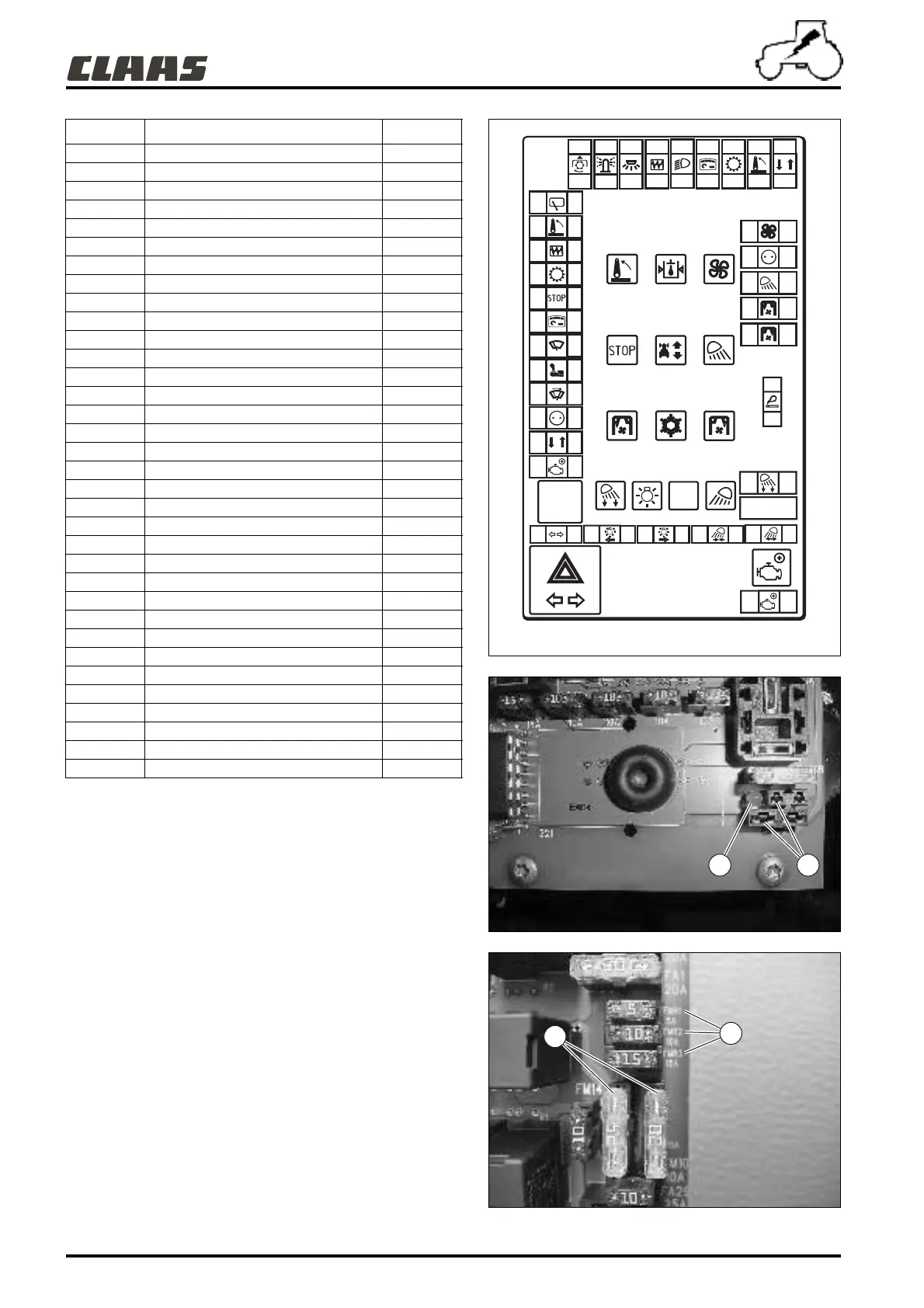

FUSE TESTER
The device tests 2 types of fuses.
- Position the fuse in (A).
- Switch on the ignition.
- The fuse is in good condition when light (B) comes on.
SPARE FUSES
The board has 5 spare fuses:
- FMR1, 5 A ; FMR2, 10 A ; FMR3, 15 A (C).
- FAR1, 25 A ; FAR2, 20 A (D).
605msm36
601hpn03
601hpn21
Ref
Designation of fuses Rating
1
Right-hand cooling fan 20 A
2
Roof light and clock 5 A
3
Left-hand cooling fan 20 A
4
Engine injection 15 A
5
Heating fan 20 A
6
Main and dipped headlights 15 A
7
Instrument panel 5 A
8
Electrical socket 25 A
9
"DRIVETRONIC" Central Processing Unit 15 A
10
Wing working lights 10 A
11
Rear work lights 20 A
12
Interior front working lights 10 A
13
Exterior front working lights 10 A
14
Cigar lighter, clock, radio 10 A
15
Engine injection 15 A
16
Rotating beacon 10 A
17
Front power take-off and pneumatic seat 10 A
18
Rear windscreen wiper 10 A
19
"DRIVETRONIC" Central Processing Unit 15 A
20
Electronic lift (and radar) 10 A
21
Instrument panel and diagnostics socket 5 A
22
Stop lights 15 A
23
Flashing indicators and hazard warning lights 15 A
24
Start-up circuit 25 A
25
Left-hand lights 10 A
26
Right-hand lights 10 A
27
Front windscreen wiper, self-parking 10 A
28
Front windscreen wiper and timer 10 A
29
Start-up fuse 25 A
30
Linkage 10 A
31
Socket 25 A
32
Electro pilot distributor 10 A
33
Suspended front axle 10 A
34
Suspended front axle 10 A
17 16 2 4 6
5
8
11
1312
14
3
1
7 9 30 34
10A
10A
10A
10A
10
5A 15A
15A
15A
15A
15A
15A
5A
5A
5A
15A 10A
10A
10A
10A
10A 10A 10A10A
10A
10A
10A
25A
23
25A
25 26
25A 29
20A
20A
20A
20A
18
20
15
22
19
21
31
28
32
27
33
24
10A
R10 R12 R5
R14
221
R7 R4 R6
R15R9
R8
R13
R3 R1
R11 R2
605msm36
AB
C
D
