ARES 506-606 - 02.2005 - GB
F.5

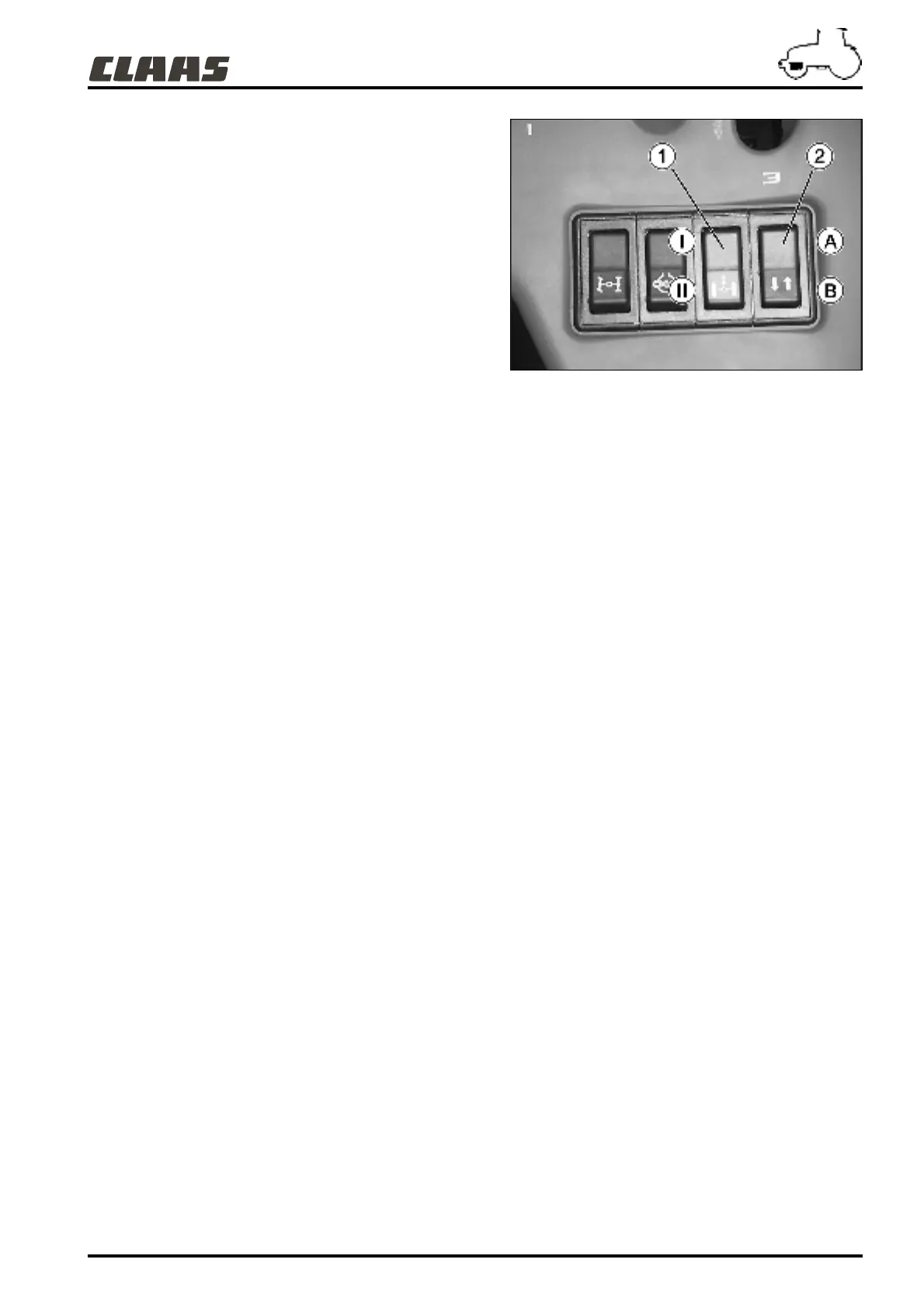

- Position (II) = suspension activated
2 modes are accessible in this position:
1. Automatic mode:
• The switch's warning light is on.
• The nose of the tractor is in a medium position.
This mode is for transit operations to improve driver comfort.
Note: Above 14 km/h, use this mode to improve comfort.
2. Manual:
• Activate switch (2) towards (A) to raise or towards (B) to
lower the tractor nose.
• The light of switch (1) is off.
The maxium up position must only be used occasionally and
certainly not in difficult conditions.
Note: To return to the automatic function, simply give one
press on switch (1) towards (II). If the light of switch (1)
flashes, consult an authorised CLAAS agent.
602hsn03
