Clarion NX501E User Manual

66 NX501E/NZ501E
English
Owner’s Manual
See next page for how to connect the parking brake cord.
15A
A-1
A-2
A-3
A-4
A-5
A-6
A-7
A-8

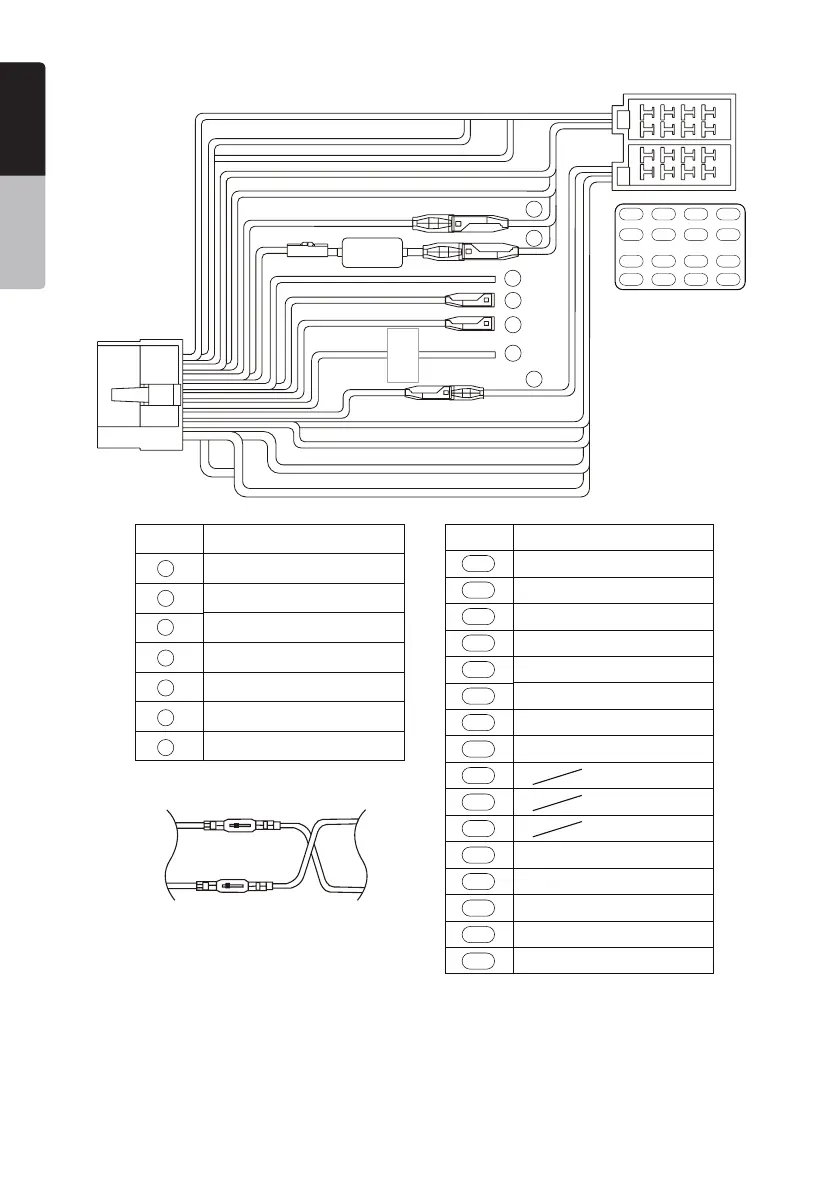

B-1
B-2
B-3
B-4
B-5
B-6
B-7
B-8
Description
No.
A-1
A-2
A-3
A-4
A-5
A-6
A-7
A-8
B-1
B-2
B-3
B-4
B-5
B-6
B-7
B-8
Rear right-
Rear right+
Rear left-
Rear left+
Front left-
Front left+
Front right+
Front right-
GND
Illumination
Auto antenna
+12V accessory
+12V main power
+12V main power (
Yellow)
Auto antenna (Blue)
Phone interrupt (Brown)
Parking (
Grass-green)
Remote (Blue/White)
Reverse (Purple/White)
+12V accessory (Red)
No. Description
3
4
5
6
7
2
1
3
4
5
6
7
2
1
!!!!Warning!!!!
Parking brake safety
device must be connected
for complete operation
Yellow
Red
Yellow
Red
For VW and Audi: Change wiring as above
Note:
*1: Connecting the PHONE INTERRUPT terminal
The phone interrupt will mute the audio if the lead receives a negative or ground signal.

Clarion NX501E Specifications

General

MP3 playback	Yes
Audio formats supported	MP3, WMA
Supported radio bands	AM, FM
Product color	Black
Audio output channels	4.0 channels
Maximum power per channel	50 W
Display type	LCD
Display diagonal	6.2 \
Bluetooth profiles	A2DP, AVRCP, DUN, HFP, HSP, OPP, PBAP
I/O ports	1x USB 2x A/V In
