Connecting the parking brake cord
Connect the cord to parking brake lamp ground in the meter panel.
Note:
• Connecting the parking brake cord to lamp ground allows you to watch iPod/iPhone video/DVD video/AV input when
the parking brake is engaged.
• When the parking brake cord is not connected, the monitor will not show any video sources.
• If “AUDIO ONLY” appears on the screen just after turning on the ACC power of the car, release the parking brake
while confirming safety, and then engage the parking brake again.
Connecting the accessories
• Connecting to the external amplifier
The external amplifiers can be connected to the 6 channel RCA output connections. Ensure that the connectors
are not grounded or shorted to prevent damage to the unit.
• Connecting to iPod/iPhone device
The iPod/iPhone device can be connected to dedicated iPod/iPhone connection on the main unit. For detailed
information, refer to the instruction sheet or manual for the iPod/iPhone cable.
Note:
• This unit may not support all functions of all iPod/iPhone devices.
• The iPod/ iPhone connection will charge your iPod/iPhone unless the iPod/iPhone battery is completely depleted. If
the specified cord of the cellular phone is connected to the phone interrupt cord of the main unit, the audio mute is
activated when cellular phone in use.
• Connecting to SIRIUS Satellite Radio Receiver
When SIRIUS Satellite Radio Receiver is to be connected, use the dedicated connector. For detailed
information,refer to the instruction manual of the SIRIUS Satellite Radio Receiver.
Parking brake lamp
cord to battery
Electro-tap
Parking brake
signal cord
Parking brake
signal cord
Stopper
Parking brake
signal cord
Parking brake
Parking brake cord
(Grass-green)
Parking brake cord
(Grass-green)

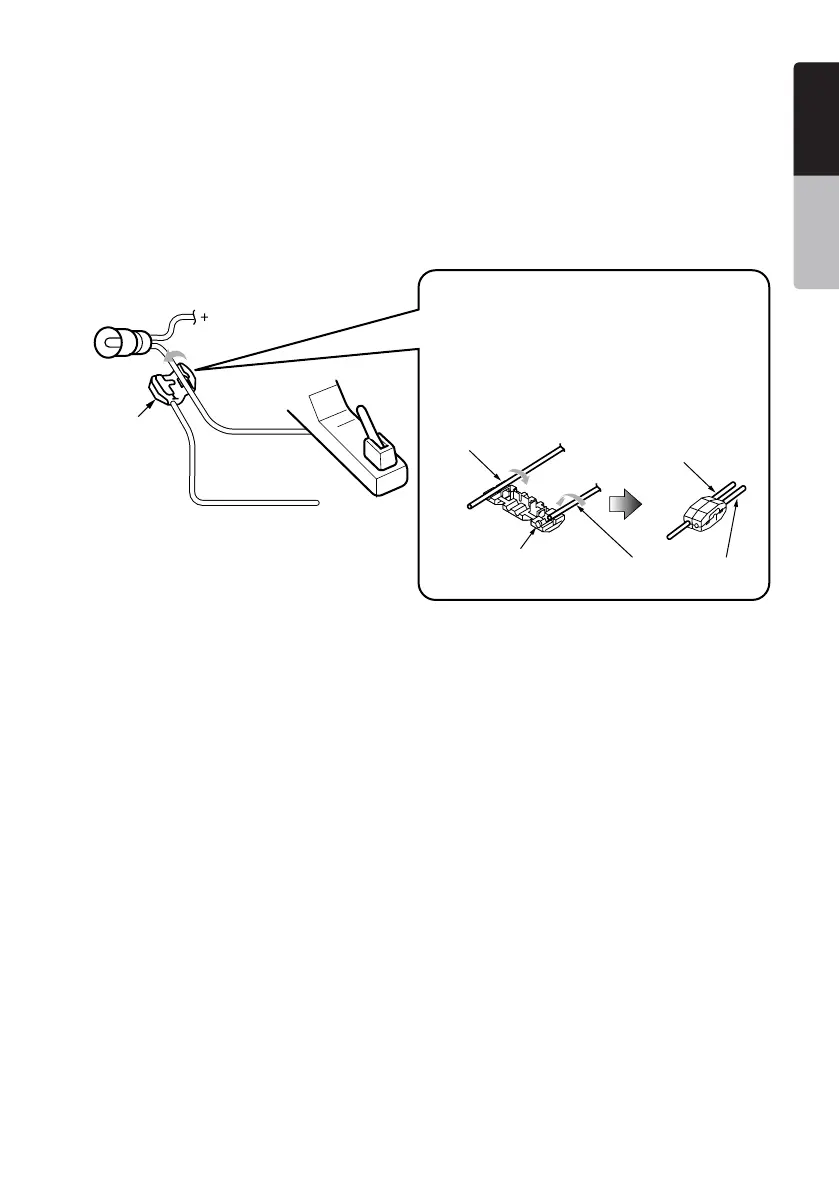

How to attach the electro-tap
1. Place the Parking brake cord at the stopper, and
fold it back in the direction of the arrow
2. Pass the Parking brake signal cord through, and
fold it back in the direction of the arrow.
