Battery charger disassembly/assembly
Disassembly
1.
Drain the recovery tank.
2.
Turn the ignition key to “0” and remove it.
3.
Make sure that the machine cannot move independently.
4.
Turn the recovery tank sideways, then disconnect the battery connector.
5.

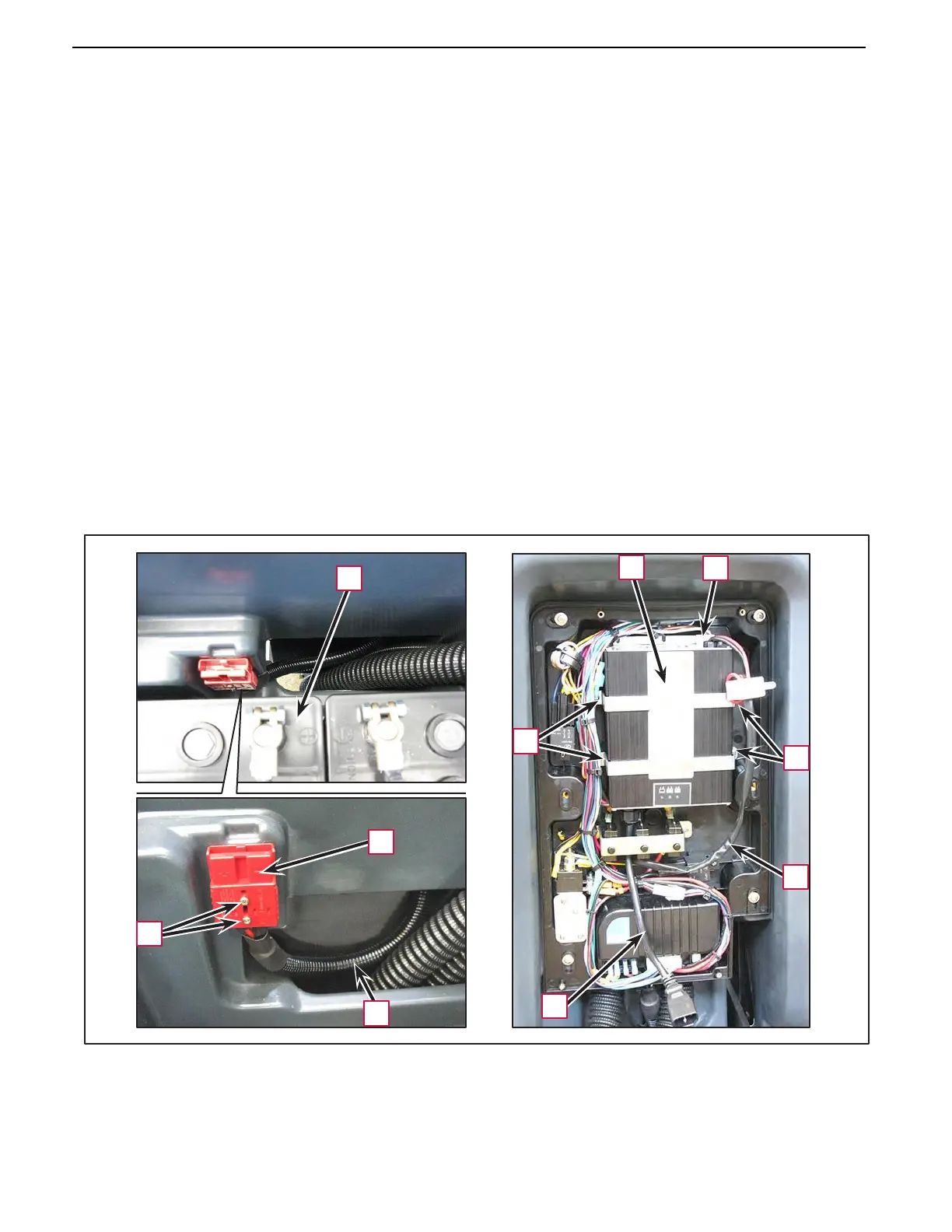

Disconnect the terminals of the right-hand battery (A), then remove it using suitable lifting equipment.
6.
Unscrew the screws (B) and disconnect the battery connector (C).
7.
Remove the rear panel (see the procedure in the relevant paragraph).
8.
Unscrew the fastening screws (D) for the battery charger (E), then move it.
9.
Disconnect the battery charger electrical connection (F).
10.
Disengage the battery charger wiring (G) from its seat.
11.
Disengage the battery charger wiring (H) from its seat.
12.
Remove the battery charger (E).
Assembly
13.
Assemble the components in the reverse order of disassembly, and note the following.
•
If a new battery charger is installed, it must be set for the type of batteries installed on the machine,
WET or GEL/AGM, before use.
