INSTALLATION AND OPERATION
APPLICATION
The CB Falcon is a boiler control system available for steam
or hydronic applications. The Falcon is able to provide heat
control, flame supervision, circulation pump control, fan
control, boiler control, and electric ignition function. It will also
provide boiler status and error reporting.
Multiple boilers can be joined together to heat a system
instead of a single, larger burner or boiler. Using boilers in
parallel is more efficient, costs less, reduces emissions,
improves load control, and is more flexible than the traditional
large boiler.
CB Falcon system may consist of:
833-3639/3871 or 833-3578 Control Device
Touchscreen Display—required for setup and Modbus communication.
Flame Rod or UV flame sensor
Temperature Sensor, NTC Type
Limit Sensor, NTC Type, dual element
833-3578 uses a Steam Pressure Sensor, 0-15 or 0-150 psi - 4-20mA source type

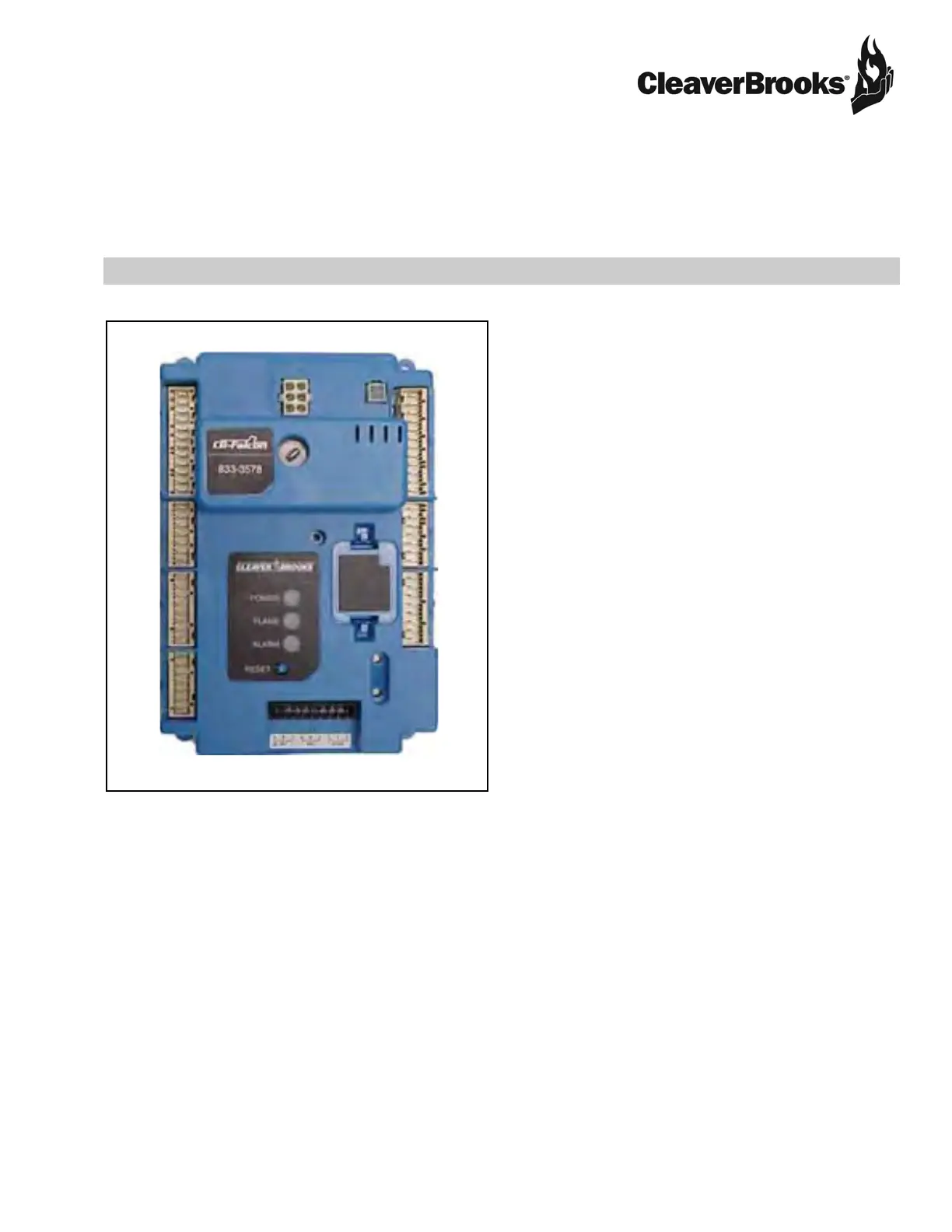

CB Falcon
Boiler Control System
833-3578 Steam
833-3639 & 833-3871 Hydronic
