CleaverBrooks CFC-1000 - Wiring Diagrams

Section 2 — Installation
2-34 Part No. 750-263
I. WIRING DIAGRAMS

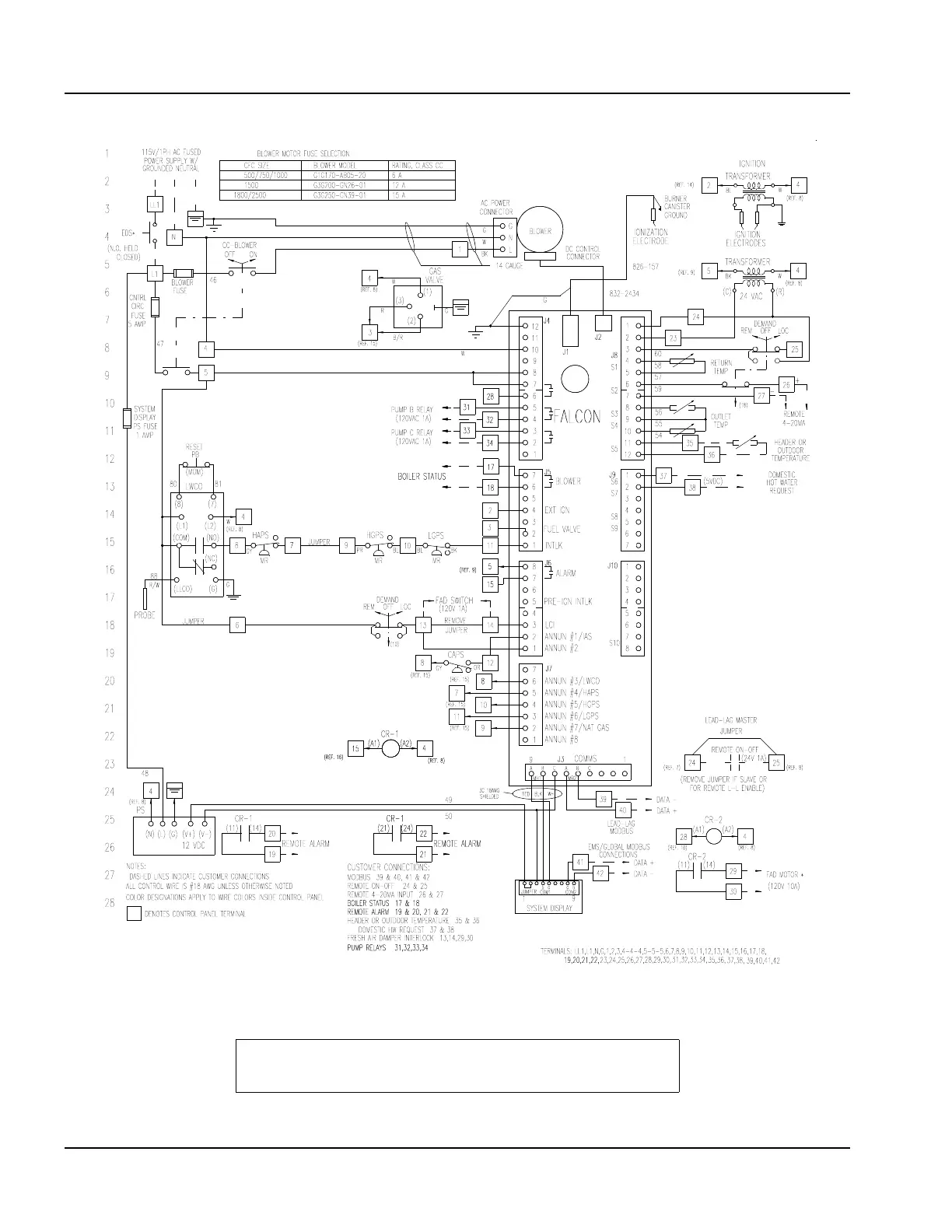

Figure 2-42 CFC Wiring Diagram - single fuel units
Note: Wiring diagrams shown are examples only.
Installations may vary. For specific installations
consult the wiring diagram provided with the boiler.
