Section 4 — CFC Commissioning
4-4 Part No. 750-263
E. CB FALCON DISPLAY/OPERATOR INTERFACE
The CB Falcon display/operator interface is mounted at the left side
of the control panel for convenient access to all operating controls.
1. Home Page
Apply power to the boiler. The Home page will appear on the CB
Falcon display.
Each CB Falcon in the hydronic system is represented on the Home
page by an icon and name.
2. Status Page
Pressing the Falcon icon takes the user to the Status page, which
summarizes boiler status and allows navigation to the configuration,
operational, and diagnostic areas of the CB Falcon interface.
The Demand display will show one of the following:
Burner switch off
Off (burner switch on but no demand)
Central Heat
Domestic Hot Water (if configured)
Burner state shows the currently active step in the burner operating
sequence.
The central portion of the display can be toggled between the
following:
Pumps shows the on/off status of boiler and system pumps.
Modulation shows fan speed RPM settings for Demand, Limited,
and Override rates
Setpoints shows the ON, Modulation, and OFF temperature
setpoints.

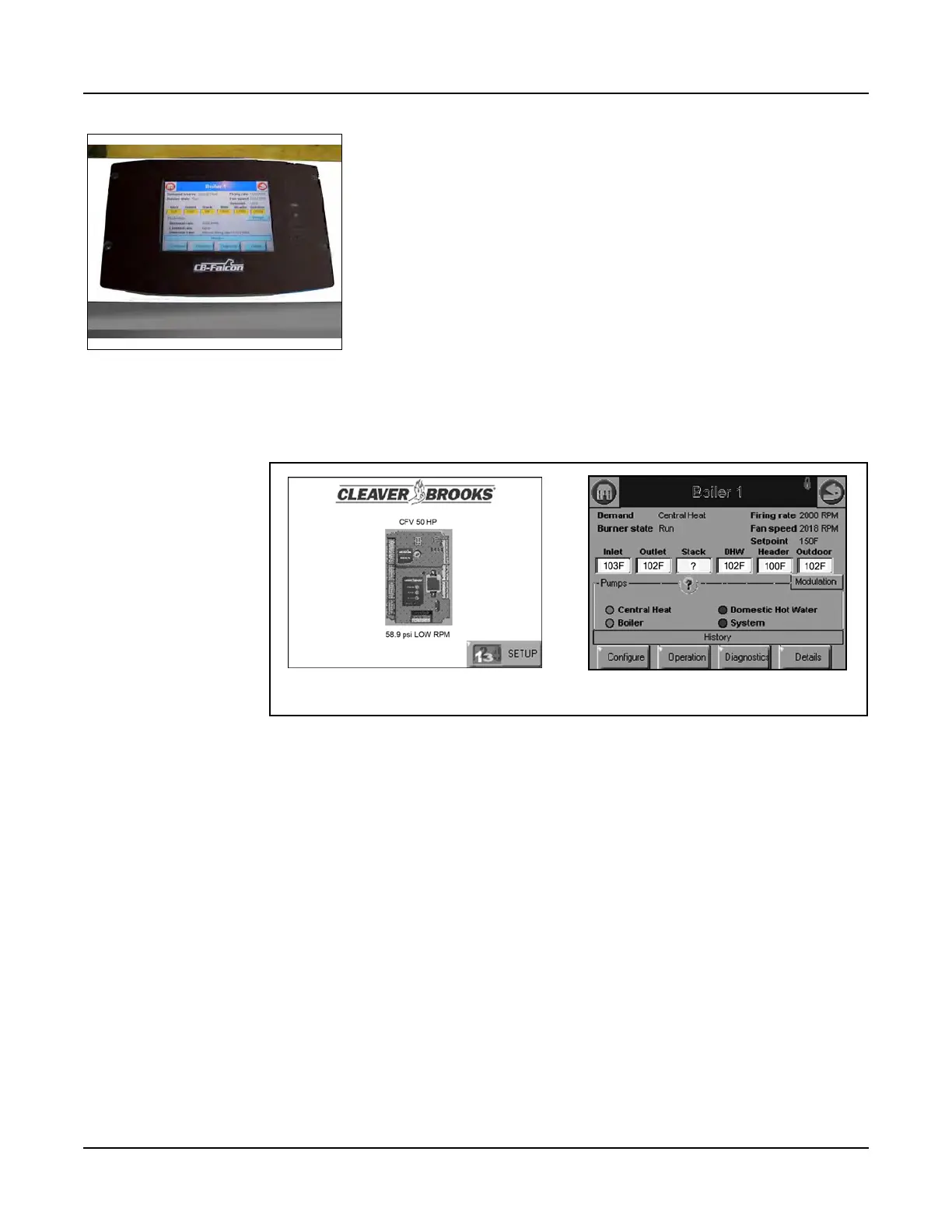

Figure 4-4 CB Falcon Display/
Operator Interface
Home page
Status page
