CB FALCON
9 750-265
SPECIFICATIONS
Electrical Ratings:
Operating voltage
24Vac (20 to 30 Vac, 60 Hz ±5%)
Connected Load for Valve and annunciator functions:
24Vac, 60Hz
120Vac (+10%/-15%), 60Hz (±5%)
Model Specific
Corrosion:
Falcon should not be used in a corrosive environment.
Operating Temperature: -4°F to 150°F (-20°C to 66°C)
Storage/Shipping Temperature: -40°F to 150°F
(-40°C to 66°C).
Humidity:
Up to 95% Relative Humidity, noncondensing at 104°F for 14
days. Condensing moisture may cause safety shutdown.
Vibration: 0.0 to 0.5g Continuous (V2 level)
Enclosure: Nema 1/IP40.
Approvals:
Underwriters Laboratories, Inc. Component Recognized: File
No. MP268 (MCCZ). 833-3639 and 833-3578 are certified
as UL372 Primary Safety Controls. 833-3639 is rated as a
UL353 limit-rated device when using the dual element limit-
rated NTC sensors.
CSD-1:
Meets CSD-1 section CF-300 requirements as a Primary
Safety Control.
Meets CSD-1 section CW-400 requirements as a Temperature
Operation control.
Meets CSD-1 section CW-400 requirements as a Temperature
High Limit Control when configured for use with 10kohm
NTC sensors.
Federal Communications Commission, Part 15,
Class B.Emissions.
Dimensions: See Fig. 2.

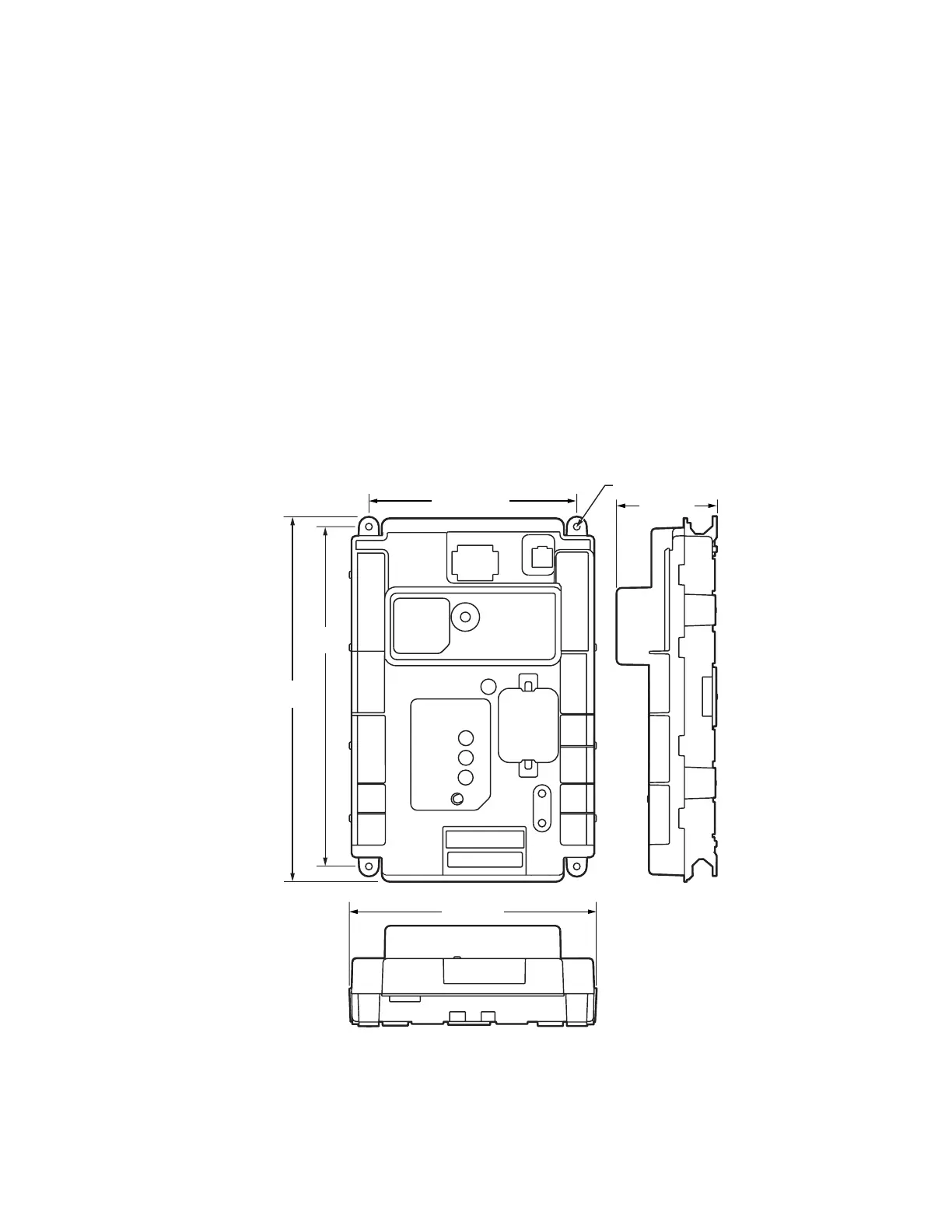

Fig. 2. Falcon dimensions in in. (mm).
[2] 5-19/64 (135)
9-21/64
(237) MAX
[4] Ø 3/16 (5) MAX
2-19/32 (66)
6-21/64 (161)
[2] 8-21/32
(220)
