833-3640 PROGRAM MODULE
OPERATION
1. Remove the dust cover from the CB Falcon Hydronic or
CB Falcon Steam Control and install the 833-3640
Program Module.
2. The CB Falcon may be powered while installing
(or removing) the PM.
3. When the PM and the CB Falcon make
connection,the status LED will blink on the PM.
4. Once the PM is installed, and the LED is blinking, the
Backup or Restore functions are available. Go to the
Falcon operator interface Home screen (see Fig. 1).

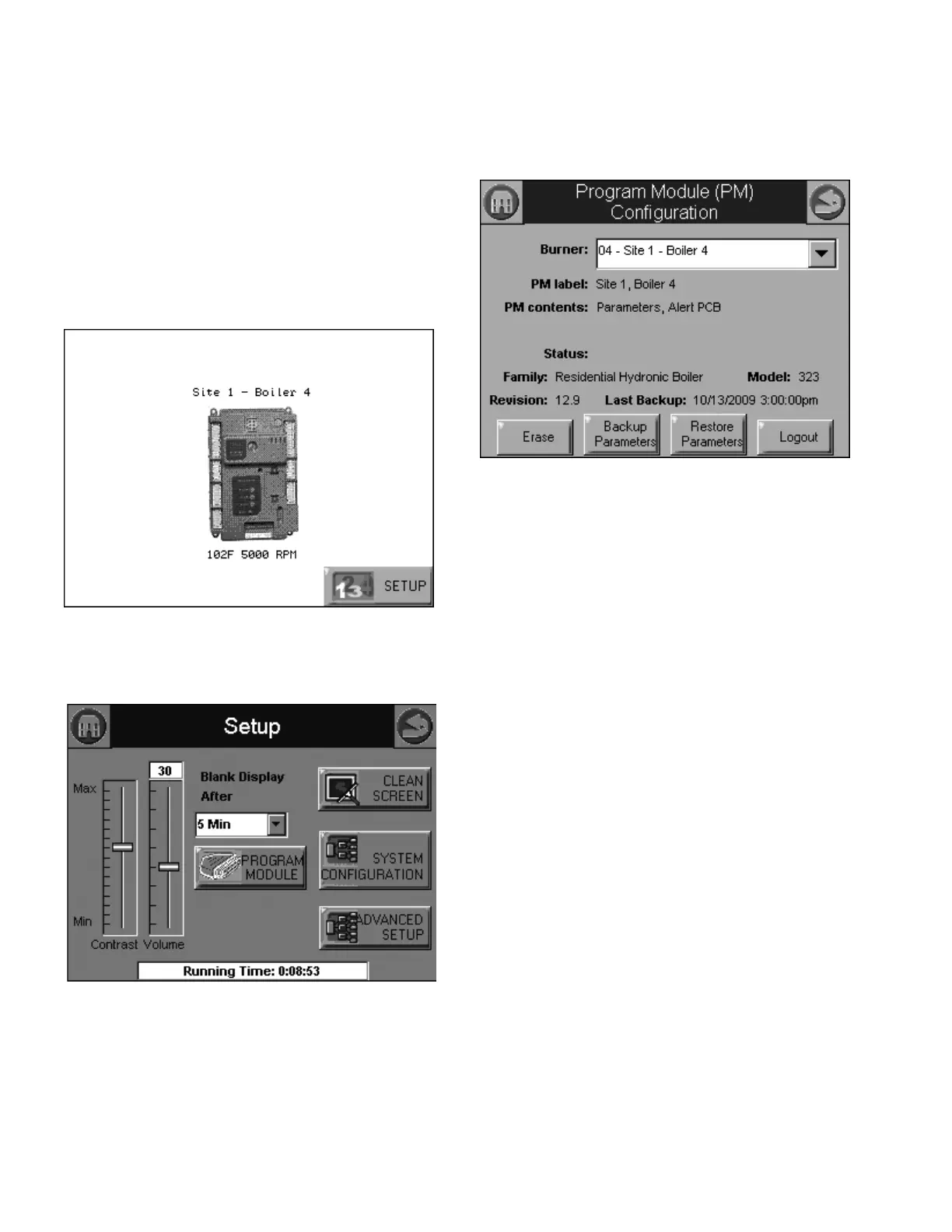

Fig. 1. Home page.
5. Press the Setup button. The screen shown in Fig. 2 will
appear.
Fig. 2. Setup page.
6. Press the Program Module button on the Setup screen,
as shown in Fig. 2.
7. Select the burner that contains the Program Module you
will be working with, as shown in Fig. 3.
Fig. 3. Program Module Configuration page.
Button
Actions
NOTE: An installer password will be required to perform the
below functions:
• Erase—will erase the contents of the installed Program
Module for the selected Burner.
• Backup—will copy non-safety parameter values and
Backup Control Header data from the CB Falcon installed
in the Burner location noted and save the data to
the Program Module.
• Restore—will transfer all “Backup” non-safety parameter
data from the Program Module to the CB Falcon
installed in the selected Burner.
When completed, the Program Module may be removed and
installed in another CB Falcon for configuration of non-safety
parameters or removed and stored for Backup should the
original CB Falcon need to be replaced for any reason.
Install the Dust Cover into the CB Falcon to keep foreign
material from getting into the Program Module Connector.
750-244 2
