BODYANDTRIMRearBody–Four-PassengerVehicles
4
FOLDDOWNSEAT
FoldDownSeatRemoval
1.Removethenuts(2)(Figure4-15,Page4-19).
2.Removethenuts(3).
3.Removethefolddownseat(1).

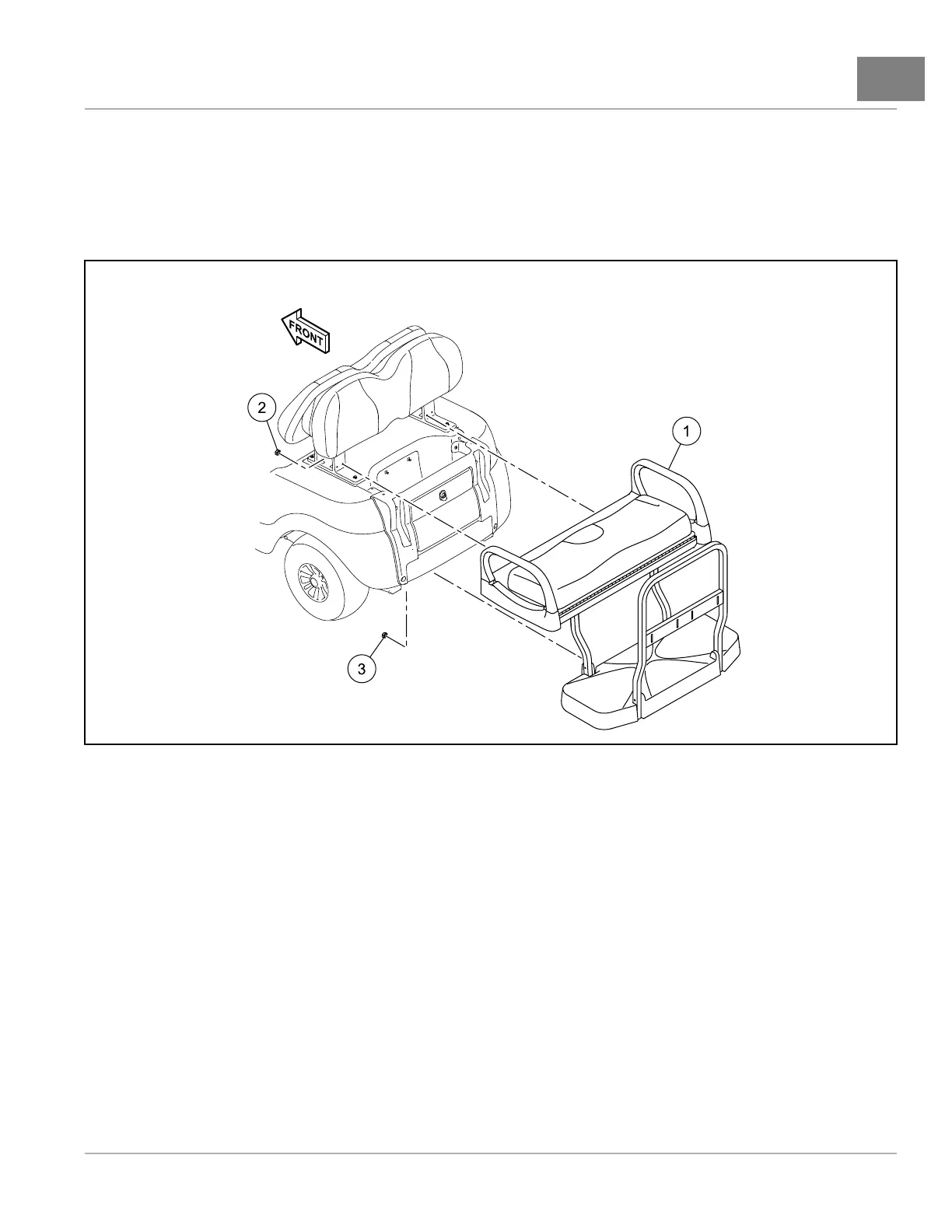

Figure4-15FoldDownSeatRemoval/Installation(Four-PassengerVehicles)
FoldDownSeatDissassembly
1.Removethenuts(1)fromthearmrests(2)(Figure4-16,Page4-20).
2.Removethearmrests.
3.Removethenuts(3)andbolts(4)fromthebasebrackets(5)(Figure4-17,Page4-21).
4.Removethebasebrackets.
5.Removethenuts(6),bolts(7),andwashers(9).
6.Removetheseatbase(10)fromthebumpersupport(11).
7.Removethenuts(12)andbolts(13)(Figure4-16,Page4-20).
8.Removethecapnuts(14),washers(15),andbolts(16).
9.Removethebumpersupport.
10.Removethenuts(17)andbolts(18)(Figure4-18,Page4-22).
11.Removethecapnuts(19),washers(20),andbolts(21).
12.Removethegrabbar(22)fromthefootrest(23).
FoldDownSeatAssembly
1.Installinthereverseorderofremoval.
2.Tightenthebolts(7,13,and16)to78lb·in(8.8N·m)(Figure4-16,Page4-20)and(Figure4-17,Page4-21).
2018OnwardMaintenanceandServiceManualPage4-19
