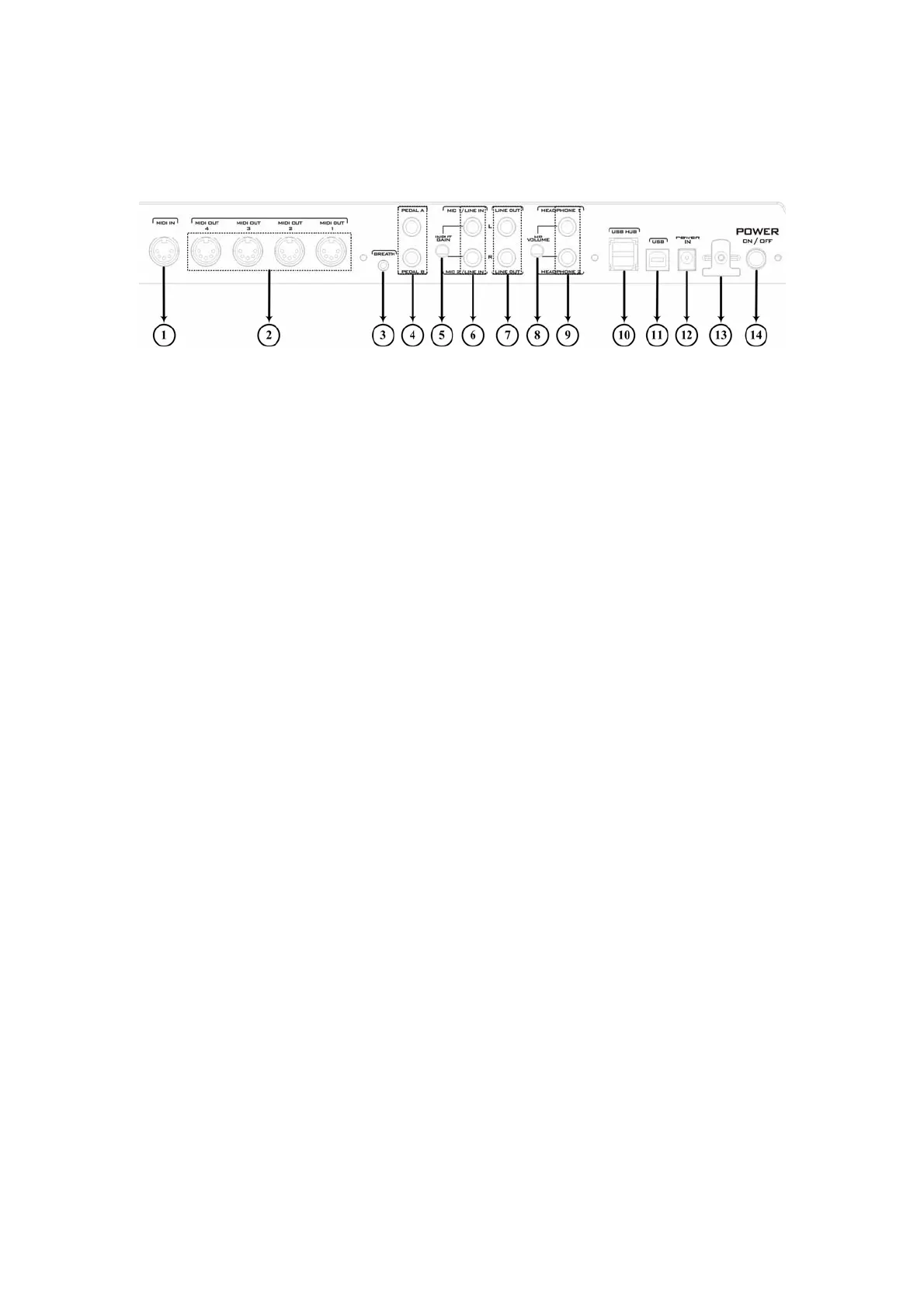

1.2 Rear panel
01． MIDI IN port x1
02． MIDI OUT ports x4
03． Breath control (BC) jack: 1/8" TRS x1, compatible with YAMAHA BC3.
04． Pedal jacks: 1/4" TRS x2, each one can be used for volume or sustain pedal.
05． Input gain for Mic/Line in.
06． MIC/LINE IN jacks: 1/4" TS x2
07． LINE OUT jacks: 1/4" TS x2
08． HP VOLUME: Headphone volume
09． HEADPHONE jacks: 1/4" TRS x2
10． USB HUB port: compliance with standard USB 1.1 for USB expansion
11． USB port: to make computer connection for MIDI/Audio data transfer
12． POWER IN port: connect the AC adaptor here
13． POWER ON/OFF switch: press down the switch to turn the instrument on; press
again and release the switch to turn it off.
