TT-5622B 2-Wire Cradle

98-127093-H Chapter 4: Connectors and pin-out 4-11

4444

4.3.2 2-Wire Cradle connector to SBU

Connector drawing

Connector functions

The 9 pin Sub-D male connector on the short cable at the end of the 2-Wire Cradle

connects the following signals on the SBU:

• Analogue 2-wire standard POTS interface for Voice/Fax/Modem/secure voice.

Pin-out for 2-Wire Cradle connector to SBU

The 2-Wire Cradle connector to connect to the SBU has the following pin-out:

The other two connectors are standard POTS RJ11 connectors.

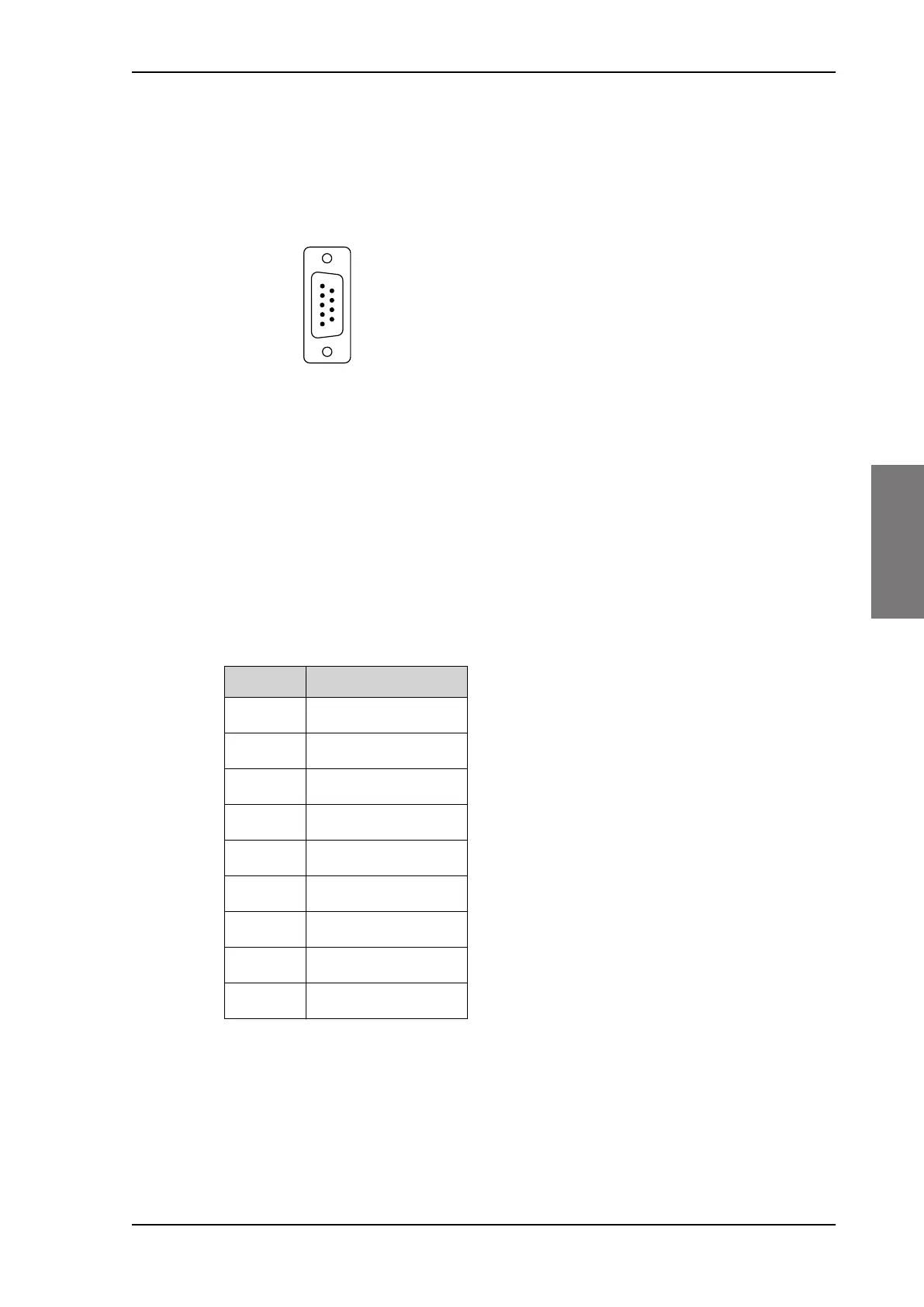

Figure 4-7: 2-Wire Cradle connector

(DB9M). View: Solder side

9LHZ6ROGHUVLGH

'%0DOH









Pin Function

1 Auxiliary Tip

2 Auxiliary Ring

3 Shield

4 Not connected

5 Not connected

6 Not connected

7 Not connected

8 Not connected

9 Not connected

Table 4-4: Pin-out for 9 pin Sub-D male

connector in TT-5622B 2-Wire Cradle
